Delivery Date:
03/17/2019
Department Name:
City of Harrisonburg Fire Department
Department City / State:
City of Harrisonburg, VA

Sutphen Corporation – HS #6234

WHEEL BASE: 195”

TRAVEL HEIGHT: 9′ – 8”

TRAVEL LENGTH: 32’ – 2”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

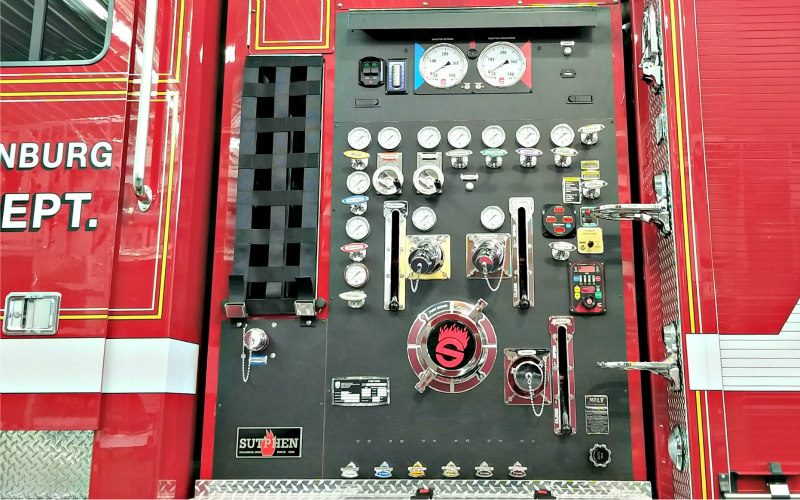

PUMP:                 Hale

  • QMAX-XS-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 3” Valve 3” Pipe to Right Rear, (1) 2 ½” Valve 2 ½” Pipe to Left Rear, (1) 2 ½” Valve 2 ½” Pip Left Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” to Front Bumper, (1) 3” Deck Gun
  • Monitor: TFT XFC-42 Crossfire w/ Safety Flow, Quad Stack Tips and Stream Shaper
  • Speedlays: (2) 1 ½” w/ Lift Out Tray
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 233 cu. ft. Total Compartment Space
  • Duo-Safety 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
  • Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper Extension
  • 10KW Harrison Generator
  • (1) Hannay Electric Cord Reel, 150’
  • Rear Backup Camera
  • Federal Q2B Siren
  • FRC Spectra Max Brow Light 12V
  • Whelen Freedom IV 12 Module 72” LED Lightbar
  • Whelen Fairfax Series 4500 Lightbar
  • Will-Burt NS2.3 with Maxs Scene Lights Recessed in Hosebed
