Delivery Date:
04/24/2020
Department Name:
El Reno Fire Department
Department City / State:
El Reno, OK

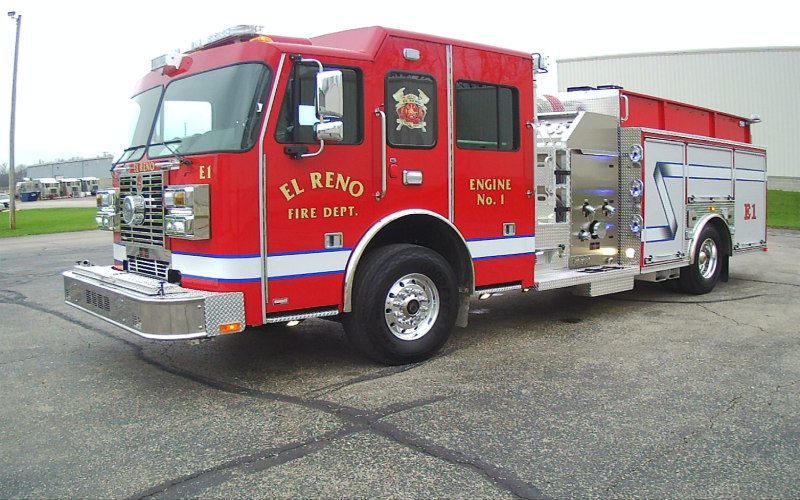

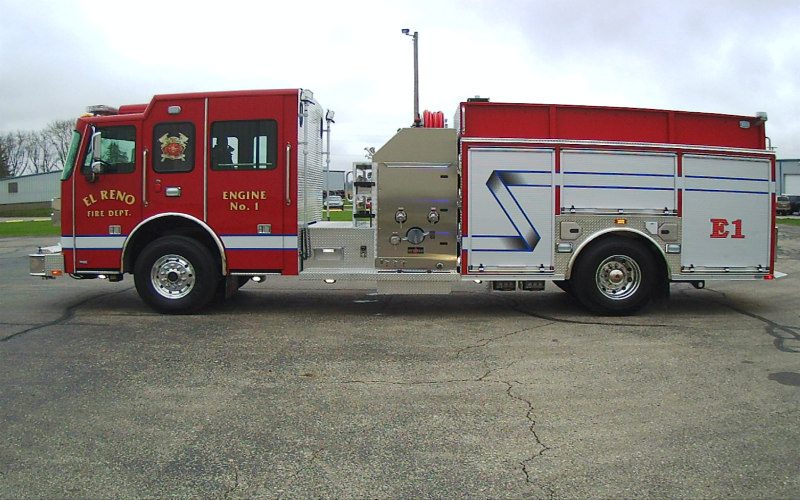

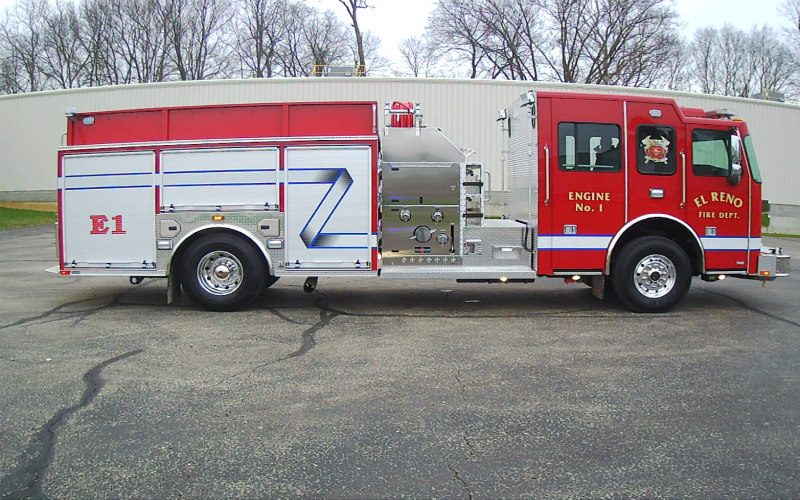

Sutphen Corporation – HS #6535

Dealer – Heartland Fire Trucks

WHEELBASE: 215”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33’ – 11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 19,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivel
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: Akron w/ Flush

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • 222 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & 14’ Roof & 10’ Folding)
  • Fully Enclosed Ladder Chute
  • Body: G2-Alum 40/51, Lad Chute

ADDITIONAL EQUIPMENT:

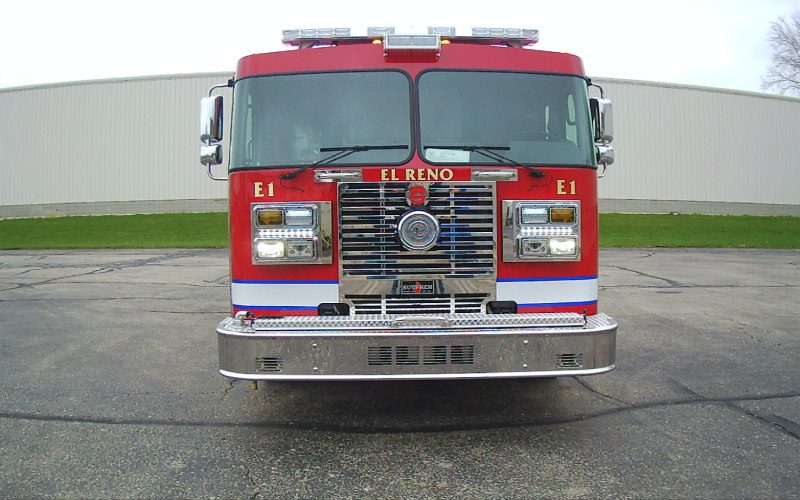

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • 4 Bottle Compartments
  • Whelen PFH2 LED Brow Light
  • Whelen M6 Scene Lights
  • Whelen Freedom IV LED Lightbar
  • Whelen PFH2 12V Telescopic Lights

Whelen L31 LED Red Beacon Lights
