Delivery Date:
10/28/2020
Department Name:
Daytona Beach Shores Public Safety
Department City / State:
Daytona Beach Shores, FL

Sutphen Corporation – HS #6683

Dealer – South Florida Emergency Vehicles

WHEELBASE: 207”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33’ – 8”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

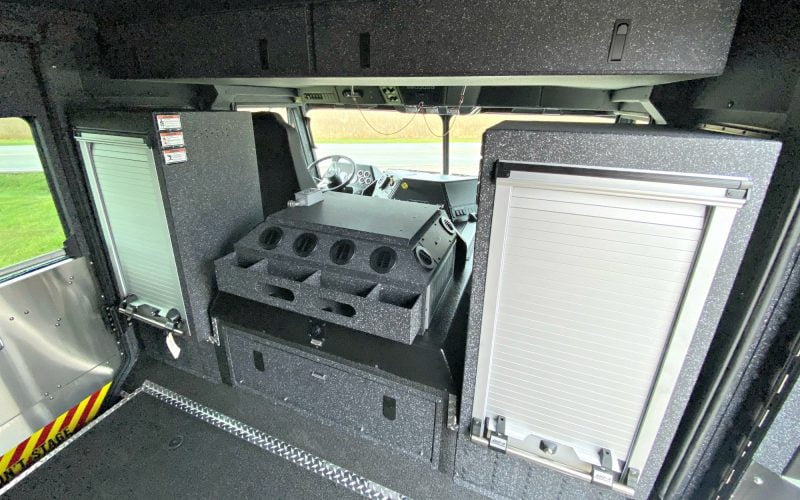

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails, Domex (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • DSD-1500 TM, Pump Module
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 750-Gallon Water Tank

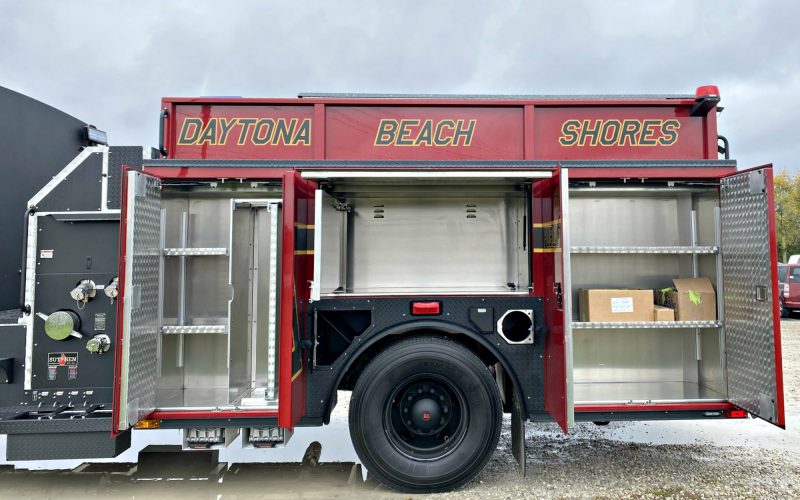

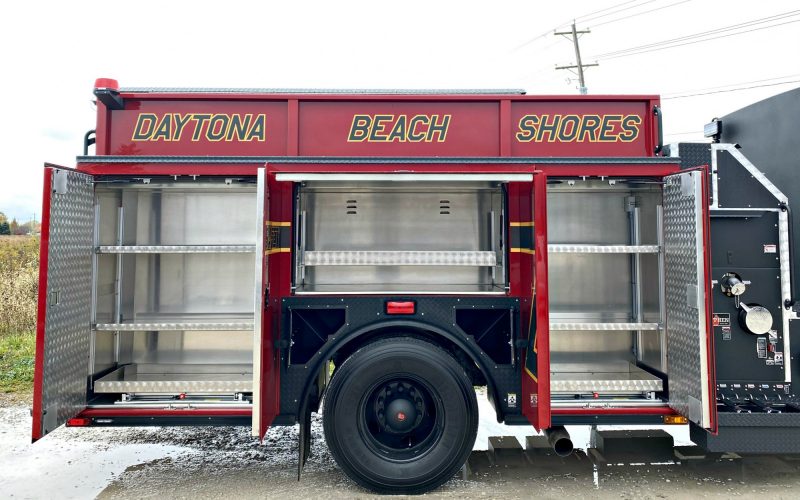

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Doors
  • 246 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute
  • Body: G9-Alum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade 360 Camera
  • Air Bottle Storage (7)
  • FRC Spectra Brow Light
  • FRC Spectra 15K Lumens Scene Lights
  • FRC Spectra Telescopic Lights
  • Whelen Freedom LED Lightbar
  • Whelen LED Traffic Advisor
