Delivery Date:
09/18/2020
Department Name:

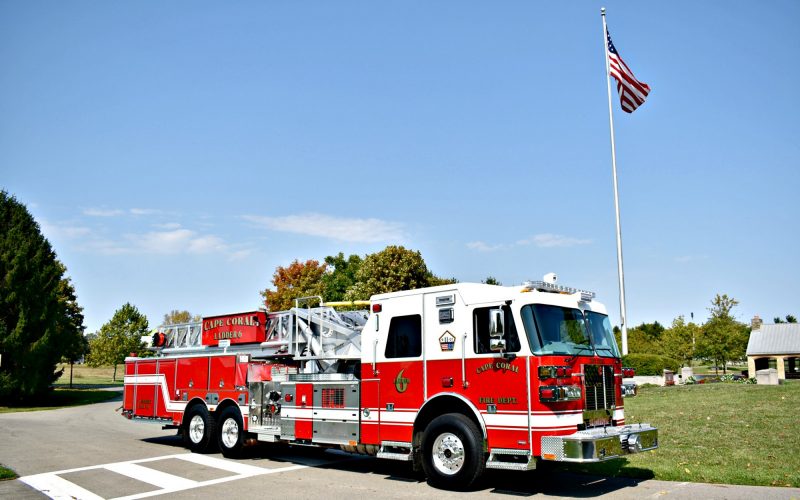

Cape Coral Fire Department
Department City / State:
Cape Coral, FL
Truck Type:

Sutphen Corporation – HS #6711

Dealer – South Florida Emergency Vehicles

WHEELBASE: 253”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 45’ – 5 ¾”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 48,000 lbs Tandem
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP: Hale

  • QMAX-2000 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel and (1) 2 ½” Valve/Piping/Swivel
  • 400-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: FoamPro 2002, 5.0 GPM

BODY:                  Sutphen

  • ROM Roll-Up and Hinged Compartment Doors
  • Over 265 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Compliment (115’: 14’; (2) 16’; 24’ 2-Section; 35’ 3-Section and 10’ F
  • Body: SL100-2 – Left High / Right High Ladders Enclosed

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Front Bumper Mount
  • 10KW Harrison Generator
  • Hannay Electric Cord Reel, 150’ (1)
  • Camera System: Brigade 360
  • Intercom System: FRC ACT 3-Station
  • Pike Poles Storage Tubes (6)
  • Go-Light Model 2020
  • Whelen Freedom IV Lightbar
  • Whelen M9V2 LED Scene/Warning Lights
  • FRC Spectra Max 12V LED Brow Light
  • FRC Spectra 20K 12V LED
  • FireTech Ladder Lighting

MONITOR:

  • Akron 3480 Stream Master2 Elec RF w/ 5178 Nozzle
