Delivery Date:
06/24/2020
Department Name:
City of Lebanon Fire Department
Department City / State:
Lebanon, TN

Sutphen Corporation – HS #6449

Dealer – Southeast Fire Equipment

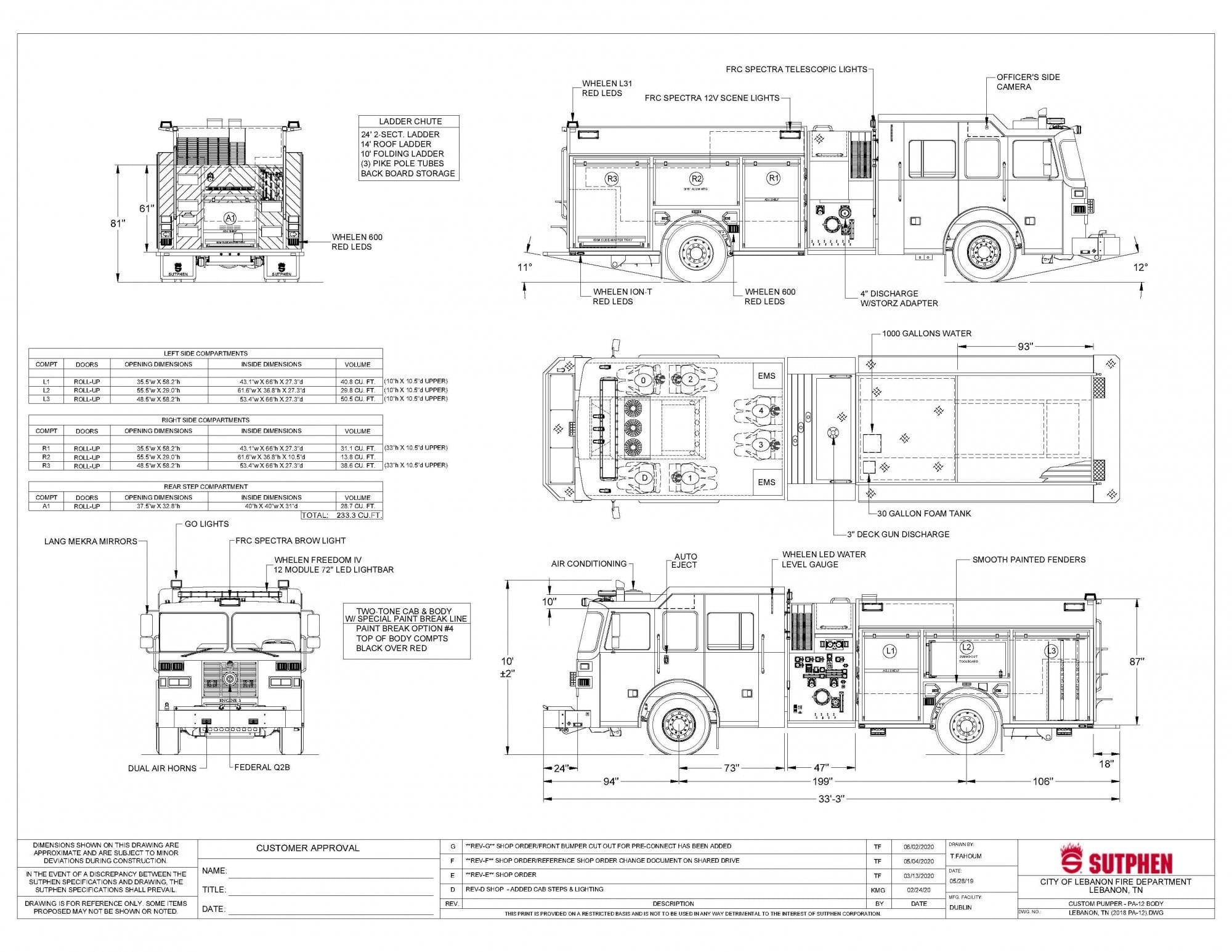

WHEELBASE: 199”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 33’ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½” w/ 2 ½” Swivel, (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Akron, 95 GPM

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • 3 cu. ft. Compartment Space
  • Alco-Lite Ladder Package (24’ 2-Section & 14’ Roof & 10’ Folding)
  • Enclosed ladder chute
  • Body: PA – 12 RES 43/53

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel
  • Federal Q2B Siren, Grille Mount
  • 4 Bottle Compartments
  • Voyager 3 Camera System
  • FRC Spectra Brow Light
  • Whelen Freedom IV LED Lightbar
  • FRC Spectra 12V Scene Lights
  • Whelen Ion – T LED Red Lights
  • Whelen 600 LED Red Lights
  • Whelen L31 LED Red Lights
  • FRC Spectra Telescopic Lights
