Department Name:
Coweta County Fire Department
Department City / State:
Newnan, GA

WHEELBASE: 208”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 33’ – 11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Front Left, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 1 ½” w/ Poly Lift-out Tray
  • Crosslay: (1) 1 ½”
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Akron, 95 GPM

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • 283 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (24’ 2-Section & 14’ Roof & 10’ Folding)
  • Enclosed ladder chute

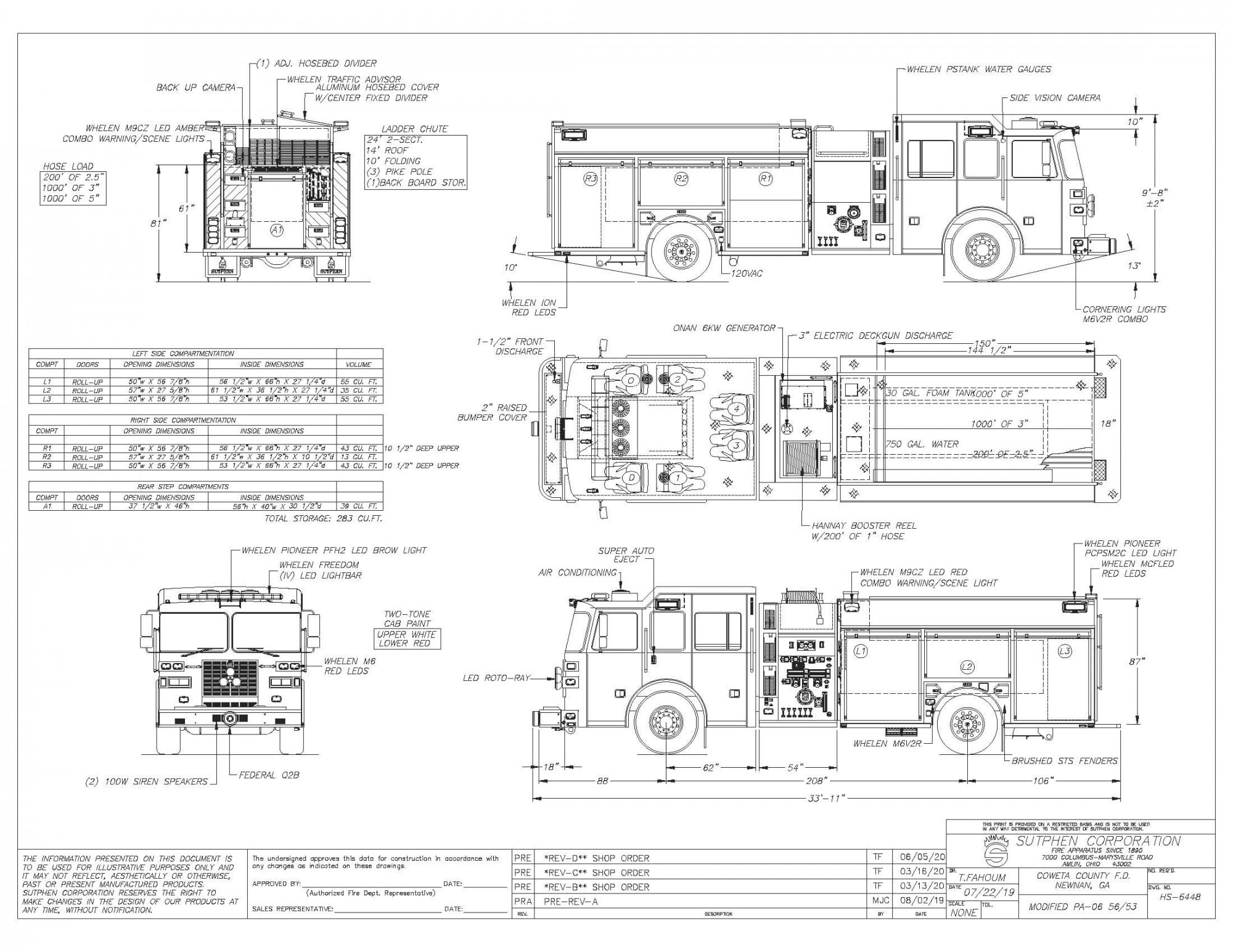

  • Body: Modified PA – 06 RES 56/53

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel
  • Federal Q2B Siren, Grille Mount
  • 4 Bottle Compartments
  • Voyager 2 Camera System
  • Onan 6KW Generator
  • Whelen Pioneer PFH2 LED Brow Light
  • Whelen Freedom IV LED Lightbar
  • Whelen M9CZ LED Red Scene Lights
  • Whelen Ion LED Red Lights
  • Whelen M6 Led Red Lights
