Delivery Date:
04/21/2022
Department Name:

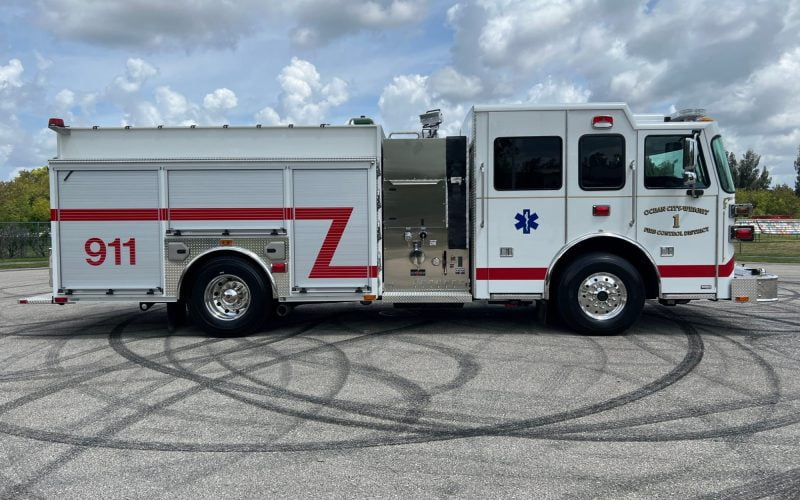

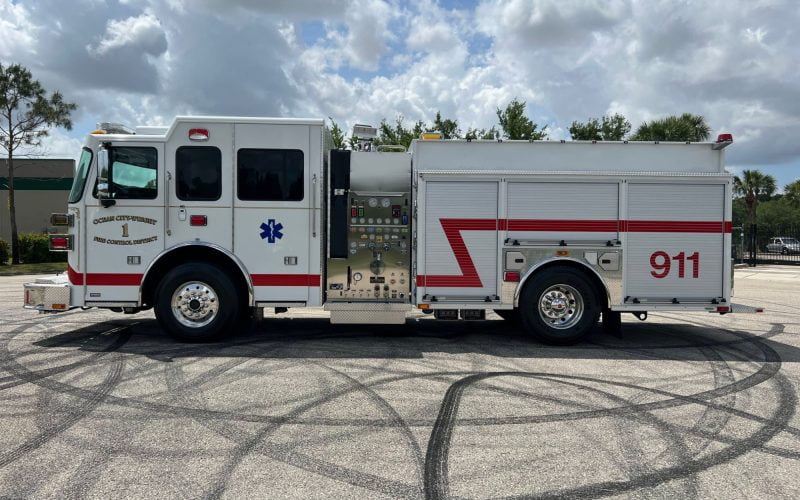

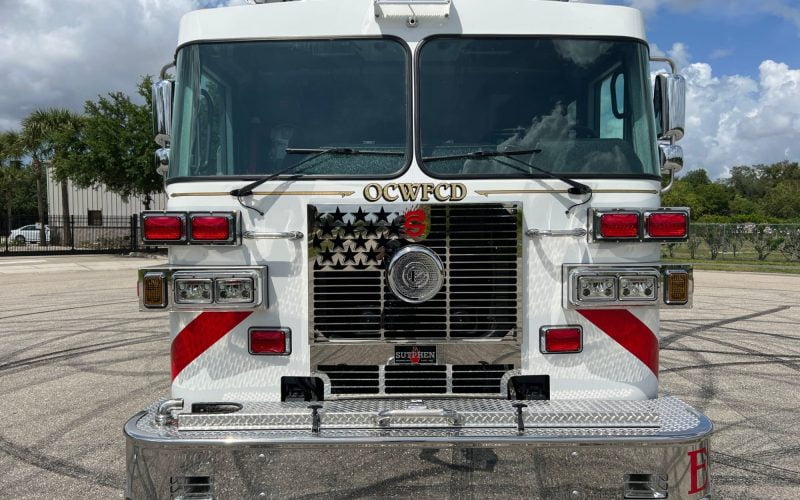

Ocean City Wright Fire District
Department City / State:
Fort Walton Beach, FL

Sutphen Corporation – HS #6893

Dealer – South Florida Emergency Vehicles

WHEELBASE: 185 ½”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 31’ – 7”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                  Hale

  • XS QMAX – 1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½” Crosslays & Speedlays, (2) 2” Crosslay w/ Swivels & Poly Lift-Out Trays
  • 750-Gallon Water Tank
  • 20-Gallon Class A Foam Tank
  • 30-Gallon Class B Foam Tank
  • Foam System Class A: Elkhart w/ Flush
  • Foam System Class B: Elkhart Foam Supply with Flush

BODY:                   Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors, Satin Finish
  • Over 233 cu ft. Total Compartment Space
  • Alco-Lite Pel-24 Ladders: (1) 24’ 2-section, (1) PRL-14 14’ Roof, (1) 10’ Folding
  • Body: S2 – Alum 43/53 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom IV 14 Module 72” Led Lightbar
  • Whelen PFP2 12V LED Brow Light
  • Whelen PFP2 12V LED Tele Light
  • Camera System: Brigade 360
