Delivery Date:
10/22/2019
Department Name:

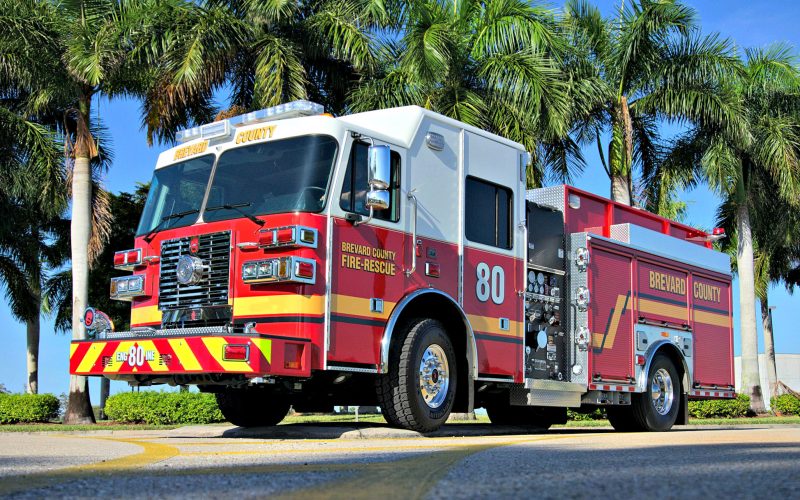

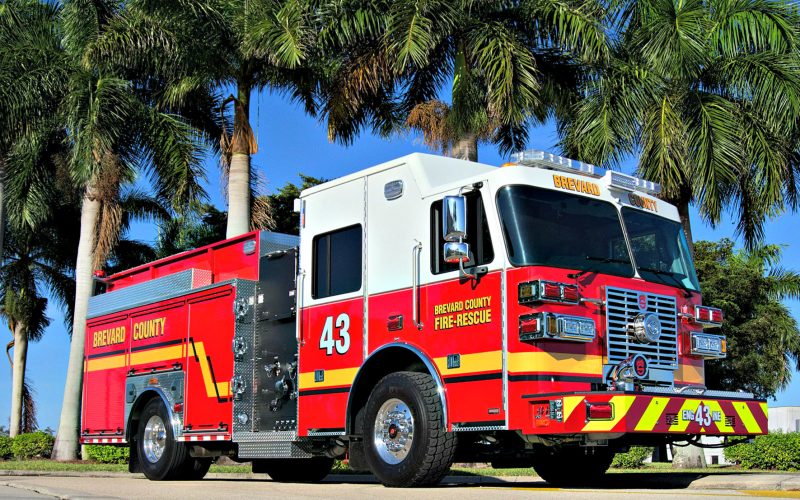

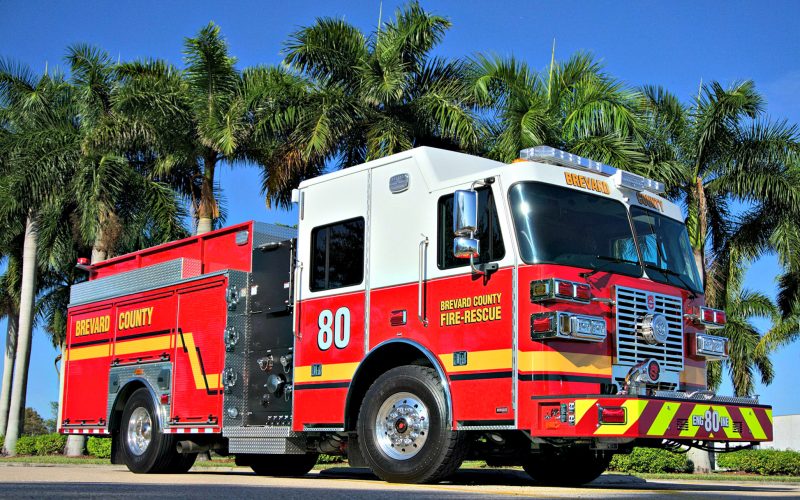

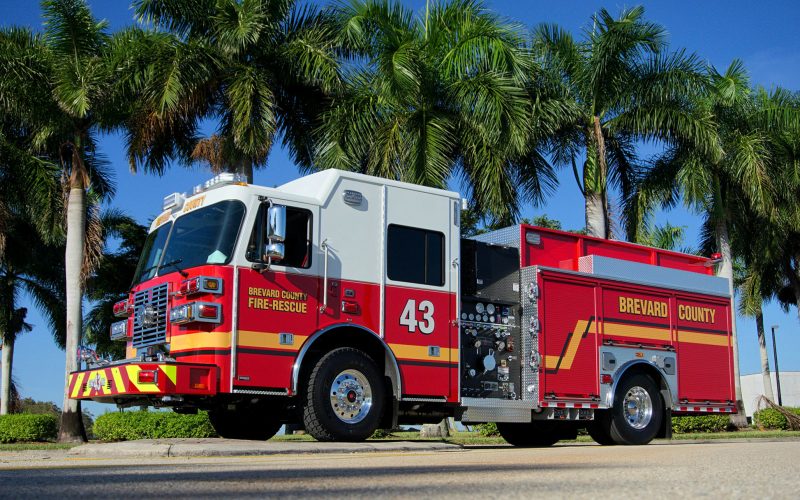

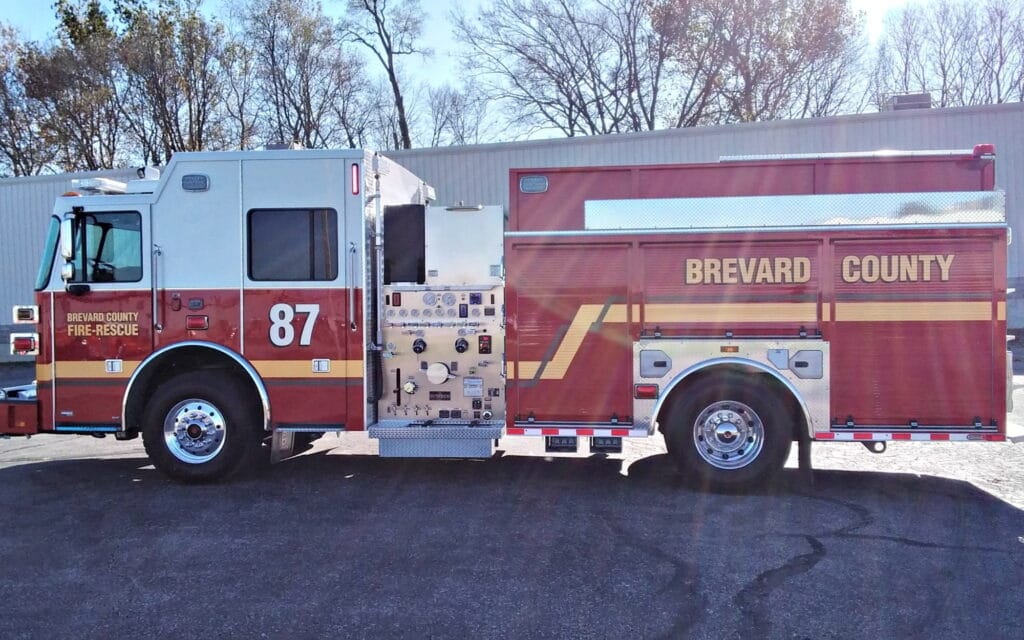

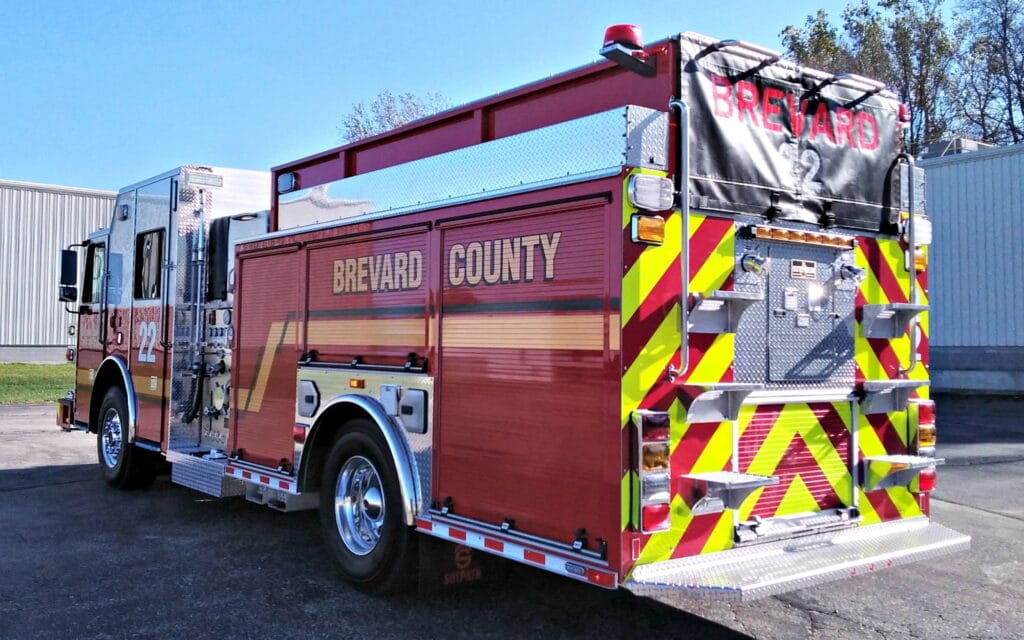

Brevard County Fire Rescue
Department City / State:
Rockledge, FL

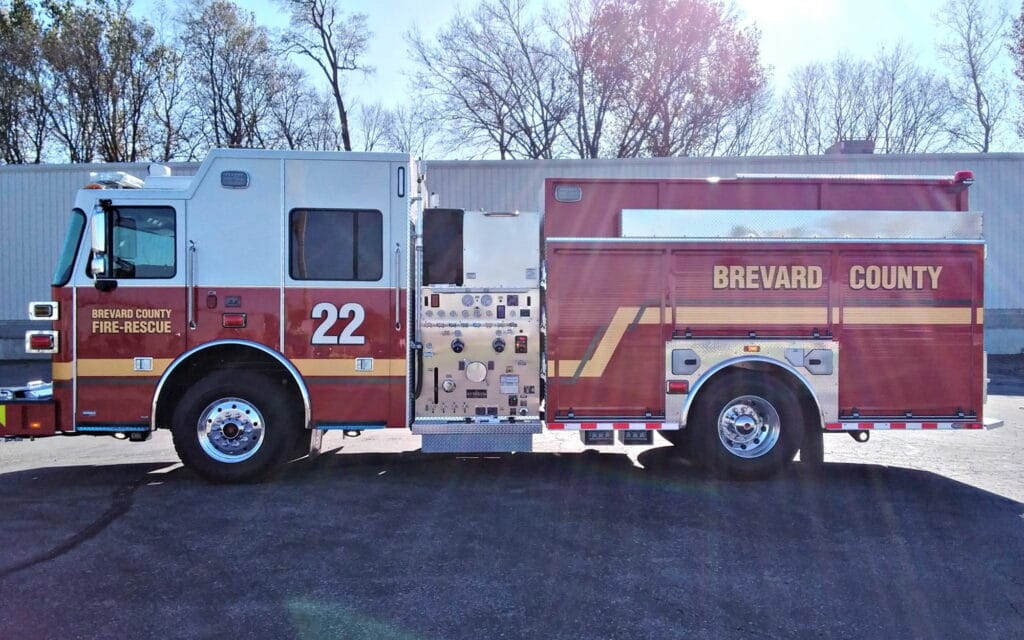

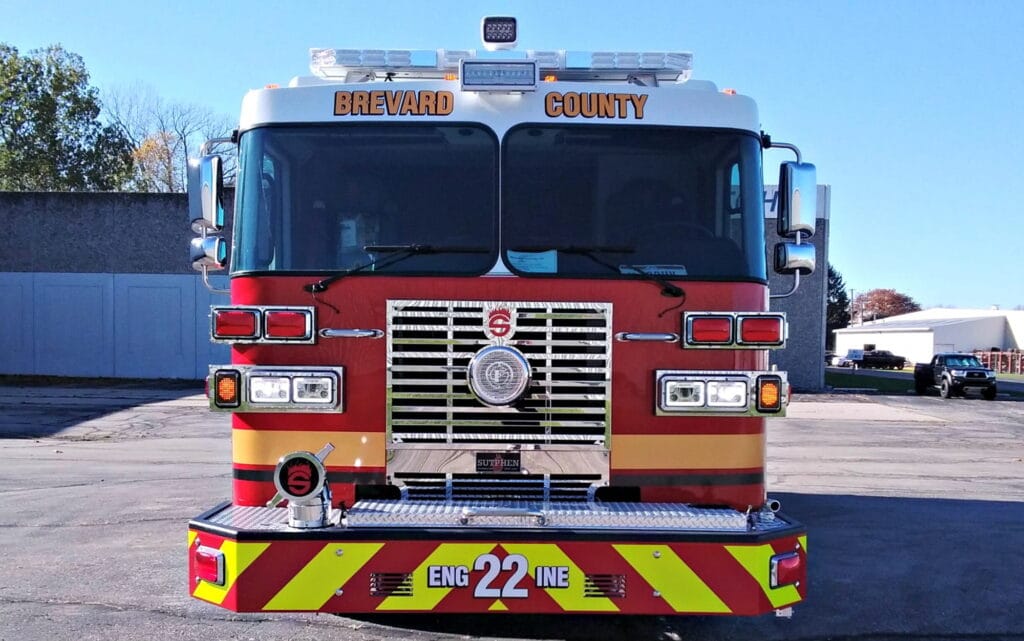

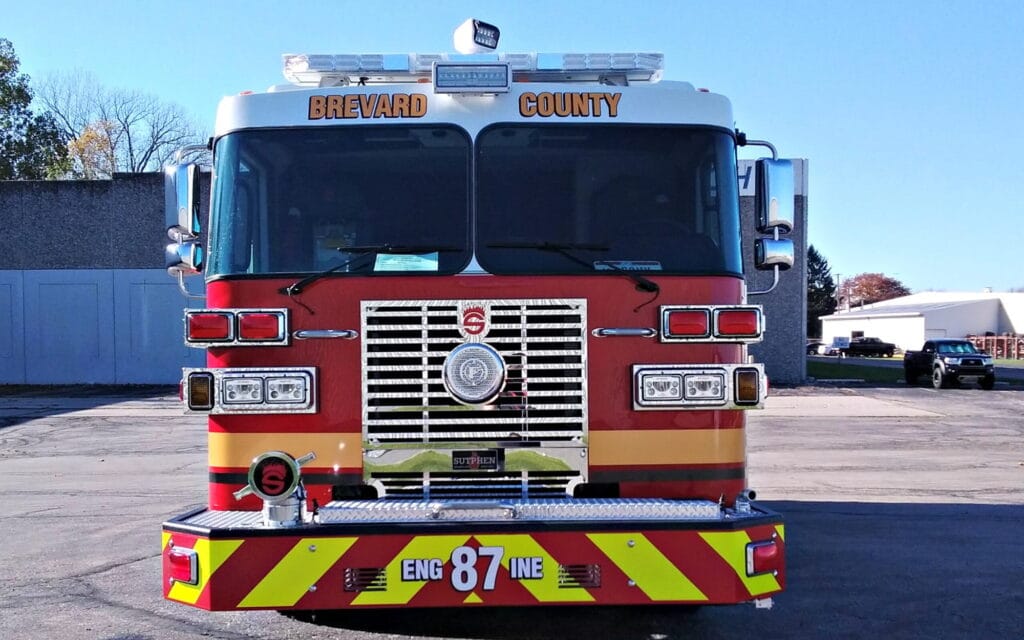

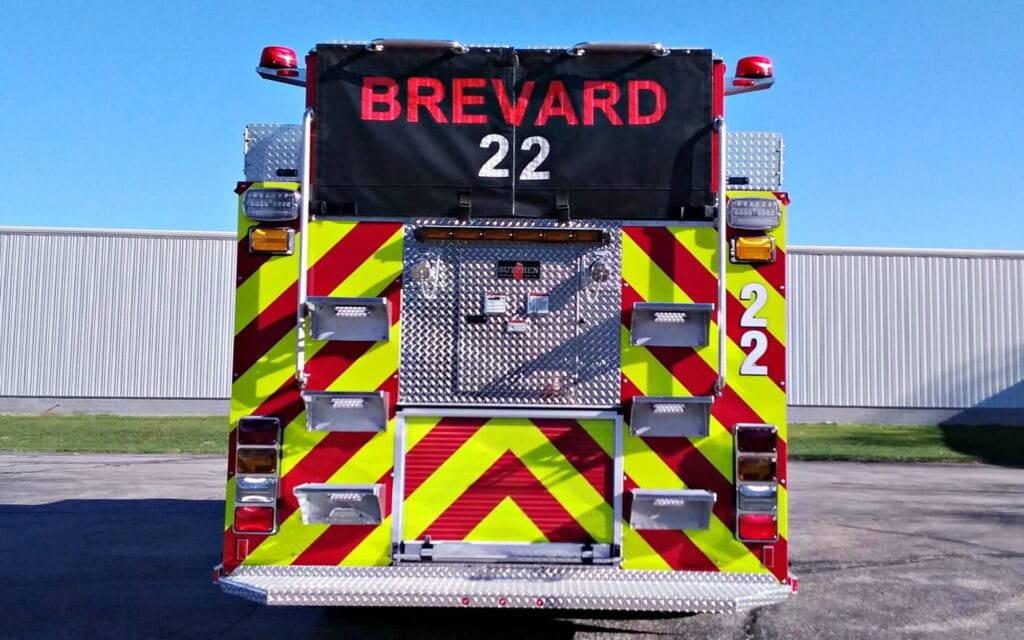

Sutphen Corporation – HS #6468-69

Dealer – South Florida Emergency Vehicles

WHEEL BASE: 188”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 32’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 15” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 1000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • FoamPro 2002, 5 GPM
  • Crosslay: (2) 2” w/ 1 ½” Swivel

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 246 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute
  • Body: G9 – Ladders Through the Tank

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel, Painted Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Brigade 360 Camera System
  • FRC Spectra Brow Light
  • FRC Spectra Telescopic Lights
  • Whelen LED Traffic Advisor
  • Whelen Freedom LED Lightbar
  • Whelen M9 Scene Lights
