Delivery Date:
10/24/2019
Department Name:
Redwood Volunteer Fire Department
Department City / State:
Redwood, NY

Sutphen Corporation – HS #6376

Dealer – Vander Molen Fire Apparatus Sales and Service

WHEEL BASE: 215”

TRAVEL HEIGHT: 9” – 10”

TRAVEL LENGTH: 34’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper Discharge, (1) 3” Deck Gun
  • Speedlays: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank

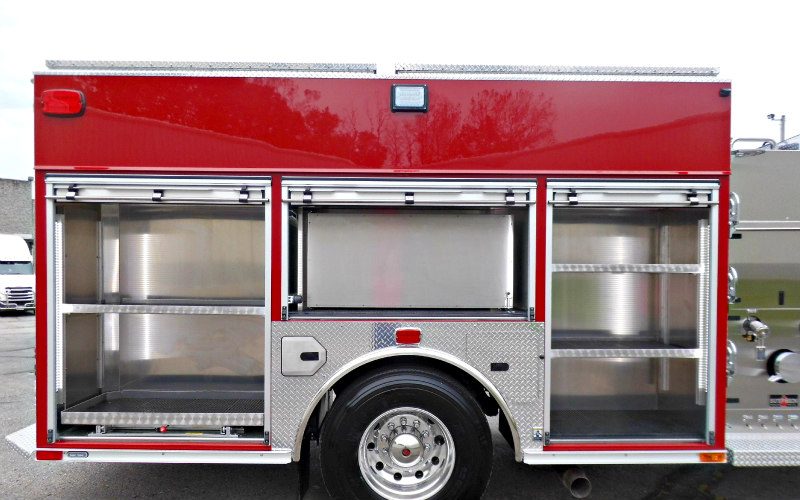

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Whelen Freedom LED Lightbar
  • FRC Spectra Browlight
  • FRC 900 LED Scene Lights
  • FRC, Inview 360 Camera System
  • FRC Spectra Telescopic Lights
  • Federal Q2B Siren Grille Mount
  • Triple Air Bottle Compartments (2)
