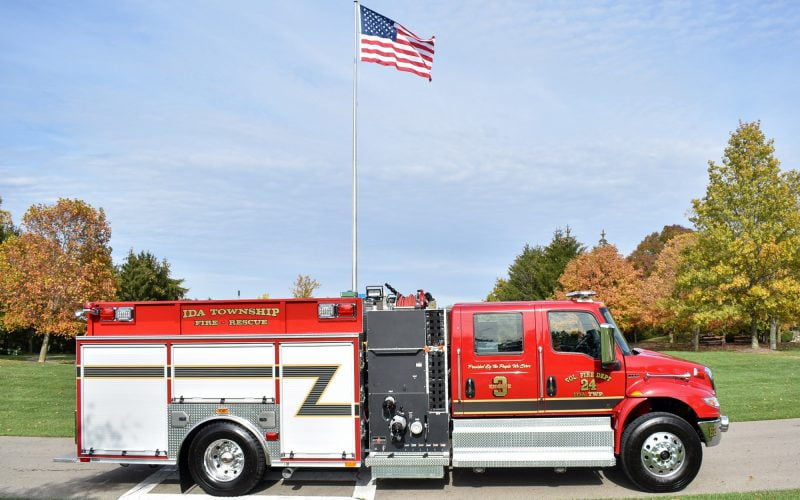

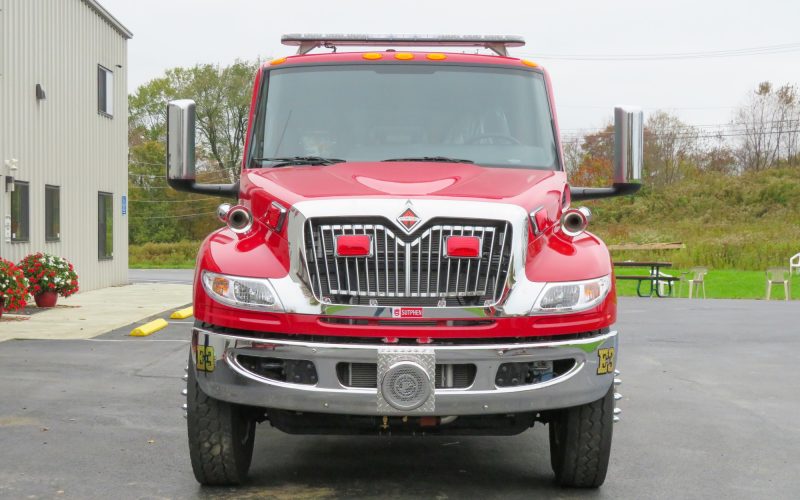

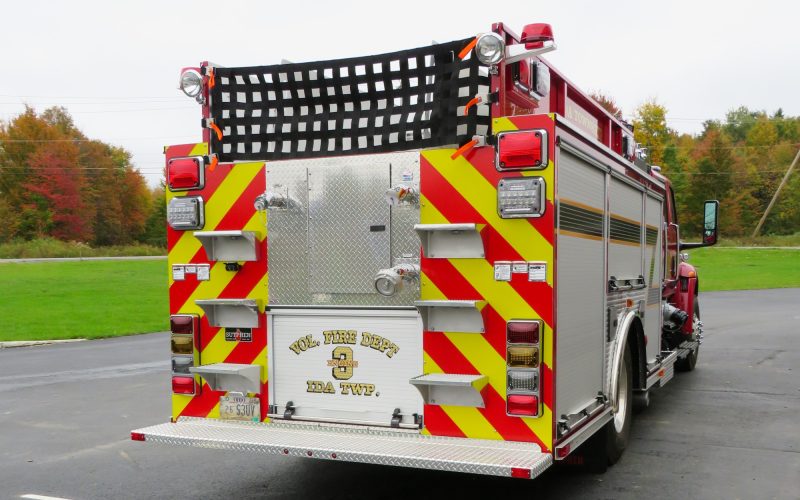

Sutphen Corporation – HS #6913
Dealer – Apollo Fire Equipment
WHEELBASE: 236”
TRAVEL HEIGHT: 9’ – 3”
TRAVEL LENGTH: 31’ – 9”
CHASSIS: International MV607 SBA – 4 Door
- Four-Door, Four-Person Cab
- Front Axle and Suspension 14,600 lbs
- Rear Axle and Suspension 26,000 lbs
- Engine: Cummins L 9 350HP
- Alternator: For Commercial Chassis
- Transmission: EVS3000
PUMP: Hale
- XS – QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlay: (2) 2” w/ Swivels & Poly Lift-Out Trays
- 1,000-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System, Hale SmartFoam 2.1A
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 266 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Rood & 10’ Folding
- Body: C9 – 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- Federal Q2B Siren, Front Bumper Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Triple Air Bottle Compartments (2)
- Whelen 62” Justice NFPA Lightbar
- Whelen 600 Warning Lights
- Whelen 900 Warning Lights
- FireTech Guardian
- Whelen L31 Red LED Beacons
