Delivery Date:
05/08/2020
Department Name:

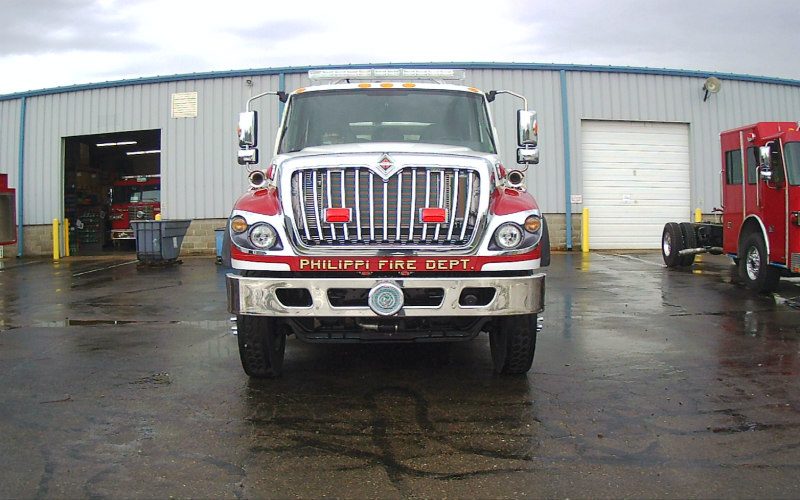

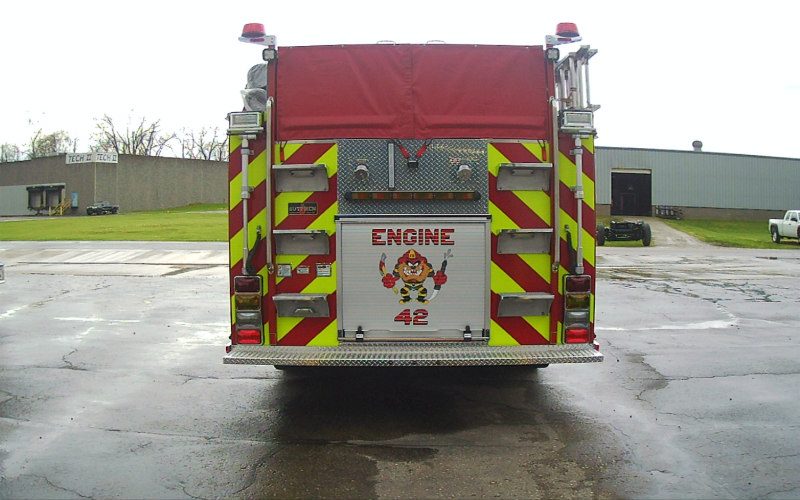

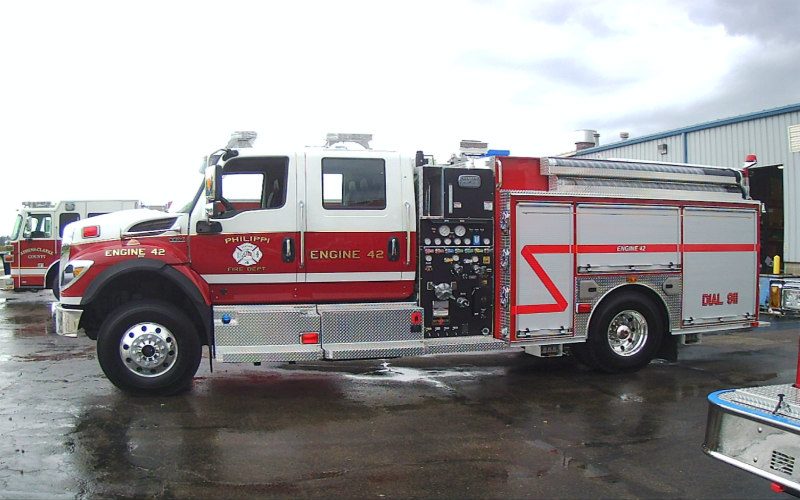

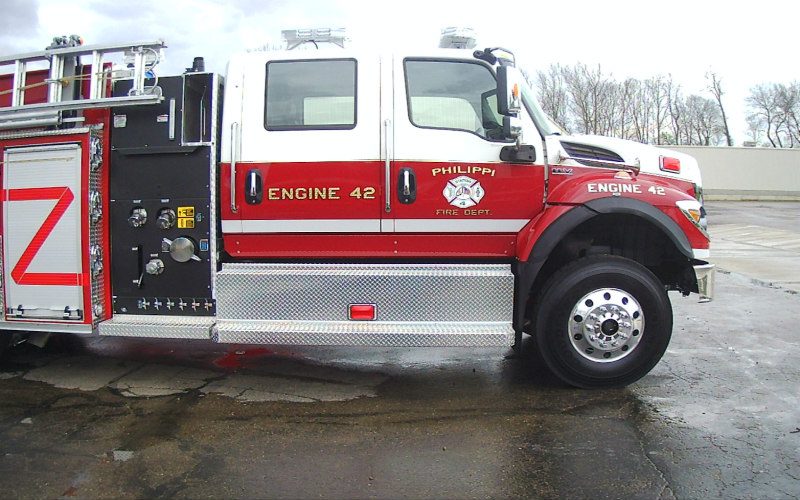

Philippi Volunteer Fire Department
Department City / State:
Philippi, WV

WHEELBASE: 212”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 29’ – 8”

CHASSIS:             7500/HV607

  • Four-Door, Five-Person Cab
  • Front Axle and Suspension 14,000 lbs
  • Rear Axle and Suspension 26,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Transmission: Allison, EVS3000

PUMP:                 Hale

  • DSD-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • 220 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & 14’ Roof & 10’ Folding)
  • Body: C4-30/53, Elec Lad Rack

ADDITIONAL EQUIPMENT:

  • Federal Q2B Siren, Grille Mount
  • FRC Inview Trueview Camera System
  • 4 Bottle Compartments
  • Whelen M9 Scene Lights
  • Whelen Freedom 12 LED Lightbar
  • Whelen PFH1 Telescopic Lights
  • Whelen L31 LED Red Lights
  • Whelen 600 LED Red Lights
  • Firetech Work Lights
  • Whelen 600 Super LED Red Lights
