Delivery Date:
06/14/2019
Department Name:

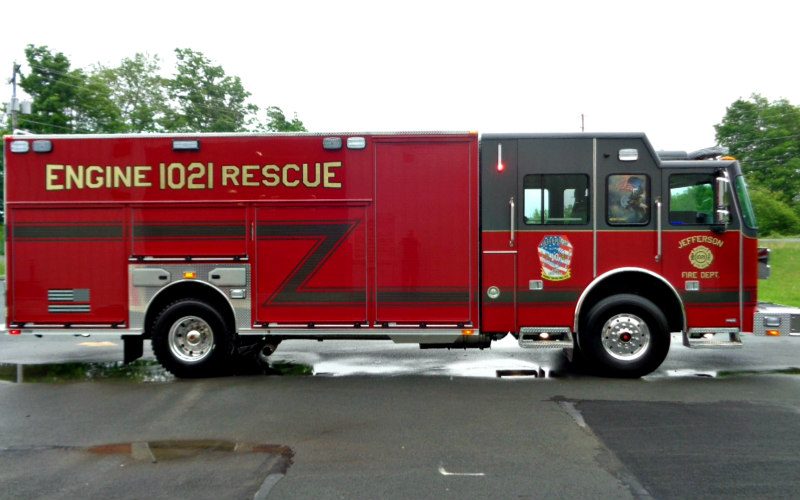

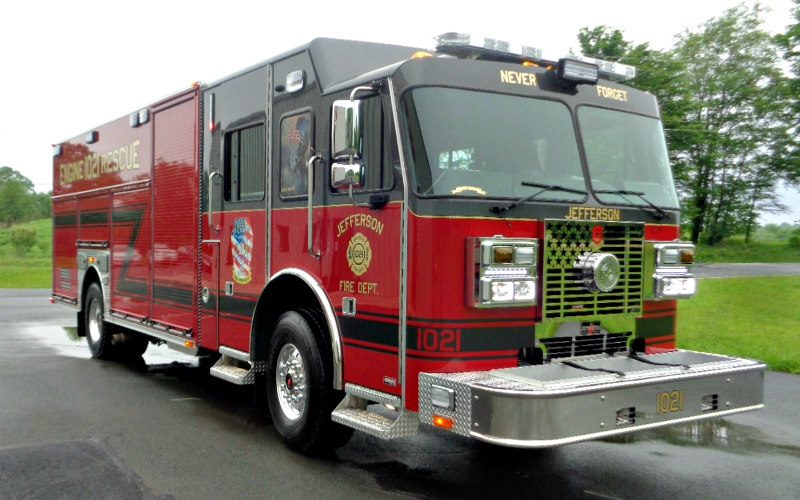

Jefferson Fire Department
Department City / State:
Jefferson, NY

Sutphen Corporation – HS #6317

Dealer – Vander Molen Fire Apparatus Sales and Service

WHEEL BASE: 222”

TRAVEL HEIGHT: 10’ – 10”

TRAVEL LENGTH: 35’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 15” Raised Roof

  • Four-Door, Seven-Person Cab
  • 13” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 3” Pipe to Left Rear, (1) 2 ½” Front/Left Hosebed, (1) 1 ½” Front Bumper
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 50-Gallon Foam Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 498 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Camera System, Brigade, Two Camera
  • 10KW Harrison Generator
  • Hannay Electric Cord Reel, 175’ (2)
  • Whelen 72” Freedom Light Bar
  • Whelen 600 Warning Lights (6)
  • FR Spectra Brow Light
  • FR Spectra 240V Scene Lights
  • Command Light Knight Series
  • SCBA Bottle Storage (6)
