Delivery Date:
02/13/2020
Department Name:

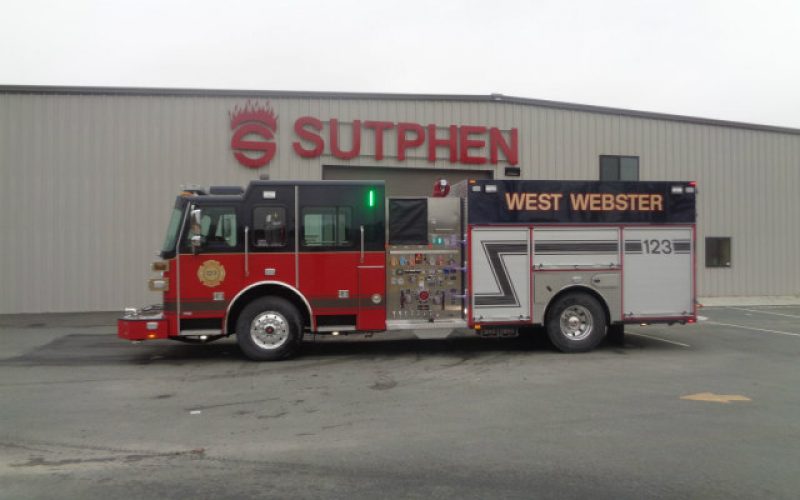

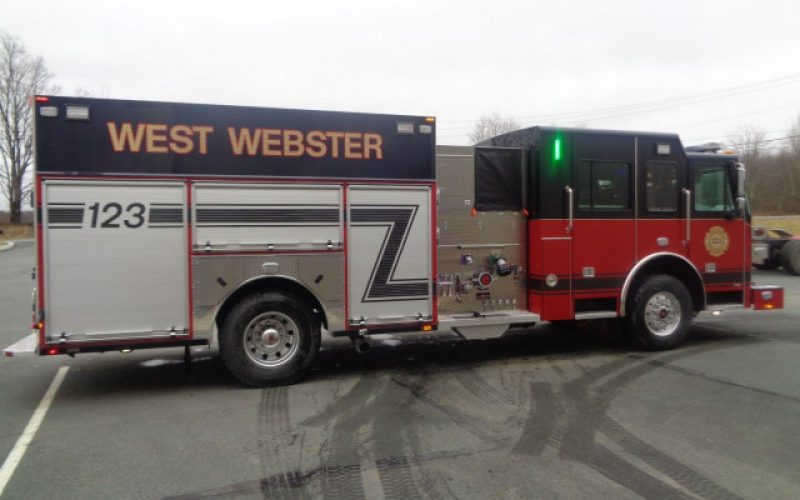

West Webster Fire Department, NY
Department City / State:
West Webster, NY

WHEEL BASE: 202”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 32’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Seven-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, 6” Suction Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 3” front/right of main hosebed, (1) 2” front/right hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 2” w/ 1 ½” Swivel, (1) 2.5” w/ swivel
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • FoamPro 2002, 5.0 GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 5 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chutes
  • Body: PA – 12 RES 43/53, w/ Ladder Chute

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel, Bumper
  • Federal Q2B Siren, Grille Mount
  • Brigade Camera System
  • Integrated PCH2 Brow Light
  • Whelen 72” Freedom Lightbar
  • Whelen PCPSM1B Scene Lights
