Delivery Date:
02/12/2020
Department Name:

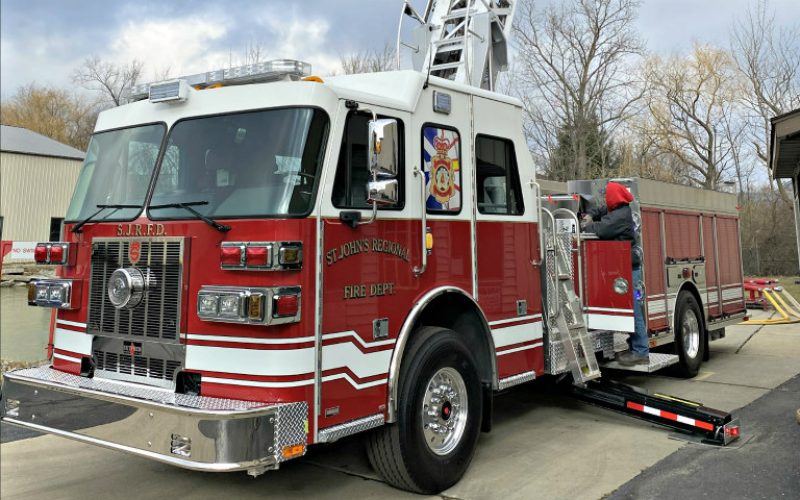

St. John's Regional Fire Department, CA
Department City / State:
St. John's, NL, CA
Truck Type:

WHEEL BASE: 221”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 42’ – 5 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, 6” Suction Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • 470-Gallon Water Tank
  • 30-Gallon Foam Tank
  • FoamPro 2002, 5.0 GPM

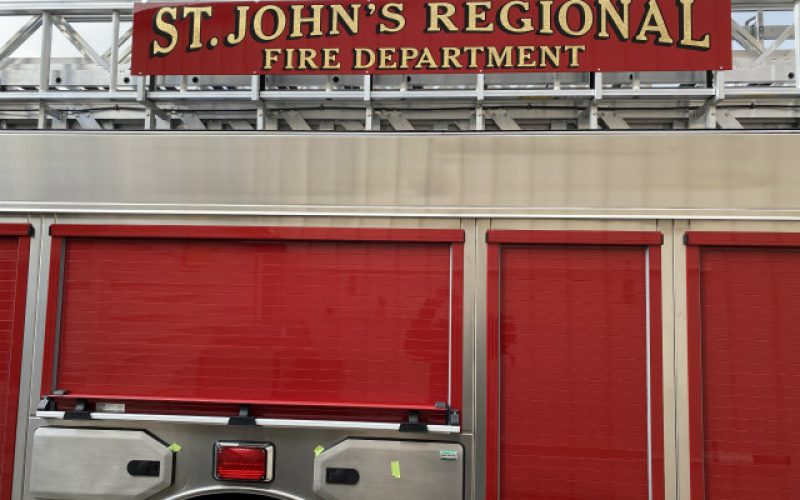

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 75 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (MT 98’ : 16R’, & 10’F. (2) 22’ Little Giant Defenders, (1) 28’ 3-section)
  • Ladder Chutes
  • Body: SAA-4, Left high / right intermed / trans

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Rearview camera
  • FRC Spectra 12V LED Brow Light
  • Whelen Freedom 4 Lightbar
  • FRC Spectra 240V LED Telescoping Scene Lights
  • FRC Spectra 900 Scene Lights
