Delivery Date:
06/21/2019
Department Name:
Stratford Fire Department
Department City / State:
Stratford, CT

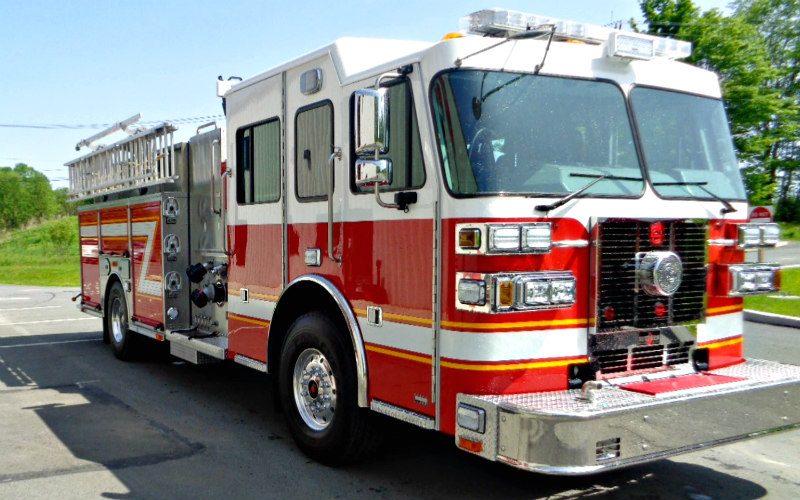

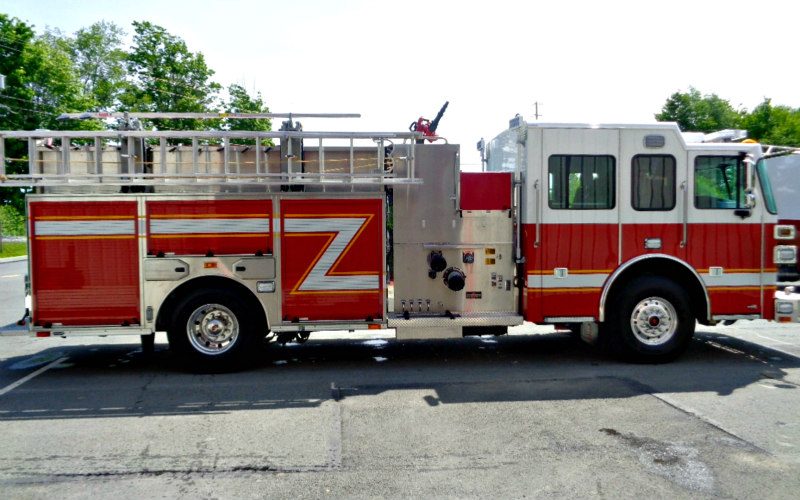

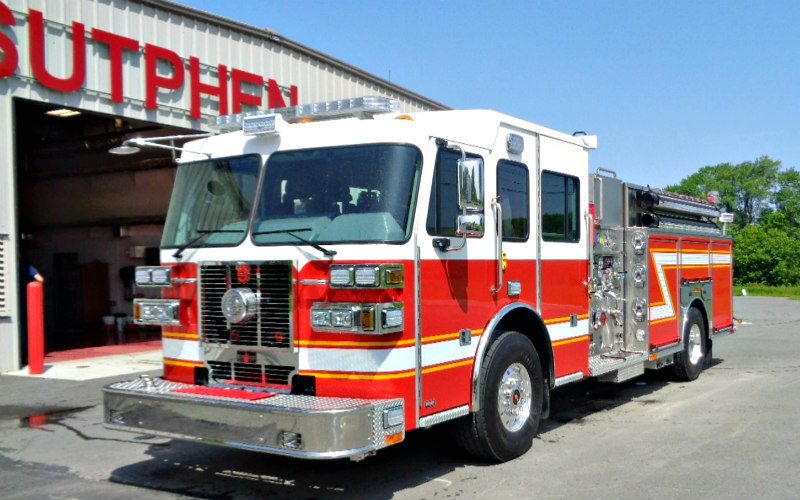

Sutphen Corporation – HS #6340

WHEEL BASE: 208”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 32’ – 8”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Elkhart Foam Supply System

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • ROM Roll-Up Compartment Doors
  • Over 237 cu. ft. Total Compartment Space
  • Duo-Safety (1200A 28’ 2-Section & 775A 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Camera System, Safety Vision SV-CLCD0-70
  • 10KW Harrison Generator
  • Whelen 72” Freedom Lightbar
  • Whelen M6 Scene Lights
  • Whelen 47” Traffic Advisor
  • FR Spectra Browlight
  • FR Spectra Tele Lights (4)
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Pike Pole Storage Tubes (3)
