Delivery Date:
10/08/2020
Department Name:
Douglas Fire Department
Department City / State:
Douglas, GA

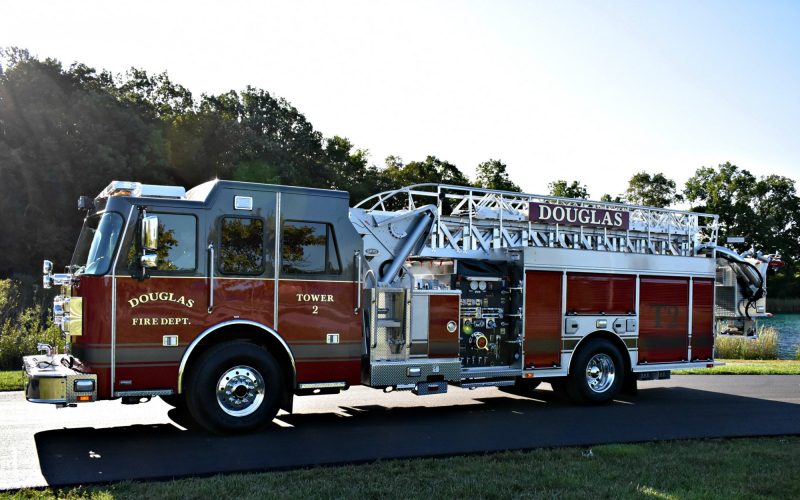

Truck Type:

Sutphen Corporation – HS #6729

Dealer – Williams Fire Apparatus

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 42’ – 11 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • Over 190 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (85’: 16’ Roof, 24’ 2-Section, 35’ 3-Section & 10’ Folding)
  • Body: SAA-3, Left High/Right Intermed

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Voyager 2
  • Generator: Smart Power 6KW HYD
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 175’ (1)
  • Roto-Ray Warning Light
  • Whelen Freedom 4 Lightbar
  • FRC Spectra LED Brow Light
  • FRC Spectra 900 Scene Light
  • FRC Spectra 120V 20K LED Scene Light
  • FireTech 12V LED Rear Work Lights

MONITORS:

  • Monitor: (2) Elkhart #293-6A w/ CSW Nozzle
