Delivery Date:
08/20/2020
Department Name:
Walhonding Fire District
Department City / State:
Warsaw, OH

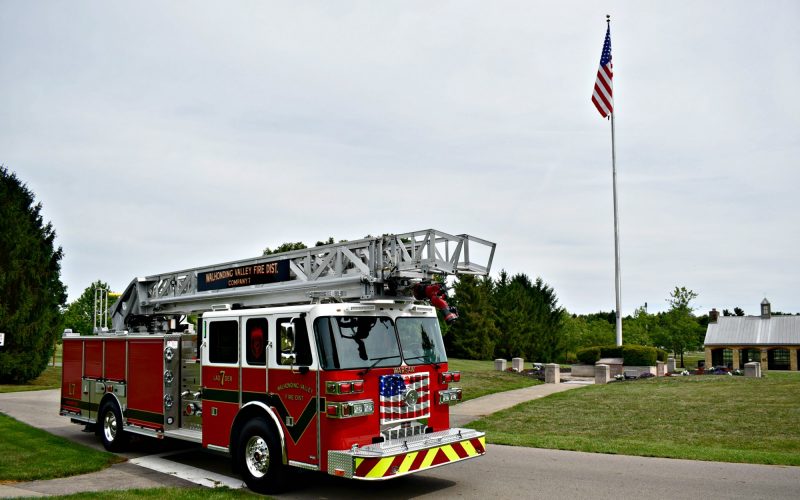

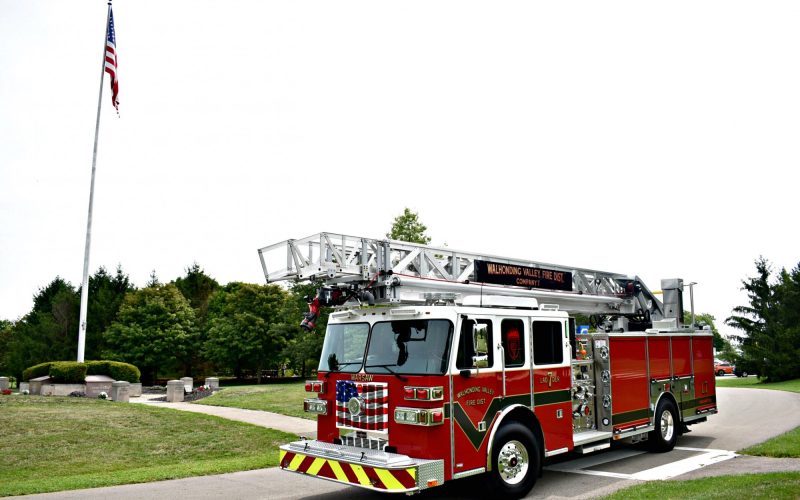

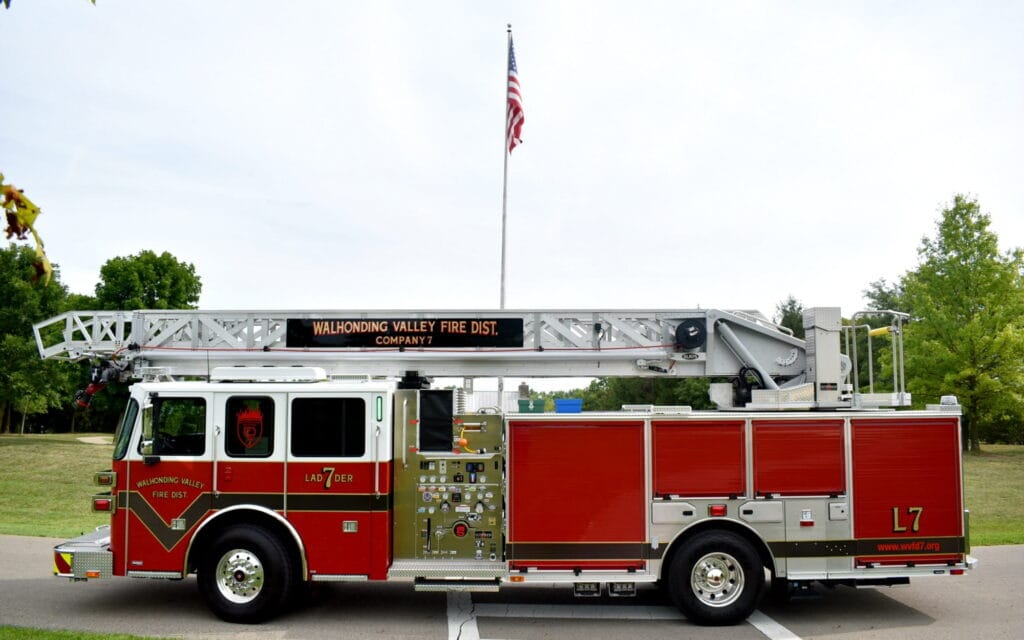

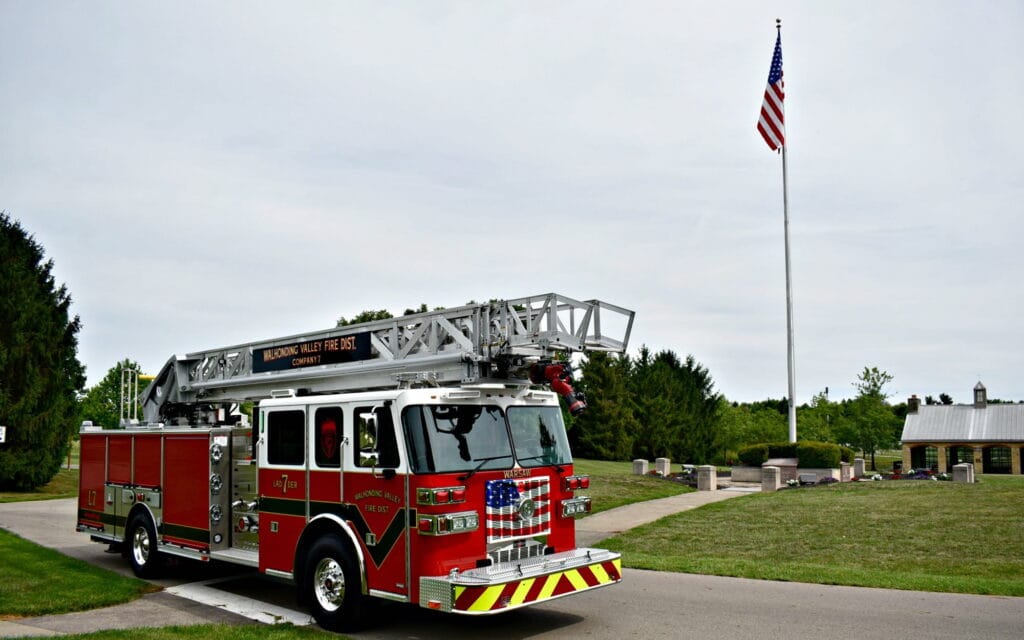

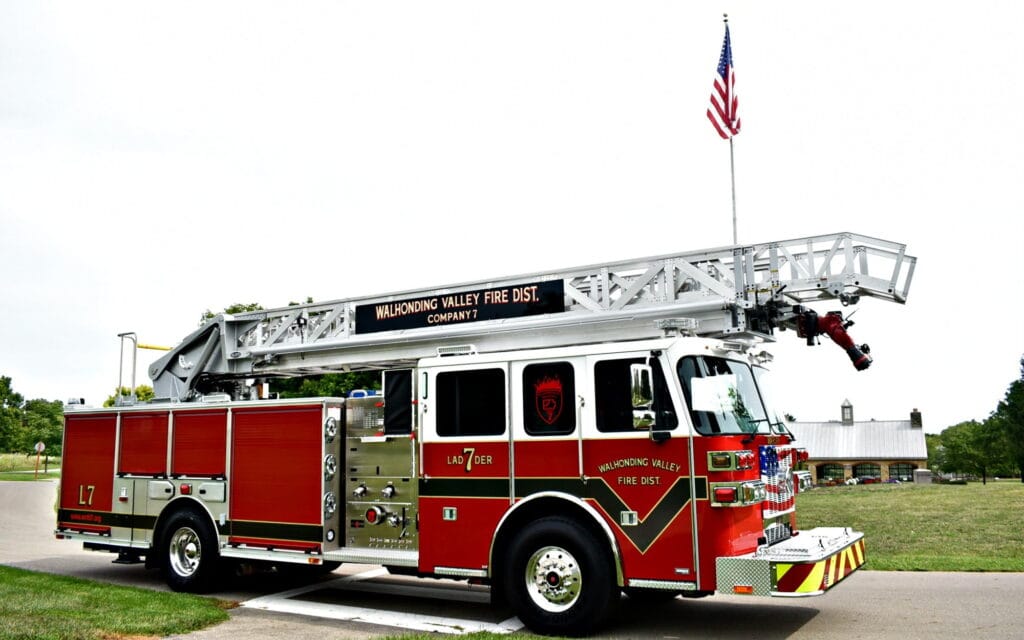

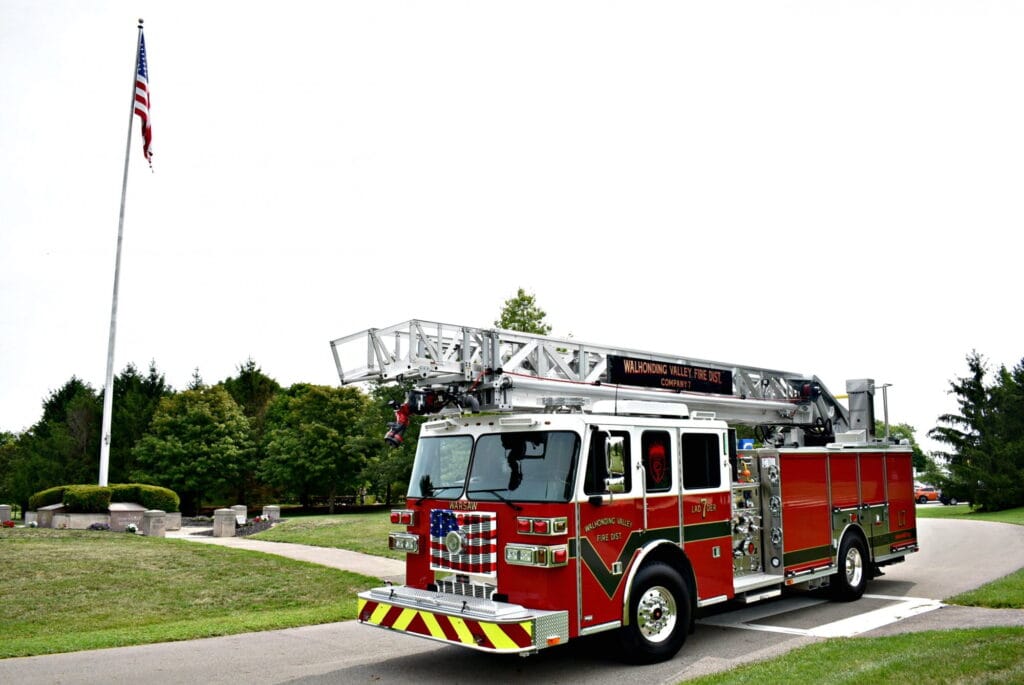

Truck Type:

Sutphen Corporation – HS #6299

Dealer – Heritage Fire Equipment

WHEELBASE: 206”

TRAVEL HEIGHT: 11’ – 10 ½”

TRAVEL LENGTH: 37′ – 10 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62”cab with flat roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension: 23,000 lbs.
  • Rear Axle and Suspension: 35,000 lbs.
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-1500 GPM, 6” Suction Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel
  • Monitor: Akron 3480 Stream Master2 Electric RF w/ 5178 Nozzle
  • 30-Gallon Foam Tank
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • ROM Roll-Up Compartment Doors
  • Alco-Lite Ladders (85’: 16R’, 24’ 2-Section, 35’ 3-Section & 10’ F)
  • 196 cu. ft. Total Compartment Space
  • Ladder Chute
  • Body SAA-RM1 Left High/ Right High

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • 6KW Smart Power Generator
  • Hannay Electric Cord Reel, 150’ (1)
  • Pike Pole Storage Tubes (3)
  • FireTech Minibrow 17 ½” 12V LED Combo Spot/Floor Brow Lights
  • FireTech LED Boom Spot Lights (4)
  • FireTech 12V LED Flood Lights
  • Tecniq ICC Lights
  • Whelen FNMINI Lightbar
