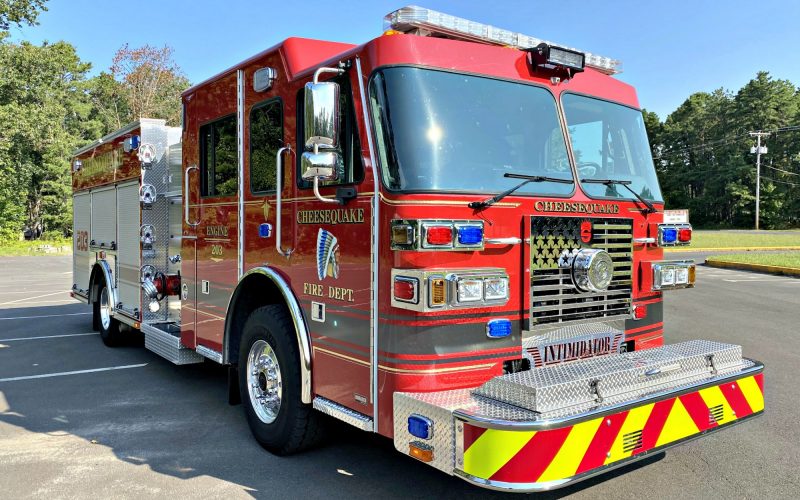

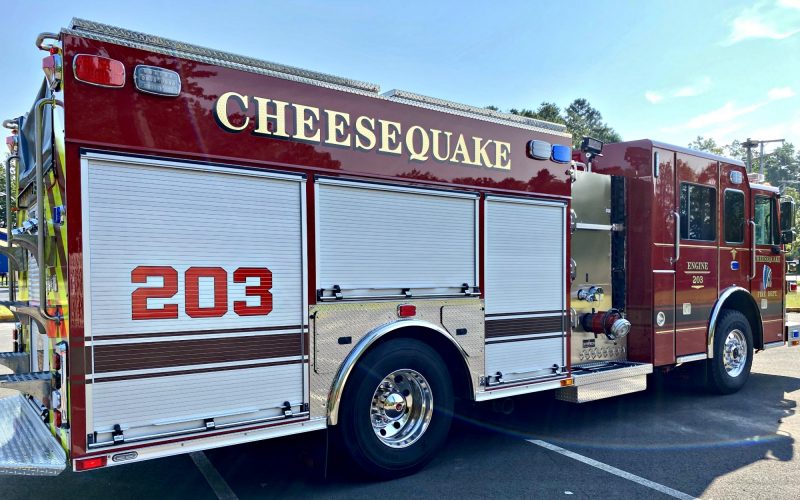

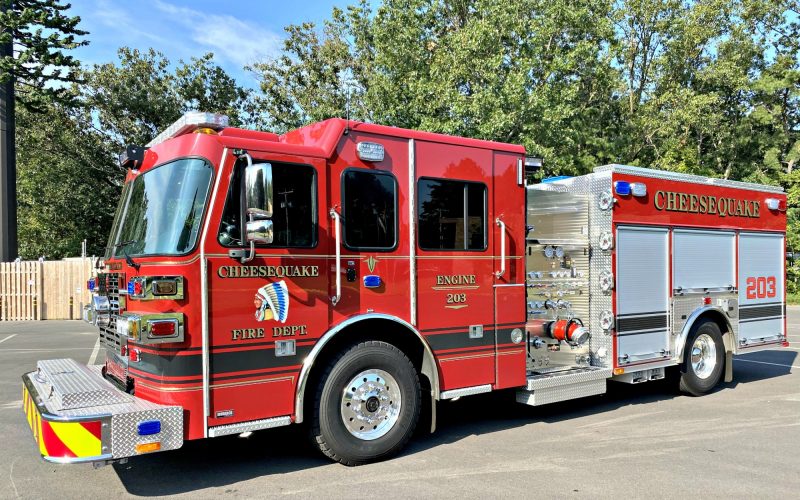

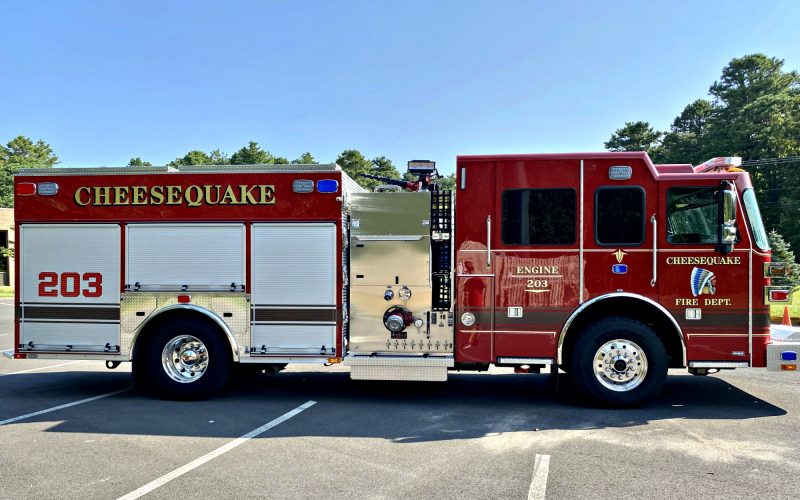

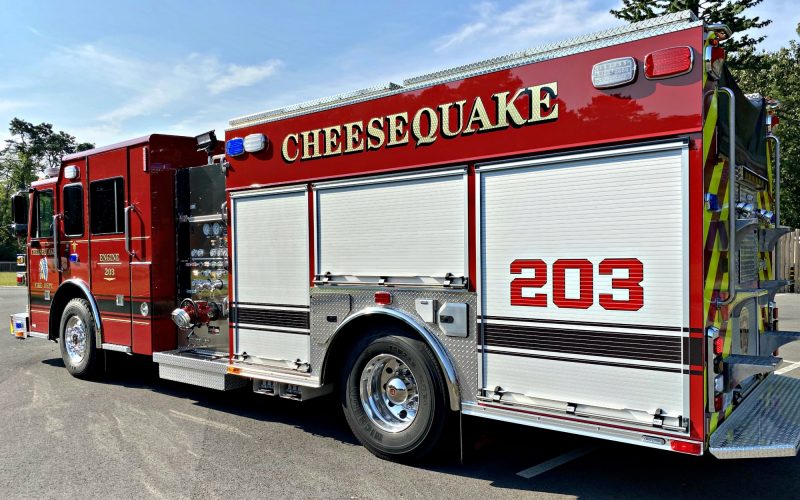

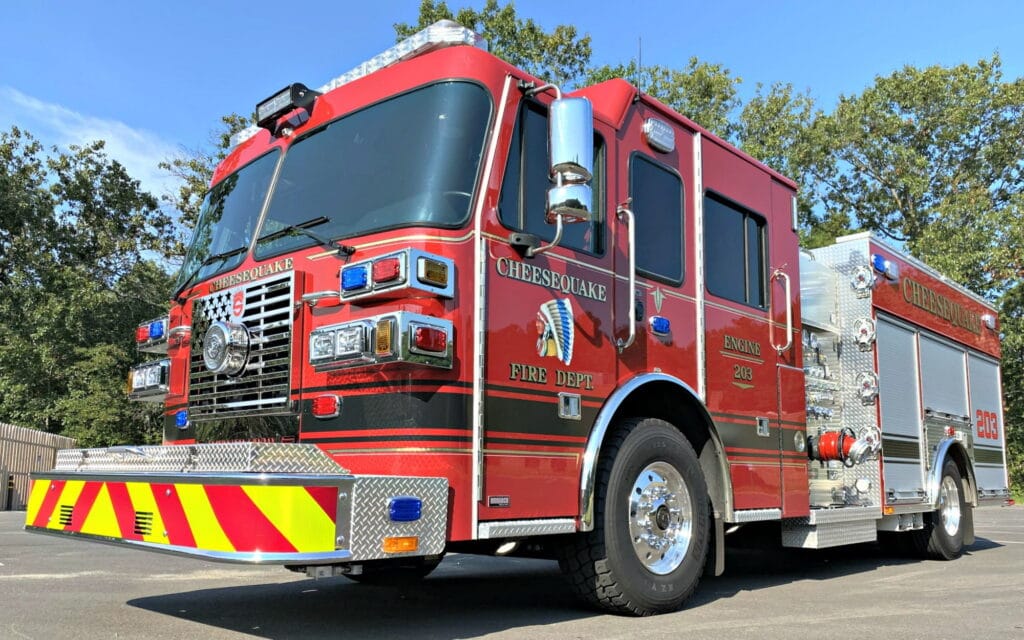

Delivery Date:
08/20/2020
Department Name:
Cheesequake VFC
Department City / State:
Old Bridge, NJ

Sutphen Corporation – HS #6547

Dealer – Blaze Emergency Equipment Company

WHEELBASE: 203”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • XS QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½”
  • Speedlays: (2) 2” w/ Swivels and Poly Lift-Out Trays
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladders (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Brigade Backeye 360 Camera System
  • Federal Q2B Siren, Grille Mount
  • Whelen PFH2 LED Brow Light
  • Whelen Freedom IV 81” LED Lightbar
  • Whelen M9 Scene Lights
  • Triple Air Bottle Compartments
  • Oil Dry Hopper
  • SCBA Cylinders Compartment (2 Triple, 1 Single)
