Delivery Date:
10/12/2018
Department Name:
Round Lake Fire Department
Department City / State:
Round Lake, NY

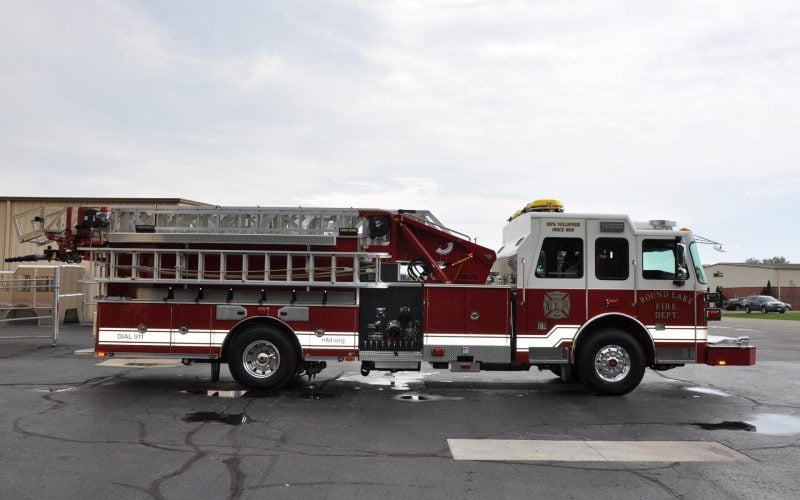

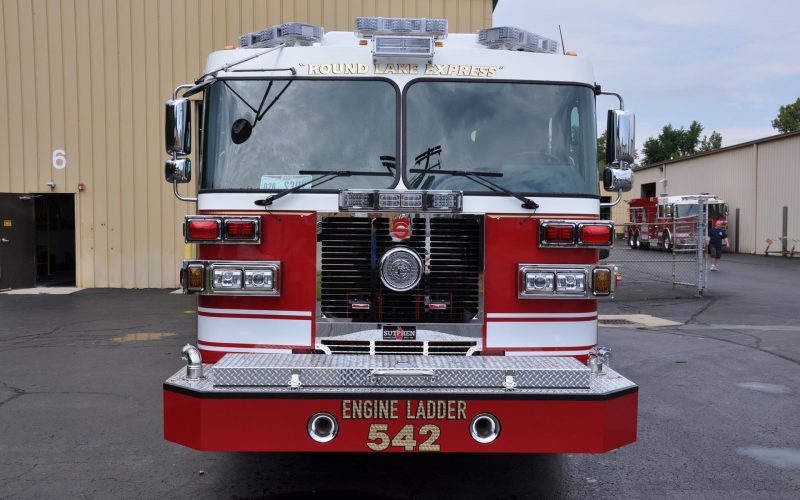

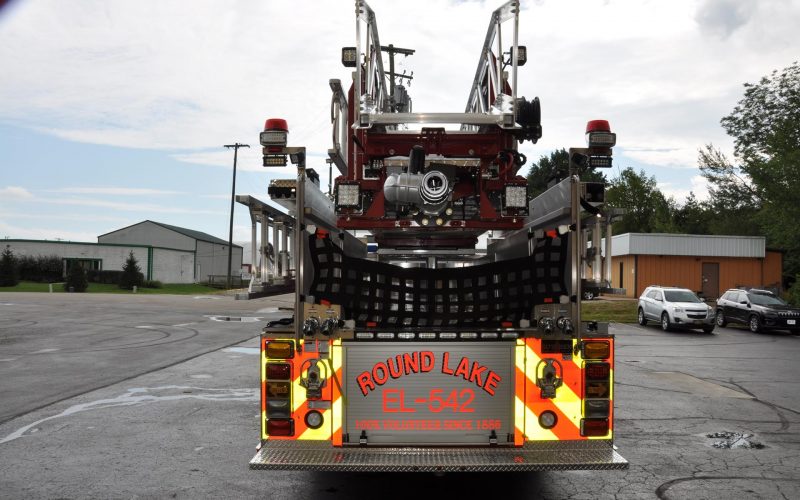

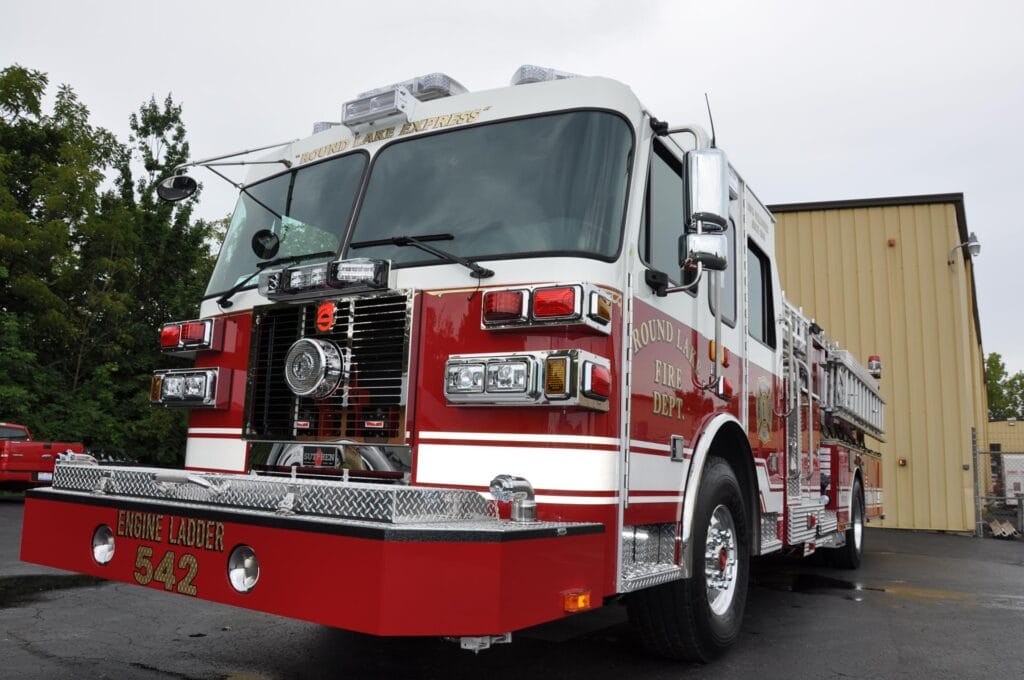

Truck Type:

Sutphen Corporation – HS #6136

Dealer – Vander Molen Fire Apparatus Sales and Service

WHEEL BASE: 221”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 36’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X12, 500 HP
  • Alternator: Leece Neville, 270 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Pipe to Left Rear, (2) 2 ½” Pipe to Right Rear, (2) 2 ½” Front Bumper
  • Monitor, TFT Y5-E11A-L Typhoon Elec w/ M-ERP-1500 Nozzle
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Hinged Compartment Doors
  • 113 cu. ft. of Total Compartment Space
  • Alco-Lite Quint Ladder Compliment

OPTIONAL EQUIPMENT:

  • 30” Bumper Extension
  • Whelen Traffic Advisor
  • Intercom System, FRC ACT 2-Station
  • Ladder Lighting System, (6) Rigid, LED
  • Pike Pole Storage Tubes (3)
  • Ziamatic SAC-44 Folding Wheel Chocks
