Delivery Date:
10/12/2018
Department Name:
Durham Fire Department
Department City / State:
Durham, NC
Truck Type:

Sutphen Corporation – HS #6204

Dealer – Stevens Fire Equipment

WHEEL BASE: 221”

TRAVEL HEIGHT: 10’ – 10”

TRAVEL LENGTH: 38’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X12, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

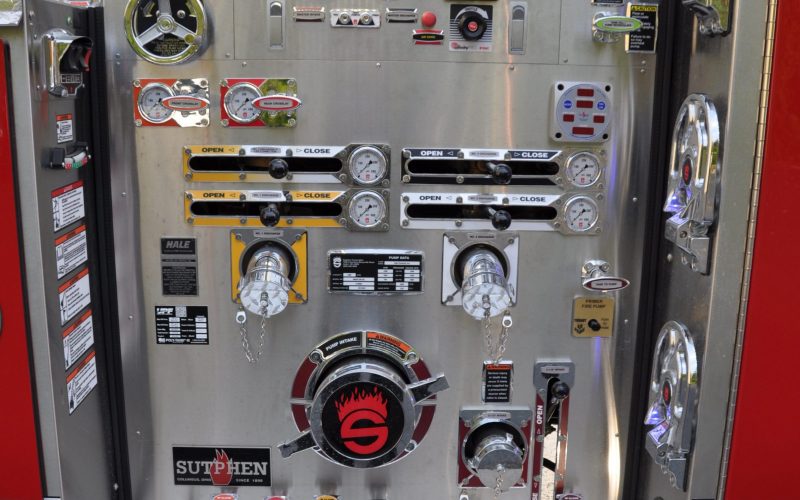

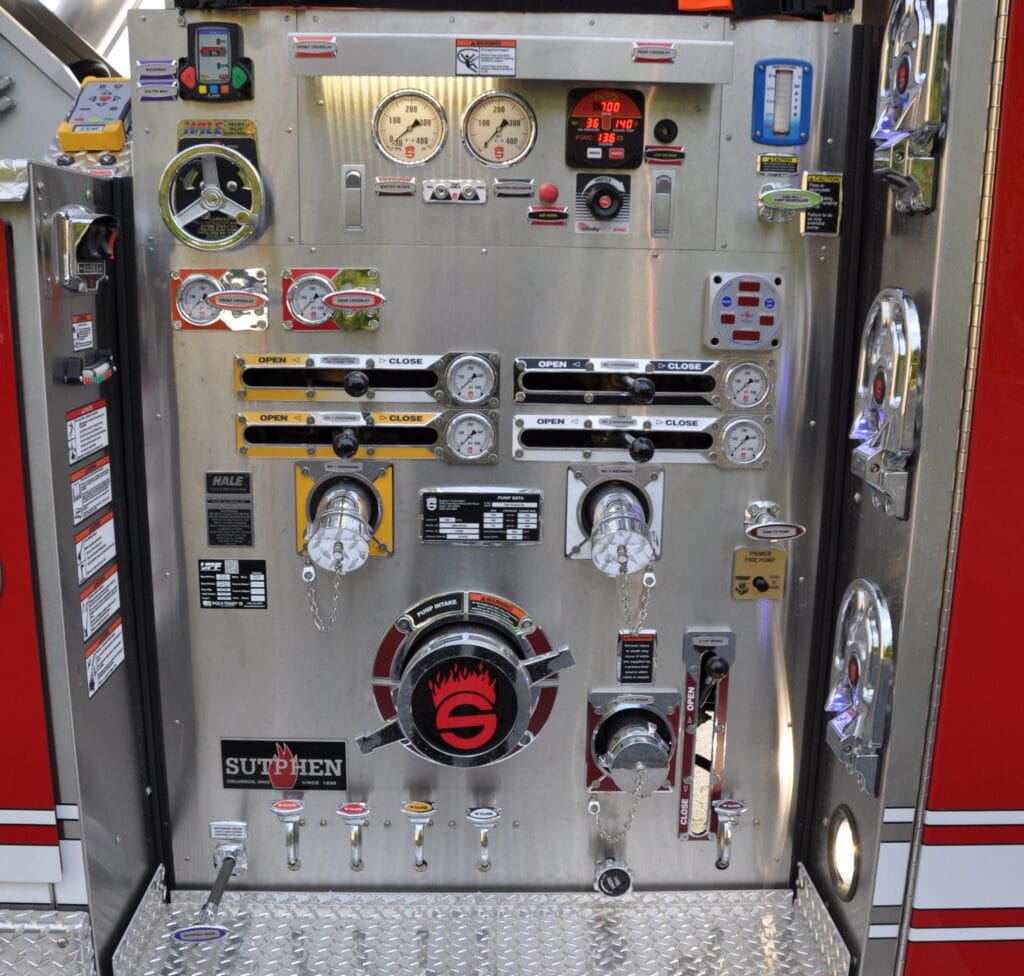

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Monitor: Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

Body:                   Sutphen

  • Huck Bolted #304 Stainless Steel
  • Hinged Compartment Doors
  • 162 cu. ft. of Total Compartment Space
  • Alco-Lite Aerial Ladder Compliment
  • Left Hight/ Right Low

OPTIONAL EQUIPMENT:

  • 12” Bumper Extension
  • 6KW Smart Power Generator
  • Pike Pole Storage Tubes (6)
  • David Clark Intercom System
  • Ladder Lighting System, Rigid, LED
  • Whelen PFP2, Brow 12V LED
