Delivery Date:
02/10/2021
Department Name:
Pine Hills Fire District
Department City / State:
Cheektowaga, NY
Truck Type:

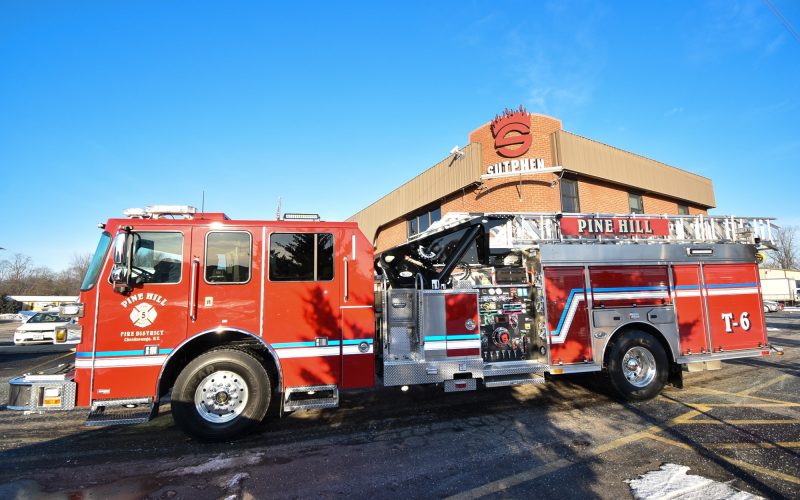

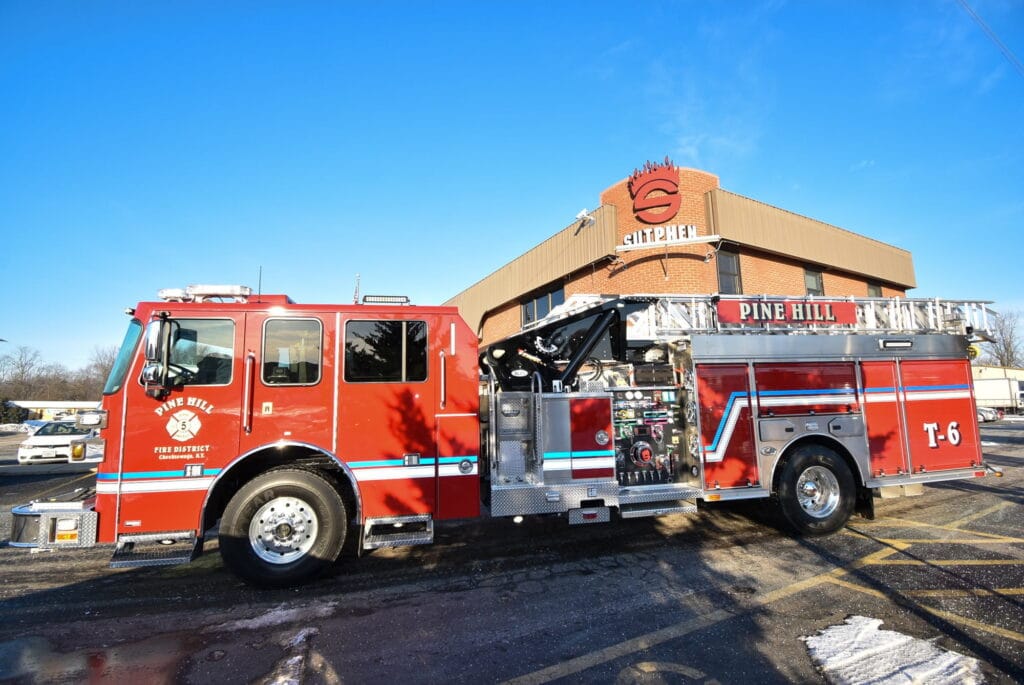

Sutphen Corporation – HS #6886

Dealer – Herb Fire

WHEELBASE: 232”

TRAVEL HEIGHT: 10’ – 0 ½”

TRAVEL LENGTH: 42’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ Flat Roof

  • Four-Door, Eight-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front of Upper Left Side Body, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper
  • Crosslay: (2) Crosslays 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: Hale SmartFoam 2.1A

BODY:                  Sutphen

  • Amdor Roll-Up Compartment Doors
  • Over 210 cu. ft. Total Compartment Space
  • Alco-Lite Custom Ladder Compliment: (FL-1 10
  • Folding; PRL-16 16’ Roof; PRL-18 18’ Roof; PEL-24 24’ 2-Section; PEL-35 35’3-Section)
  • Body: SAA-4, Left High / Right Intermed / Trans
  • Monitor: Elkhart 7205 Cobra EXM w/ SM1500E Nozzle

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Pike Pole Storage Tubes (6)
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Intercom System: FRC ACT 2-Station
  • Ziamatic Quic-Lift Electric Ladder Rack w/ 24’ Ladder Chute
  • Hi-Viz 3-Piece 12V LED Brow Light
  • Whelen Freedom 4 Lightbar
  • Whelen MCFLED Beacons
  • FireTech LED Scene Light
