Delivery Date:
02/18/2021
Department Name:
Middleburg Heights Fire Department
Department City / State:
Middleburg Heights, Ohio

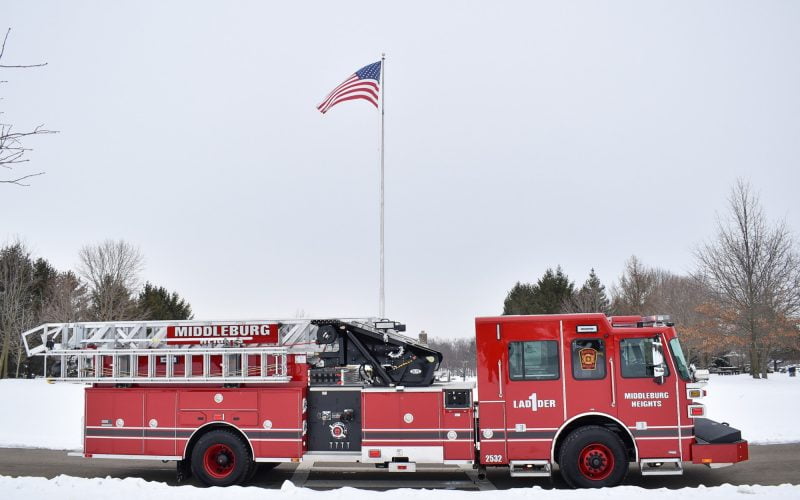

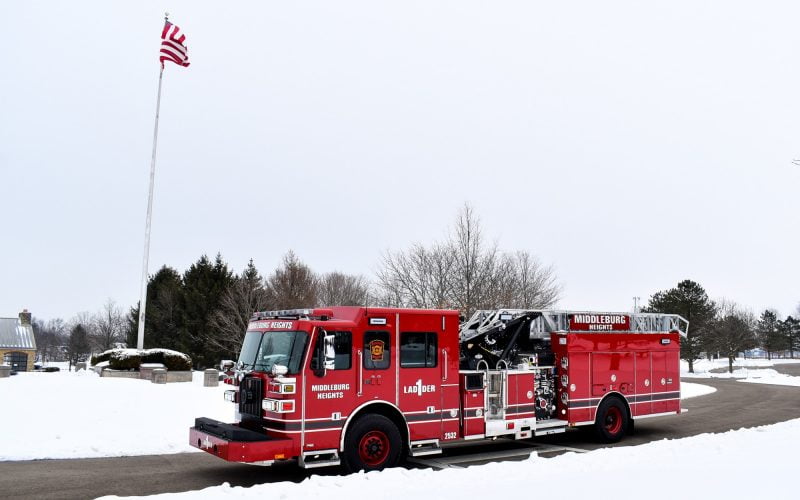

Truck Type:

Sutphen Corporation – HS #6863

Dealer – Herb Fire

WHEELBASE: 252”

TRAVEL HEIGHT: 10’ – 0 ¾”

TRAVEL LENGTH: 44’ – 11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Valve 2 ½” Pipe to Left Rear
  • Crosslay: (2) 2” Crosslays Behind Cab w/ Compartments
  • Deadlays: (2) 250’ of 2” Hose and 50’ of 5” Hose
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Mixed Roll-Up and Compartment Doors, Satin Finish
  • Over 230 cu. ft. Total Compartment Space
  • Duo-Safety Quint Ladder Compliment: (585-A 10’ Folding, 875-A 16’ Roof, 775-A 14’ Roof, 900-A 24’ 2-Section, 1225-A 35’ 3-Section)
  • Body: SAA-4, Left High / Right Intermed / Trans
  • Monitor: Elkhart 7250 Cobra EXM w/ SM1500E Nozzle

ADDITIONAL EQUIPMENT:

  • 30” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Pike Pole Storage Tubes (3)
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Intercom System: Firecom 5100D Single Radio 6 Position
  • FireTech 3-Piece 12V LED Brow Light
  • FireTech LED Boom Spotlights
  • Mars Lights (2)
  • Whelen Freedom 4 81” Rotabeam Lightbars
  • FRC Spectra 12V Scene Light
