Delivery Date:
02/16/2021
Department Name:
Oneonta Fire Department
Department City / State:
Oneonta, AL

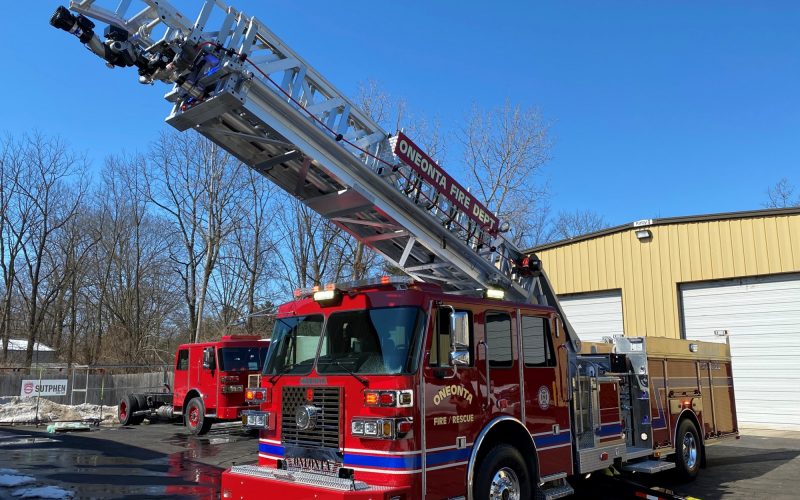

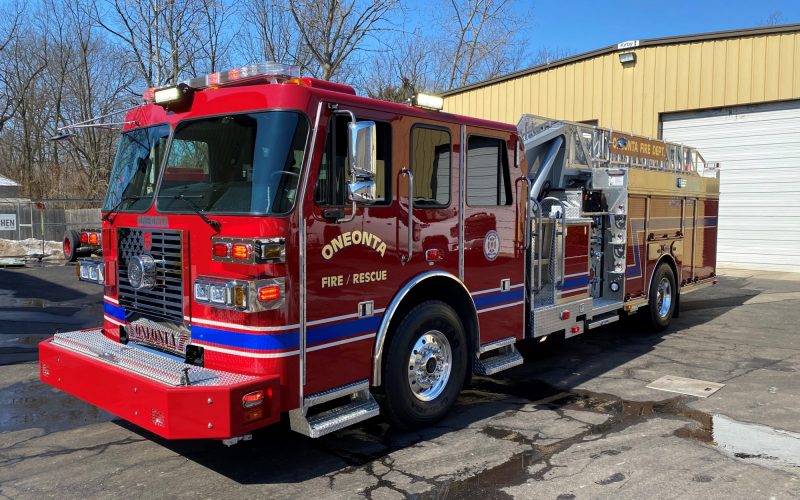

Truck Type:

Sutphen Corporation – HS #6902

Dealer – Williams Fire Apparatus

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 0 ½”

TRAVEL LENGTH: 41’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 1 ½” Front Bumper, (1) 2 ½” Discharge at the Tip
  • Crosslay: (2) Crosslays 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Foam System: Hale SmartFoam 2.1A
  • Foam Supply System: Akron

BODY:                  Sutphen

  • Amdor Roll-Up Compartment Doors
  • Over 190 cu. ft. Total Compartment Space
  • Duo-Safety Custom Ladder Compliment: (103’: 14’, 16’R, 28’ 2-Section,35’ 3-Section & 10’ F)
  • Body: SAA-4, Left High / Right Intermed / Trans
  • Monitor: TFT Y4-E11A-P-01 Monsoon Electric w/ M-ERP-1500 Nozzle

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Intercom System: FRC ACT 2-Station
  • Ziamatic Quic-Lift Electric Ladder Rack w/ 24’ Ladder Chute
  • Whelen PFH2 12V LED Brow Light
  • Whelen Freedom 4 Lightbar
  • Whelen PFH2 12V LED Scene Light
  • Whelen M9 12V Scene Light
