Delivery Date:
07/08/2025
Department Name:

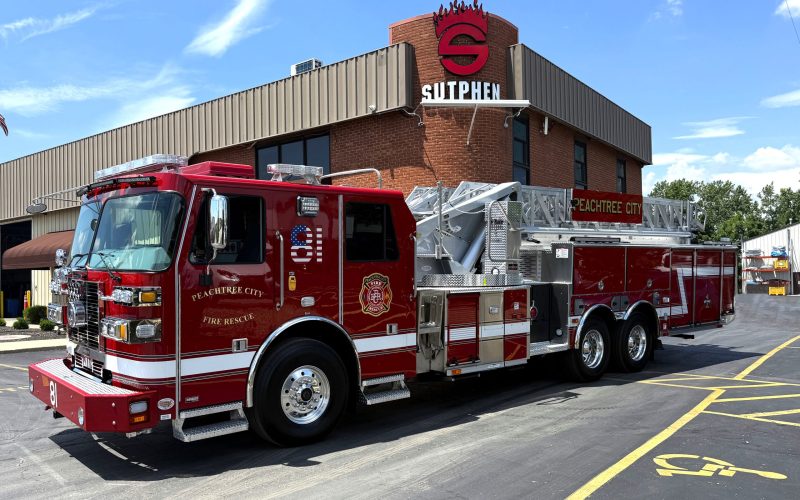

Peachtree City Fire Rescue
Department City / State:
Peachtree, GA
Truck Type:

Dealer – Williams Fire Apparatus

WHEELBASE: 236”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH:  43’ – 8”

CHASSIS:    Sutphen Monarch Heavy-Duty Custom Chassis, 62” Cab w/ a Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs w/ (4) 56” Leafs
  • Rear Axle and Suspension 44,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Delco-Remy, 420 AMP
  • Transmission: Allison Gen 6, EVS4000

PUMP:                 No Pump / No Tank

BODY:                 Sutphen

  • Huckbolt #304 Stainless Steel
  • Mixed AMDOR Roll-Up & Hinged Compartment Doors
  • Over 280 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package 149’: 16’, 20’, 28’ 2-Section, 35’ 3-Section, 40’ 3-Section & 10’ Folding
  • Body: SL100-2 – Left High / Right High Ladders Enclosed

ADDITIONAL EQUIPMENT:

  • 12” Painted Formed Steel Channel
  • Federal Q2B, Grille Mount
  • Camera System: FRC, Inview Trueview, Two Cameras (Wired)
  • Intercom System: FRC ACT 2-Station
  • Generator: Smart Power, 6KW HR HYD, Aerials
  • Hannay Electric Cord Reed, 150’ (1)
  • Warning Light, Roto-Ray, LED
  • FireTech 3-Piece 72” LED Brow Light
  • Whelen Freedom 4 Lightbar
  • FireTech Guardian Elite 20K LED Scene Lights
  • Whelen F4NMINI LED Light Bars
  • FireTech FT-MB-2.45-FT LED Scene Light
  • Whelen L31 Rear Beacons

MONITOR:

  • TFT YN-E21A-L Flex Elec w/ M-ERP-1500-NN Nozzle
