Delivery Date:
02/20/2020
Department Name:
North Palm Beach Fire Rescue, FL
Department City / State:
North Palm Beach, FL

WHEELBASE: 196”

TRAVEL HEIGHT: 10’ – 7”

TRAVEL LENGTH: 32’ – 9”

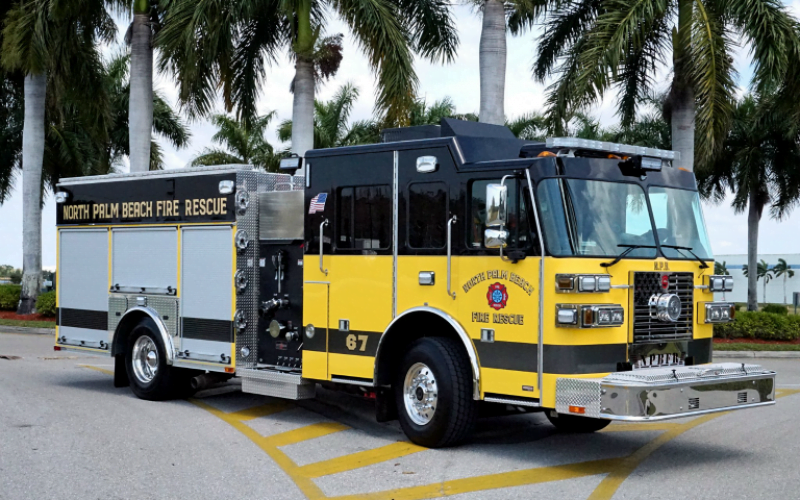

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • XS QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivel
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Elkhart Foam Supply System w/ Flush

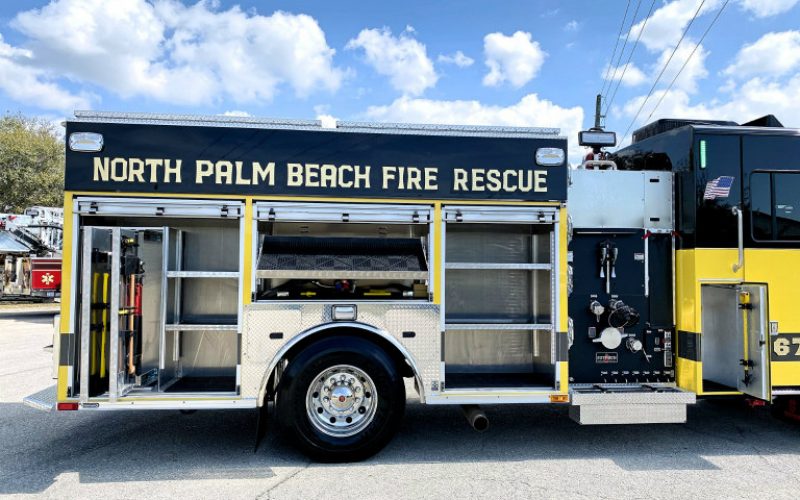

BODY:                  Sutphen

  • Amdor Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Fully Enclosed Ladder Chutes
  • Body: G9 – Alum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel
  • Federal Q2B Siren, Grille Mount
  • Air Bottle Compartments (3)
  • FRC Spectra Brow Light
  • FRC Spectra Telescopic Lights
  • Whelen Freedom LED Lightbar
  • Whelen 600 Red Warning/Scene Lights
