Delivery Date:
11/21/2019
Department Name:
Pinewald Pioneer Fire Department
Department City / State:
Bayville, NJ

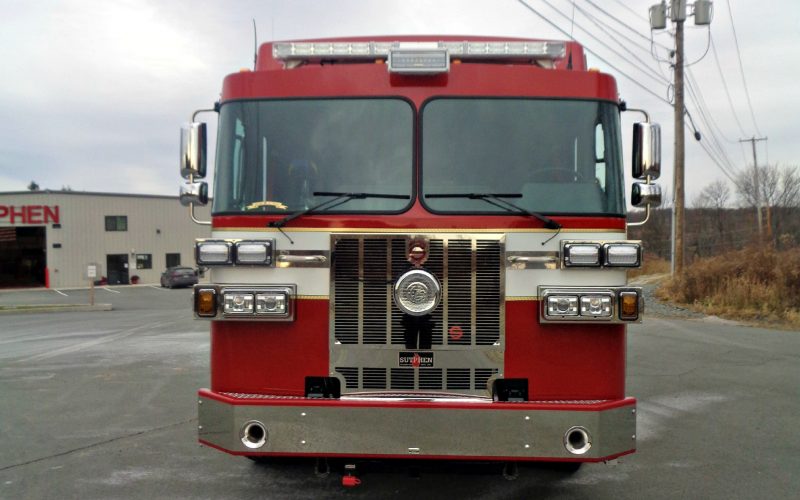

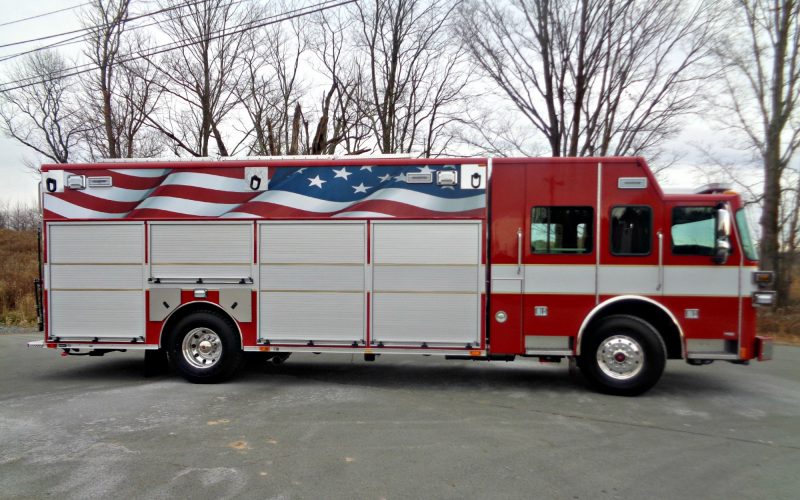

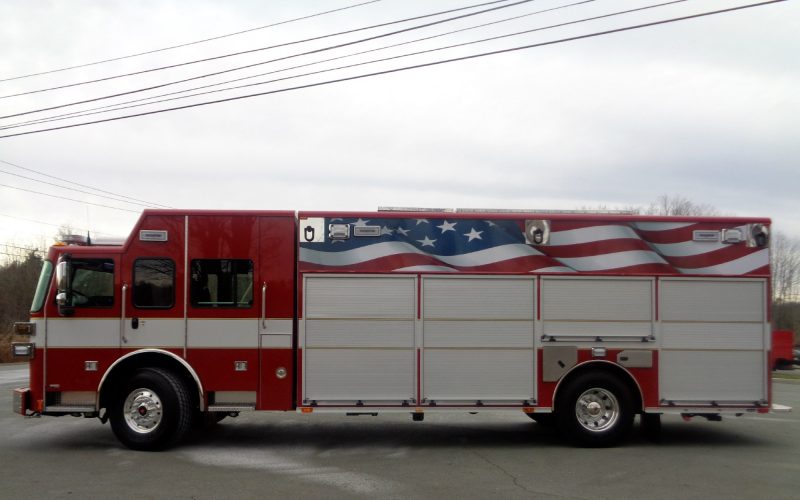

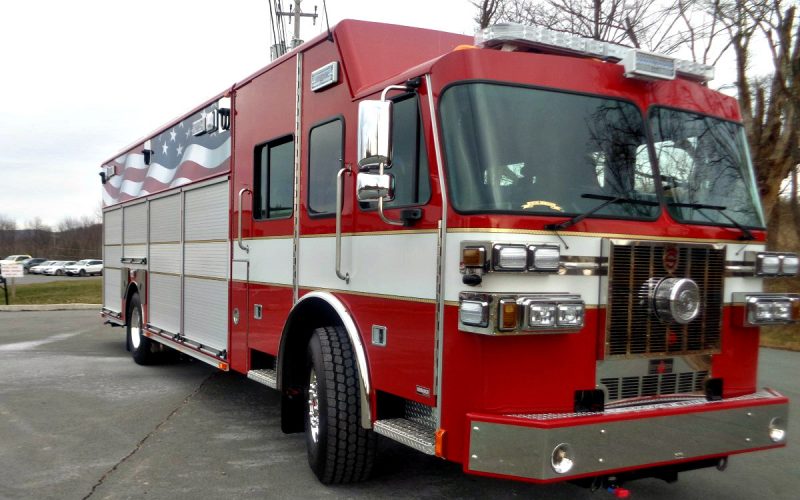

Truck Type:

Sutphen Corporation – HS #6415

Dealer – Blaze Emergency Equipment

WHEEL BASE: 235”

TRAVEL HEIGHT: 11’ – 2”

TRAVEL LENGTH: 34’ – 10”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 73” Extended Cab with a 20” Raised Roof

  • Four-Door, Eight-Person Cab
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen5, EVS3000

BODY:                  Sutphen

  • 3/16” Extruded Aluminum

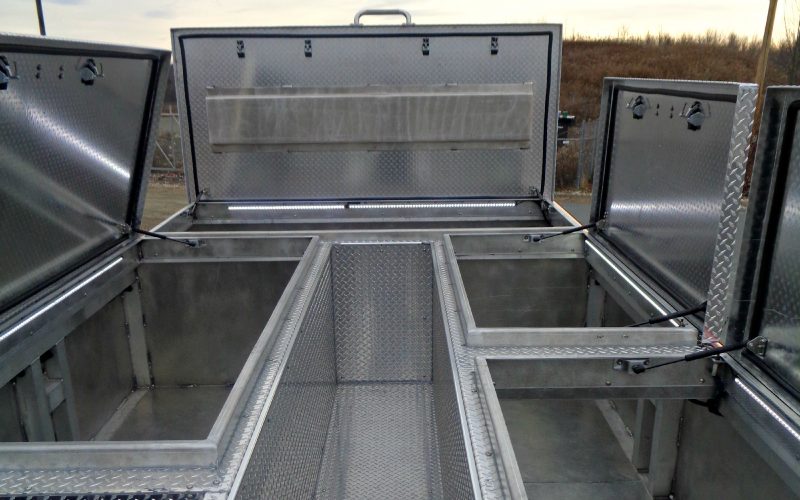

  • ROM Roll-Up Compartment Doors
  • Special Ladder Package: 24’ Extension and 14’ Roof Fiber Glass Ground Ladders

ADDITIONAL EQUIPMENT:

  • FRC, Inview Trueview, Camera System
  • Hannay Electric Cord Reel, 100’ (2)
  • Winch Receiver with Power
  • 25KW Onan Generator
  • Federal Q2B Siren, Grille Mount
  • 6” Formed Steel Channel, Bumper Extension
  • Sierra Booster Pump
  • Command Light – Model KL 415A-FS (2)
  • Whelen FN72QLED Lightbar
  • Whelen 36” Traffic Advisor
  • FR Spectra Brow Scene Light
