Delivery Date:
11/22/2019
Department Name:
DeKalb County Fire Rescue
Department City / State:
DeKalb County, GA
Truck Type:

Sutphen Corporation – HS #6348

Dealer – Williams Fire Apparatus

WHEEL BASE: 233”

TRAVEL HEIGHT: 11’ – 8 ½”

TRAVEL LENGTH: 37’ – 5”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 20” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 44,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

BODY:                  Sutphen

  • Aluminum

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper Extension
  • Federal Q2B Siren, Flush Grille Mount
  • 10,000-Watt Onan Generator
  • (2) Carefree Mirage 110-Volt Slideout Awnings
  • Aro Pump Transfer System with 150-Gallon Storage Tank
  • Cab/Body Walk-Through Connection

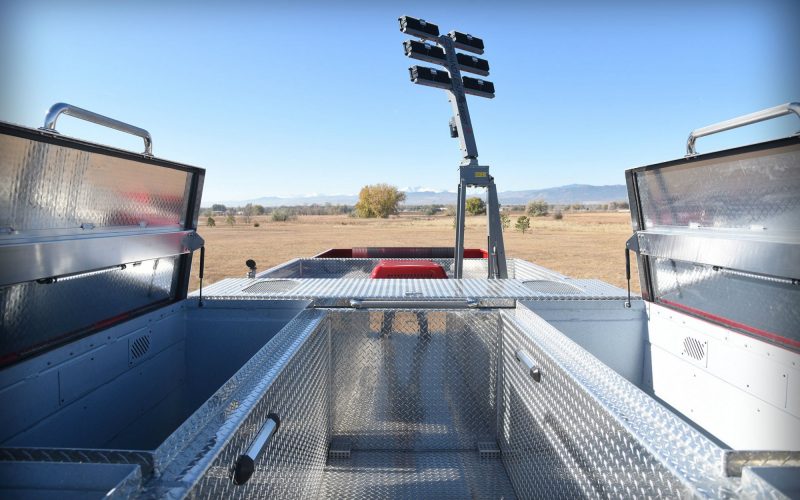

  • Command Light Knight 2, KL Series Light Tower
  • Weatherpak® TRx2-UHF Weather Station
  • OnScene Aluminum Heavy-Duty Cargo Slides
  • Whelen LED Warning and Scene Lighting
  • Vertical Tool Board Mounts with Accuride Slide Tracks
  • OnScene LED Compartment Lighting

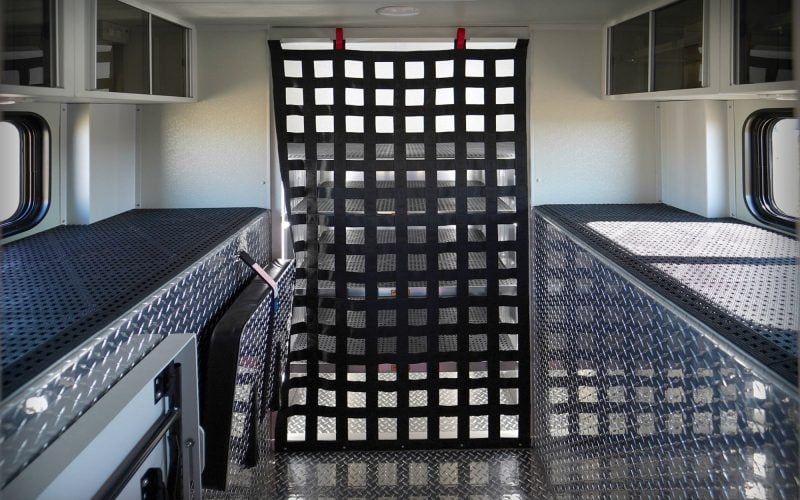

  • Interior Complete with Desk, Cabinet and Console Finish
  • Whelen Freedom IV 81” LED Lightbar
  • Whelen Mini Freedom IV 21” LED Lightbar
  • Whelen PFH2, Brow 12V LED
