Delivery Date:
11/22/2019
Department Name:
Carroll County Fire Department
Department City / State:
Carrollton, GA

Sutphen Corporation – HS #6474-76

Dealer – Williams Fire Apparatus

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 31’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

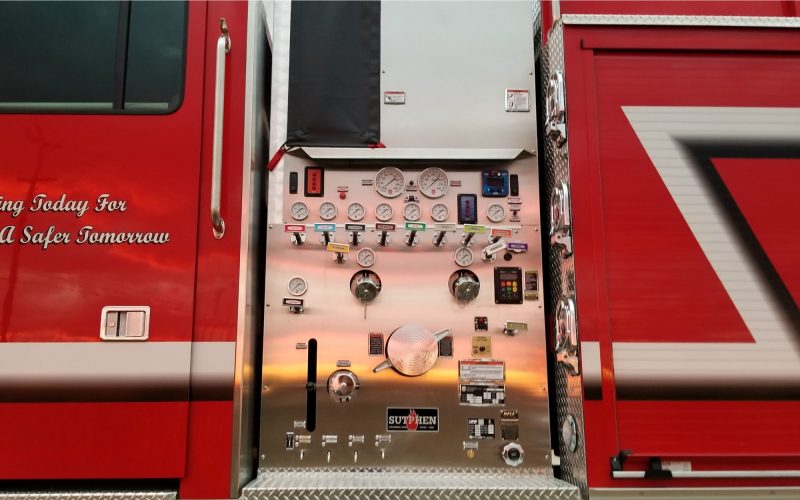

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • Speedlay: (2) 2” with 1 ½” Swivel & Poly Lift-Out Tray
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • FoamPro 2002, 5.0 GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 246 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chutes
  • Body: G9 – Alum 40/51 Ladders Through the Tank

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Safety Vision SV-CLCD0-70, Camera System
  • Air Bottle Compartments (4)
  • Whelen PFH1 LED Brow Light
  • Whelen Freedom 12 LED Lightbar
  • Whelen PFH2 12V LED Scene Lights
  • Whelen M9 Scene Lights
