Department Name:
City of Reidsville
Department City / State:
Reidsville, NC

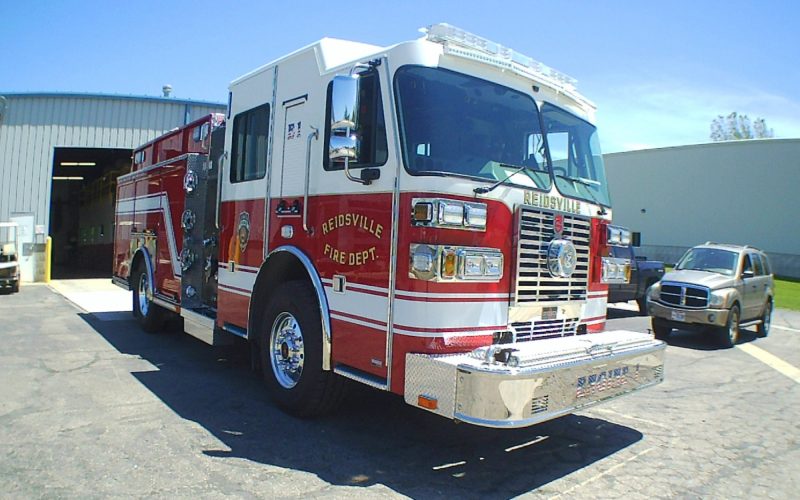

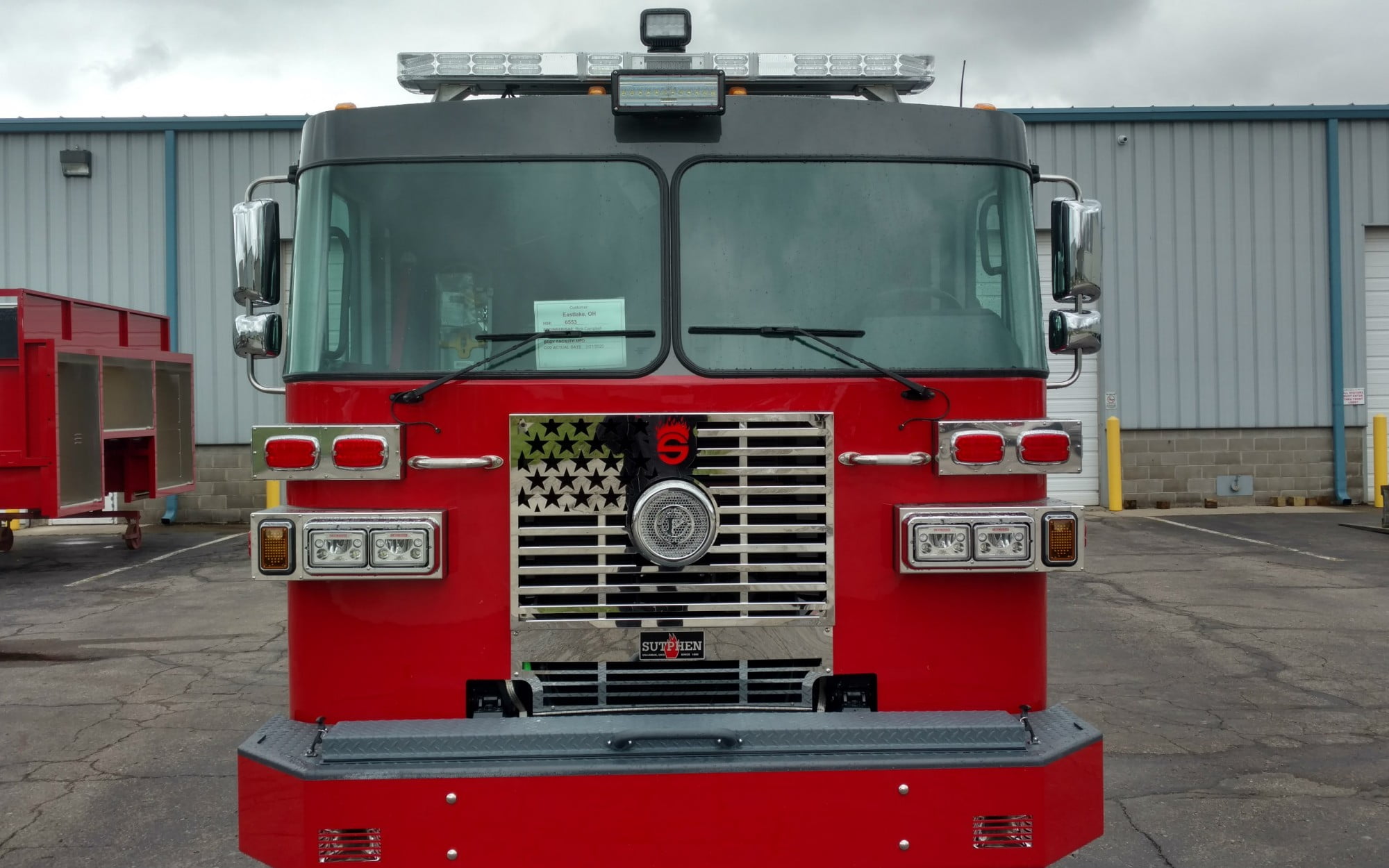

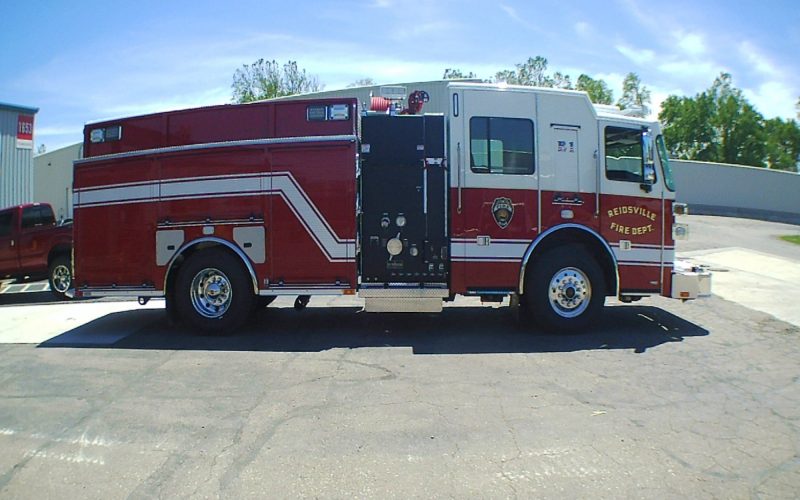

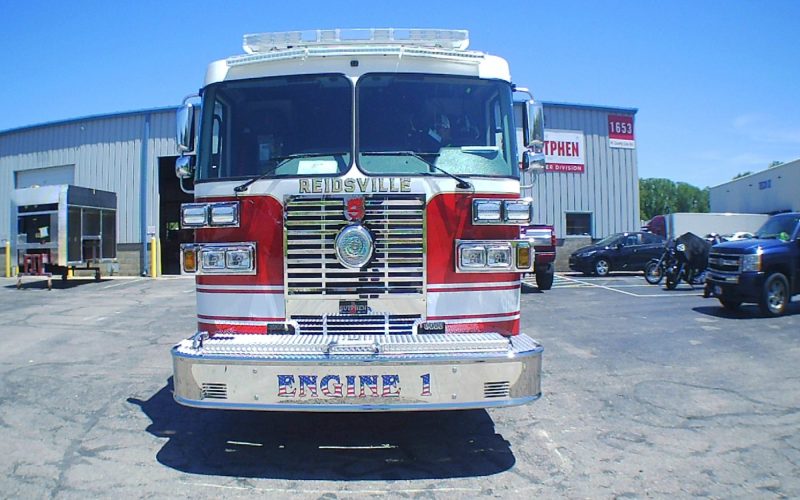

Sutphen Corporation – HS #6552

Dealer – Stevens Fire Equipment, Inc.

WHEELBASE: 185”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 31’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison, EVS3000

PUMP:                 Hale

  • XS QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½”
  • Speedlay: (2) 2” w/ Swivel and Poly Lift-out Tray
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • 222 cu. ft. Base Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Fully enclosed ladder chute
  • G2 – Alum 40/51 Lad Chute

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel
  • Federal Q2B Siren, Grille Mount
  • 3 Bottle Compartments
  • FRC Inview 360 Camera System
  • Firetech 3-piece 72” LED Brow Light
  • Whelen Freedom IV 72” LED Lightbar
  • Whelen 900 Scene Lights
  • Whelen 900 LED Red Light
  • Whelen M6 LED Red Light
  • Whelen PFP2 12V Telelight
