Delivery Date:
04/20/2021
Department Name:
Frenchtown Fire Department
Department City / State:
Frenchtown, MI

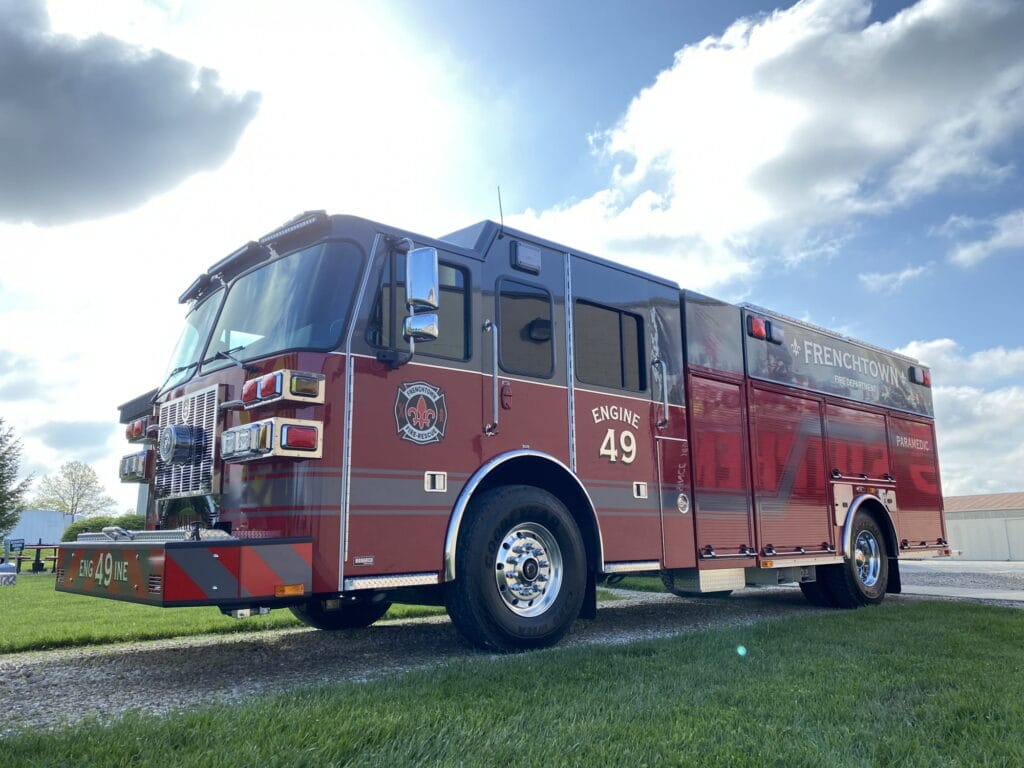

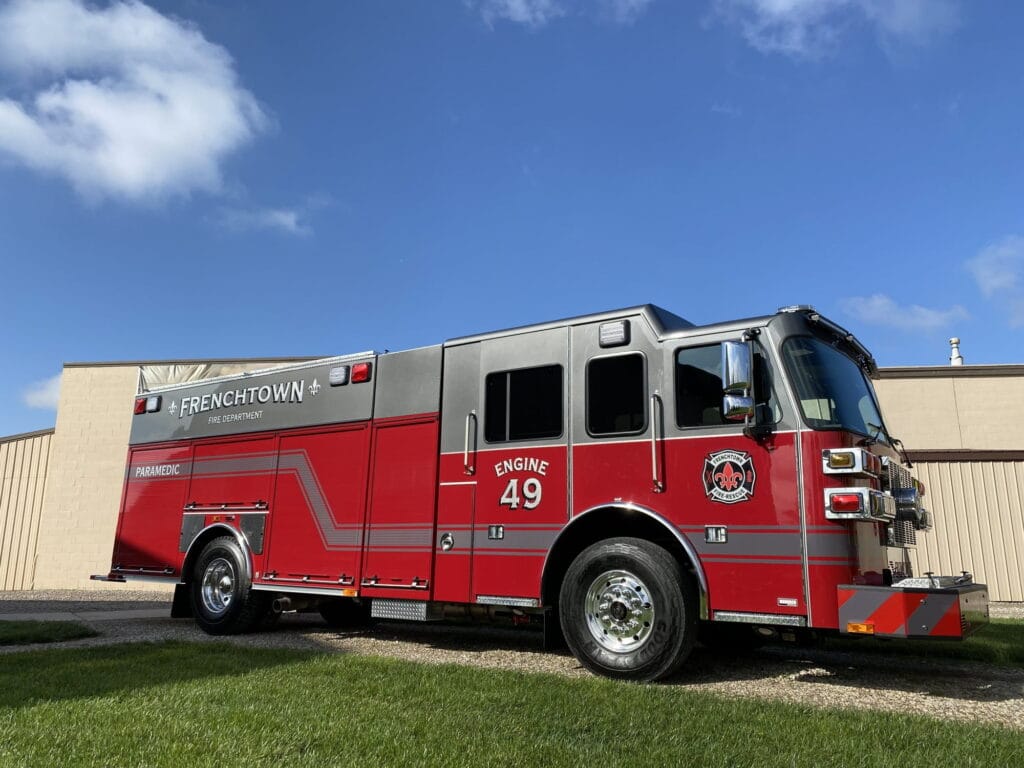

Sutphen Corporation – HS #6756-57

Dealer – Apollo Fire Equipment

WHEELBASE: 198”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 32’ – 8”

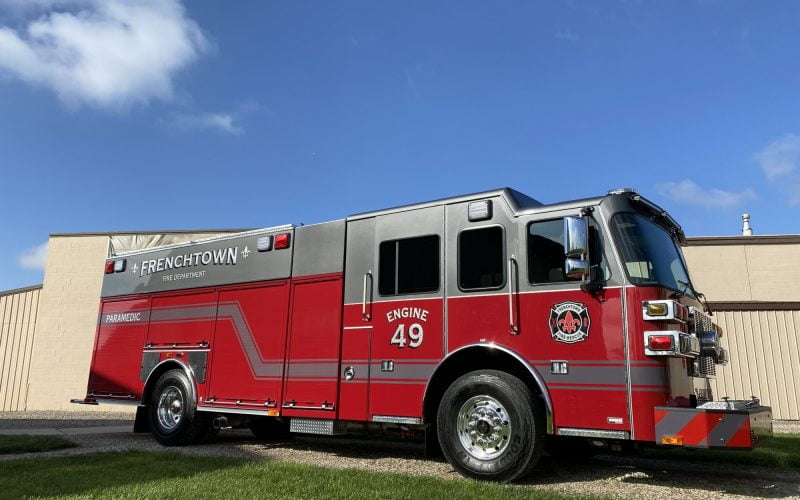

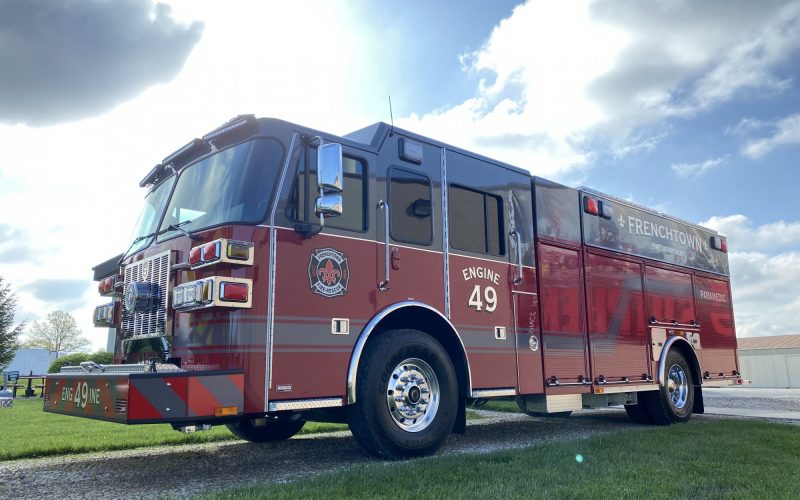

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 19,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 270 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • XS QMAX-1500 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Left, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivels and Poly Lift-out Trays
  • 750-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Foam System: Hale Smartfoam 2.1A

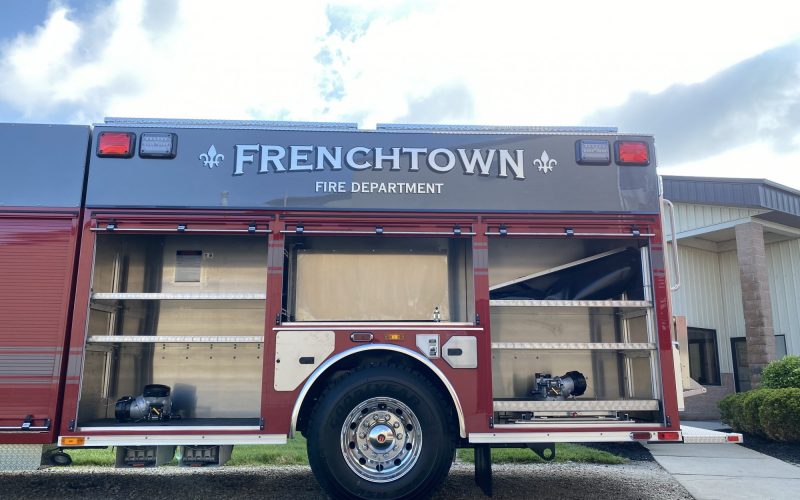

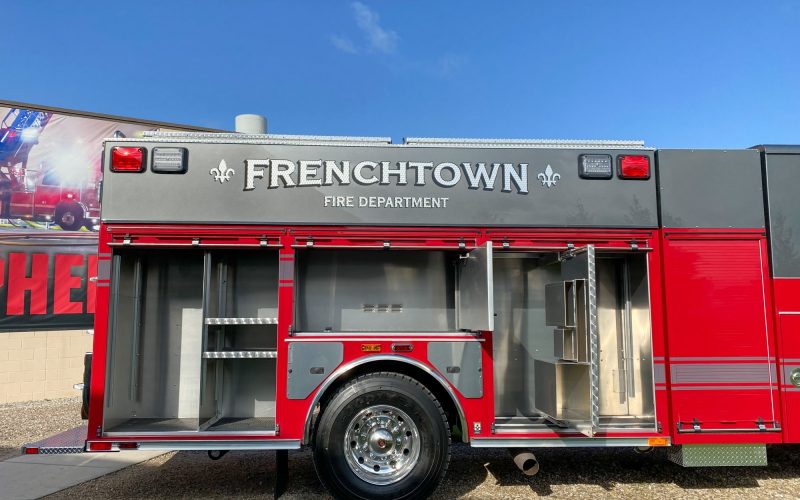

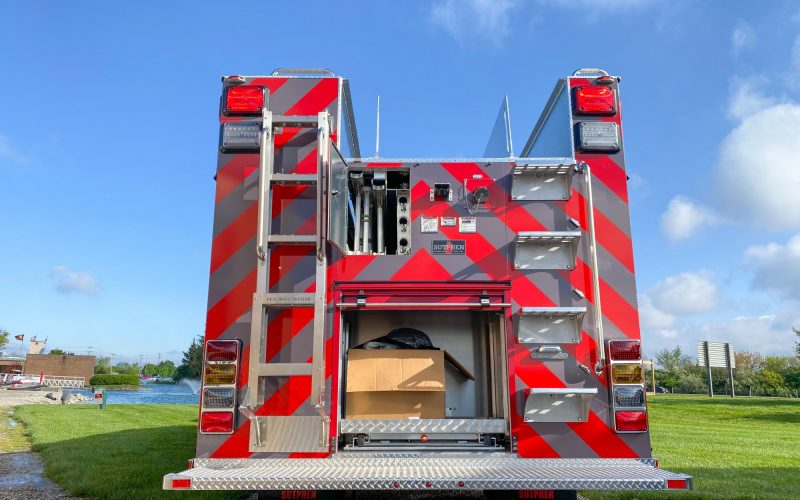

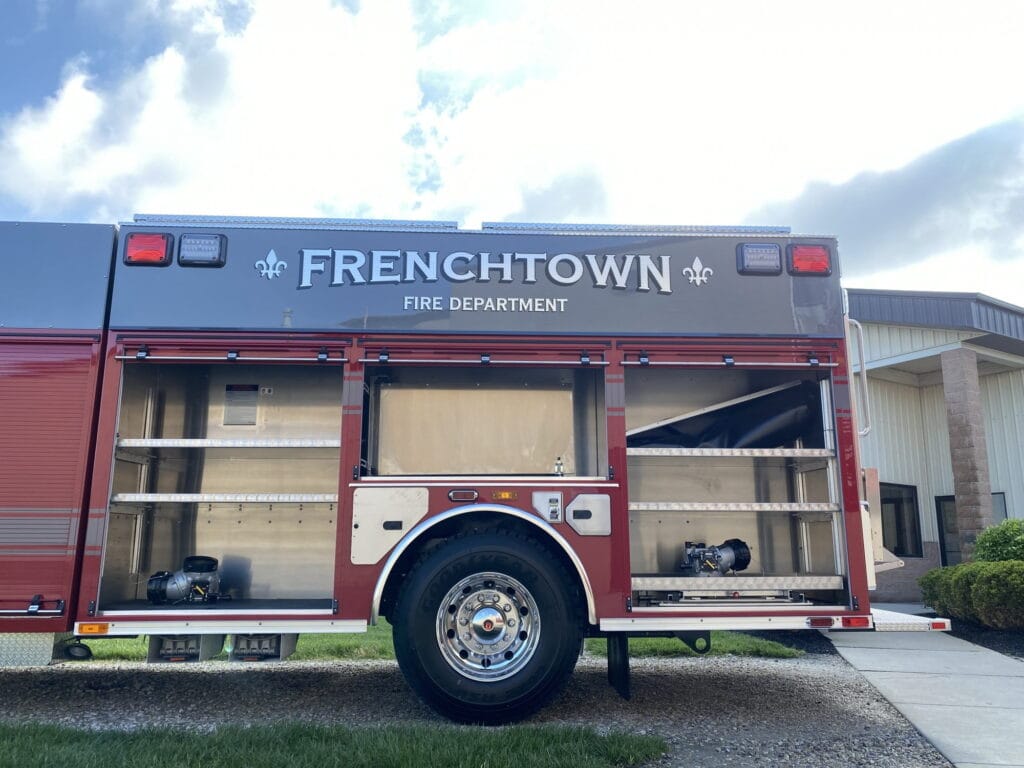

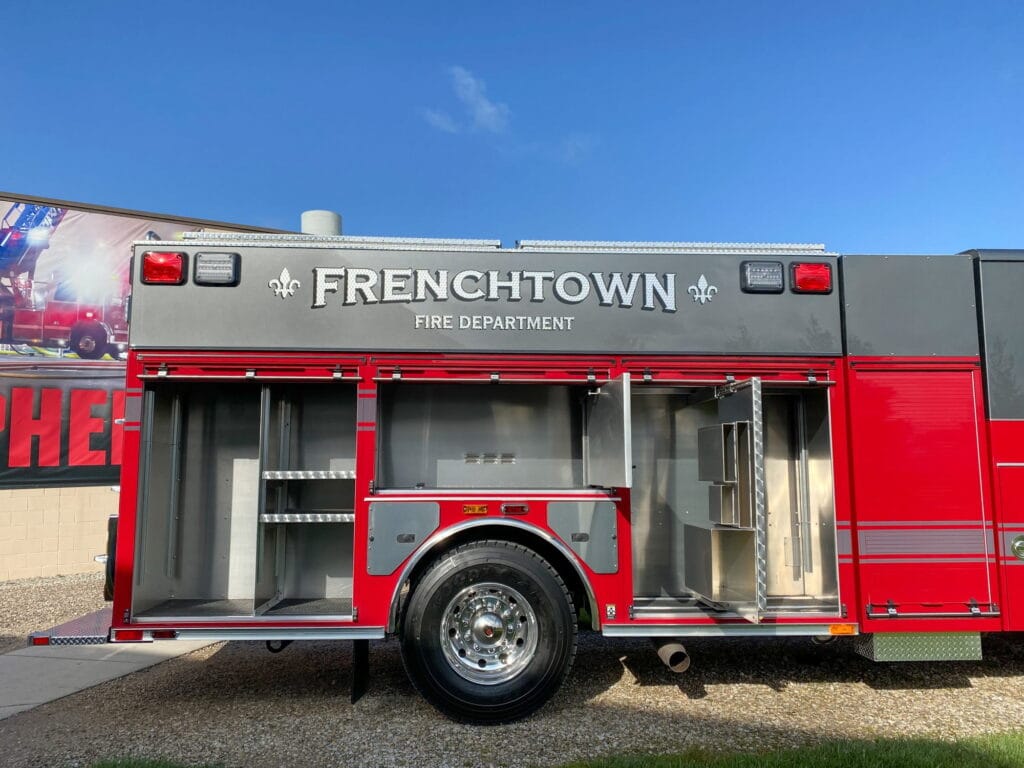

BODY:                   Sutphen

  • AMDOR Roll-Up Compartment Doors
  • Nearly 400 cu. ft. Total Compartment Space

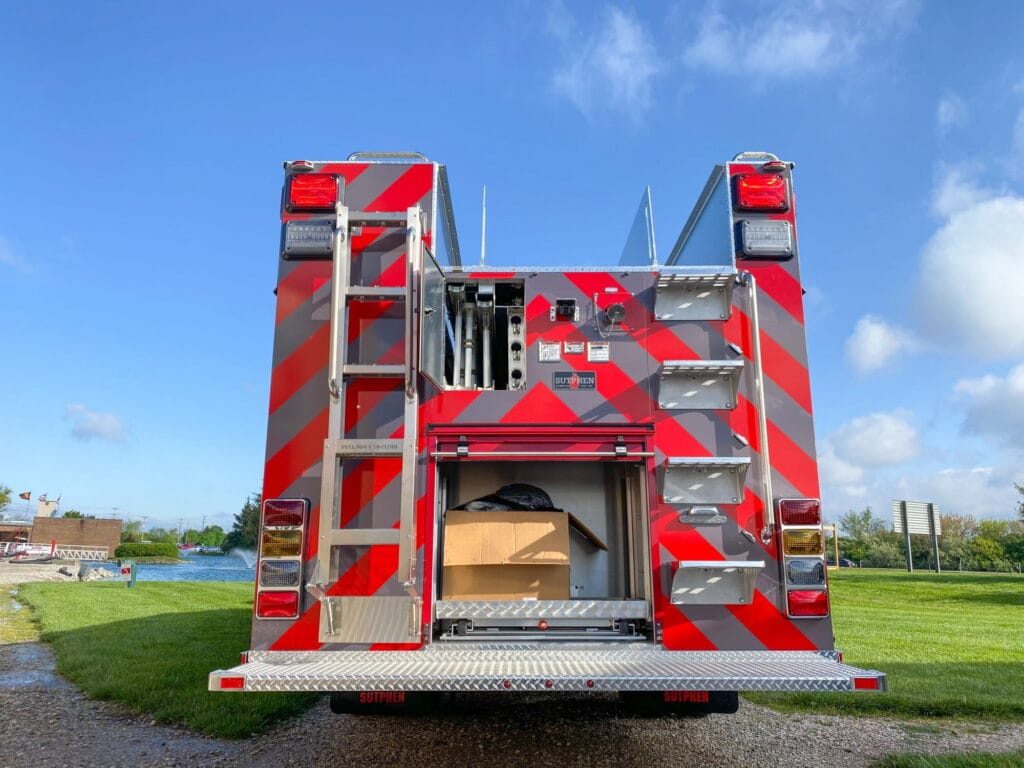

  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: S8 – 56/53 Lad Thru Water Tank on Beam and Double Hatch

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: Wireless, Setcom Liberatormax Single Radio
  • Camera: FRC, Inview Trueview, Single Camera
  • Whelen Justice 62” LED Light Bar
  • Whelen 900 12V LED Scene Light
  • Whelen 500 LEDs
  • Firetech 12 3 Piece LED Brow Light
