Delivery Date:
04/20/2021
Department Name:
Delaware Fire Department
Department City / State:
Delaware, OH

Sutphen Corporation – HS #6766

Dealer – Herb Fire

WHEELBASE: 196”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 32’-7”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” extended cab with 10” raised roof

  • Four-Door, Four-Person Cab
  • 10” Double Rails, Single Axle (50K PSI)
  • Front Suspension 20,000 lbs.
  • Rear suspension 24,000lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • XS QMAX-2,000 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 3” Deck Gun
  • Crosslay/Speedlay: (2) 2” w/Swivel & Alum Trays Crosslay Section to be Used as a Compartment
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                   Sutphen

  • Aluminum 43/53
  • Amdor Roll-Up Compartment Doors Satin Finish
  • 3 cu. ft. Total Compartment Space
  • Body: Custom Pumper S2

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper, Painted
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom IV 72” Lightbar (14 Modules)
  • Firetech 3-Piece 72” LED Brow Light

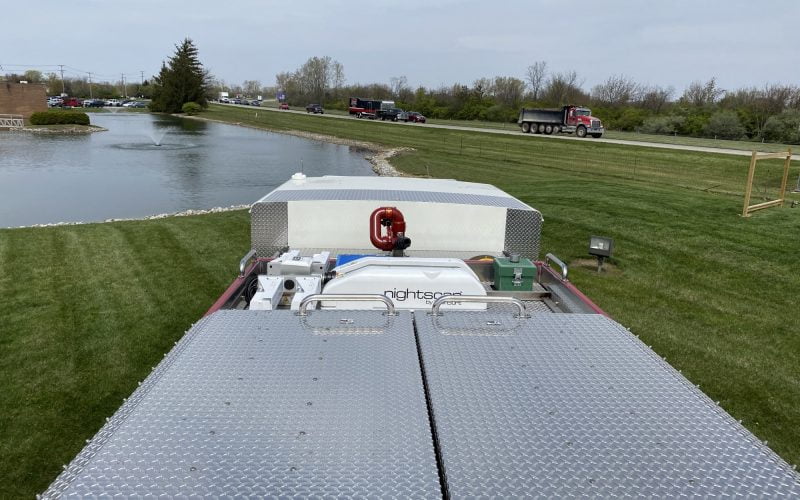

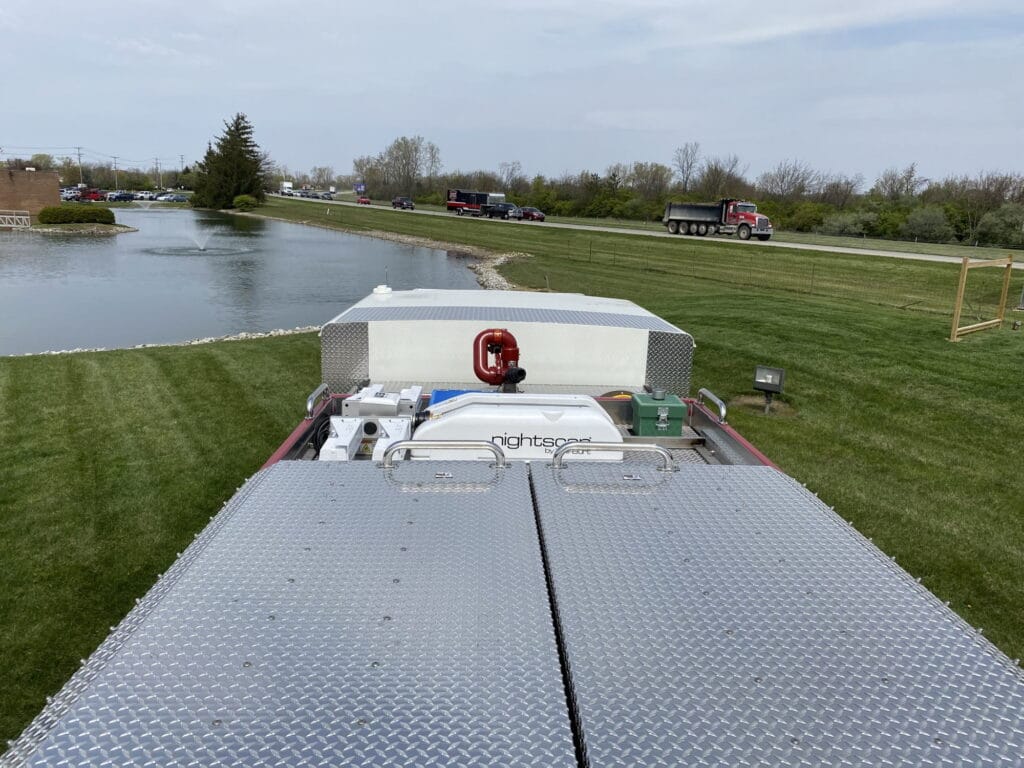

  • Will Burt LED 120V Light Tower
  • Smartpower 10KW Generator
  • Whelen TAL65 LED Traffic Advisor
