More Recent Deliveries

Delivery Date:
11/16/2018
Department Name:
Winston-Salem Fire Department
Department City / State:
Winston-Salem, NC

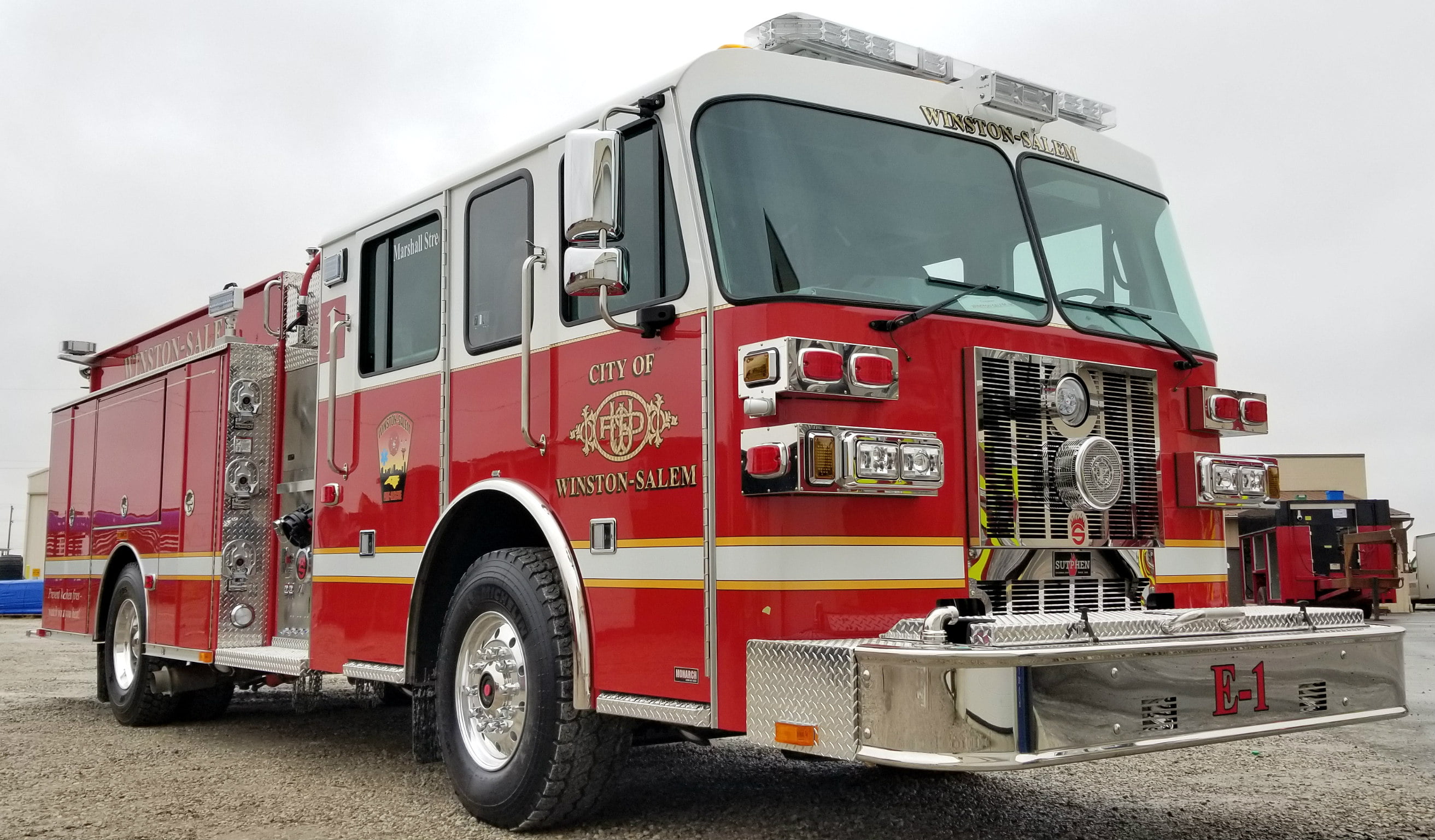

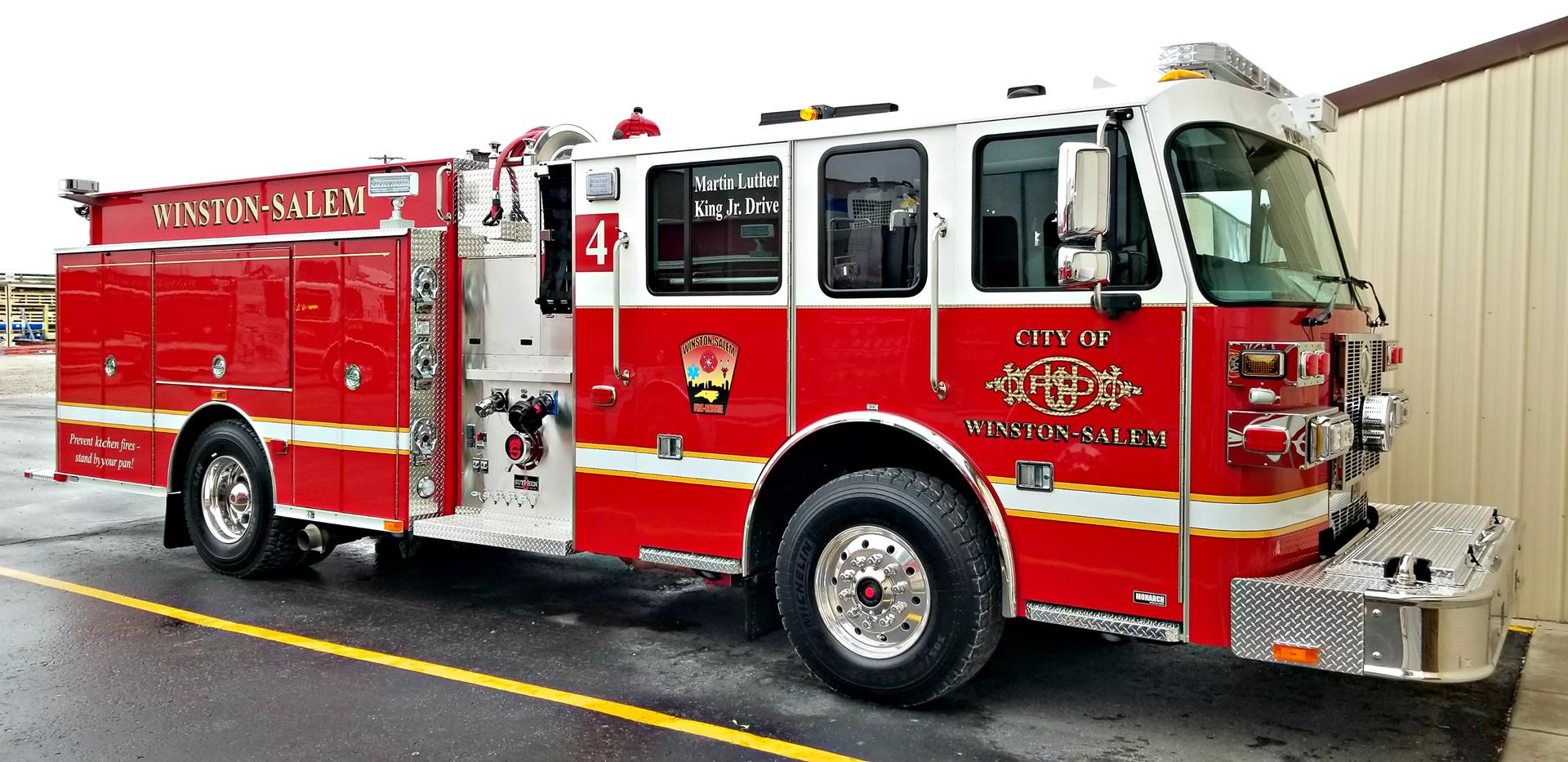

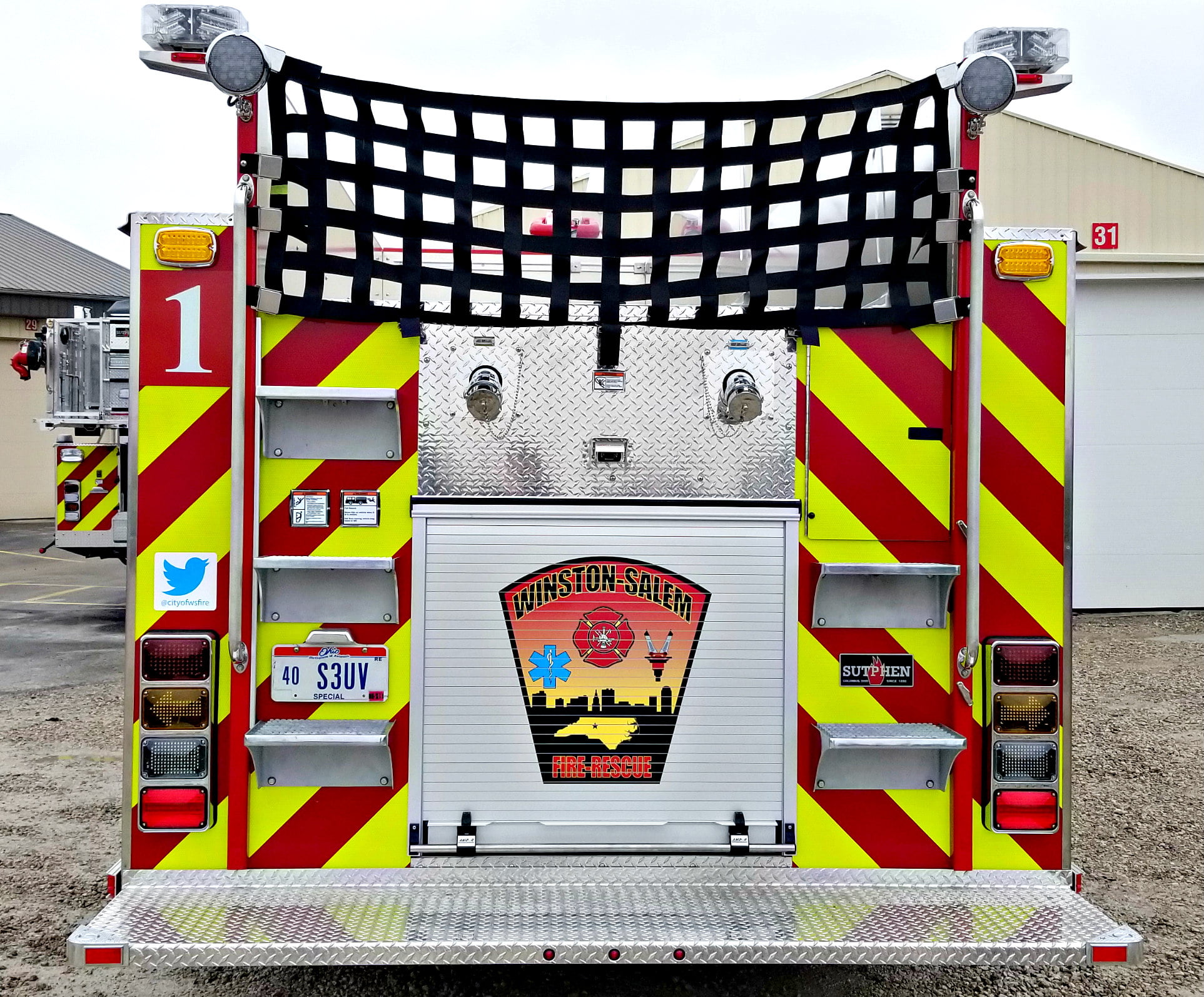

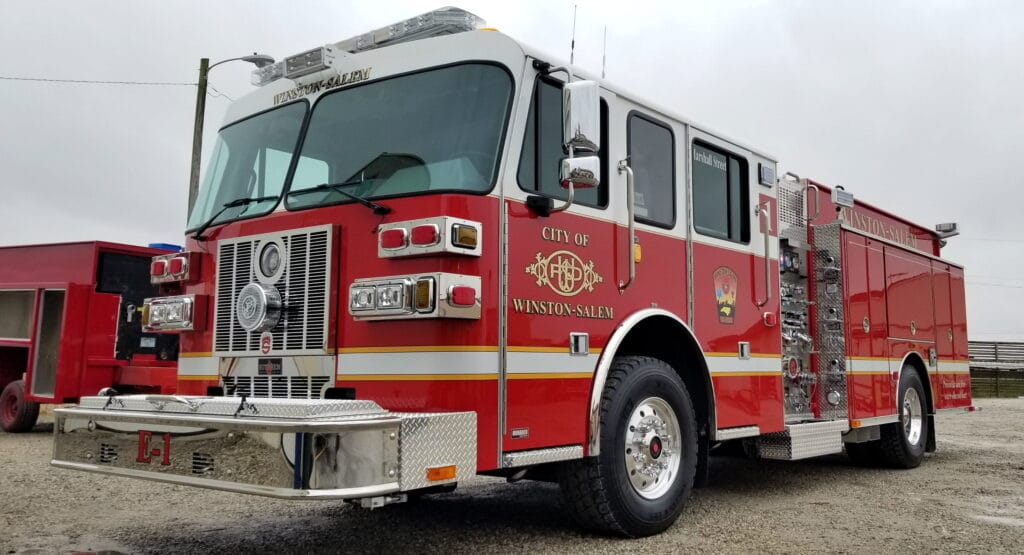

Sutphen Corporation – HS #6151-52

Dealer – Stevens Fire Equipment

WHEEL BASE: 199”

TRAVEL HEIGHT: 9’-5”

TRAVEL LENGTH: 33’-6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a Flat Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2” Right/Front Hosebed, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½”, 2 ½” and (2) 2” Crosslays with 1 ½” Swivel
  • 650-Gallon Water Tank

BODY:

  • 3/16” Extruded Aluminum
  • 234 cu. ft. Total Compartment Space
  • Hinged Compartment Doors
  • Ladder Chute
  • Alco-Lite PEL-24

OPTIONAL EQUIPMENT:

  • 24” Bumper Extension
  • Safety Vision Camera System
  • 10KW Smart Power Generator
  • Pike Pole Chutes (3)
  • Command Light Tower
  • Hannay Electric Cord Reel, 175’ (1)
  • Whelen Freedom IV LED Light Bar
