Delivery Date:
11/25/2021
Department Name:
Winfield Volunteer Fire Department
Department City / State:
Winfield, WV
Truck Type:
Sutphen Corporation – HS #6844-45
Dealer – Heritage Fire Equipment
WHEELBASE: 163 ½”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 28’
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS 3000

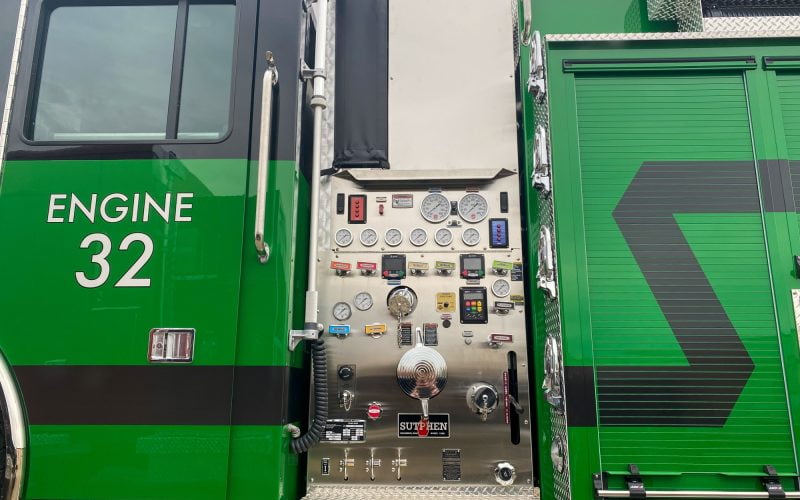

PUMP: Hale
- XS QMAX-1500 GPM, Single Stage Pump
- Discharges: (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left, (1) 2 ½” Left Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Right Rear, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank

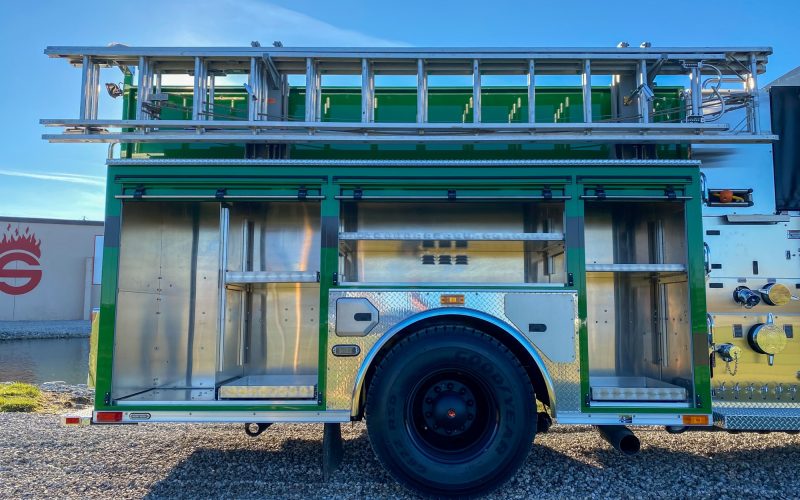

BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors, Painted
- Over 240 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 35’ 3-Section & 14’ Roof & 10’ Folding
- Body: S4 – Aluminum 31/53 Electric Ladder Rack
ADDITIONAL EQUIPMENT:
- 6” Formed Steel Channel Bumper, Painted
- Federal Q2B Siren, Grille Mount
- Camera: FRC Inview Trueview, Single Camera
- Inverter: Vanner, TS12-3000
- Hannay Electric Cord Reel, 150’ (1)
- Ziamatic Quic-Lift Electric Ladder Rack
- Whelen Freedom IV (8) LED Light Bar
- Whelen L31 Red LEDs
- Firetech 12V LED Brow Light
- FRC Spectra 12V LED Tele
