Delivery Date:
08/13/2019
Department Name:
Volunteer Fire Company #1
Department City / State:
Chsapeake City, MD

Sutphen Corporation – HS #6438

WHEEL BASE: 196”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 32’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

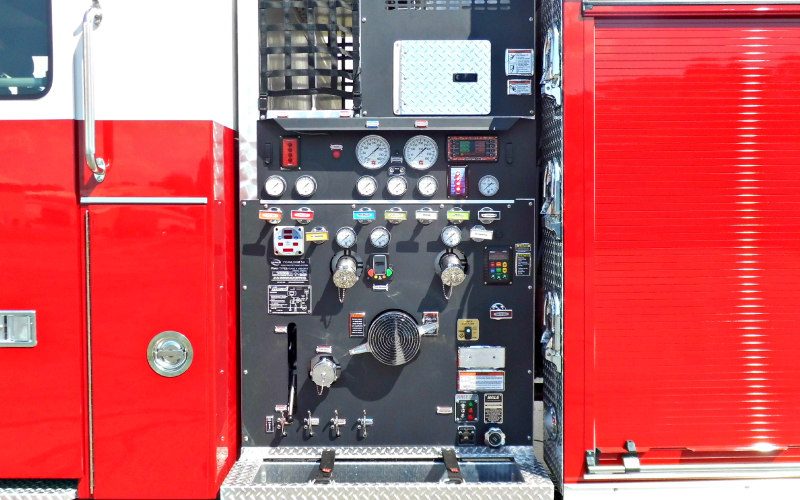

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • Monitor: TFT XFC-42 Crossfire w/ Safety Flow Quad Stack Tips and Stream Shaper
  • Crosslays: (2) 2” w/ 1 ½” Swivels
  • 1000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale SmartFoam 5.0

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladders (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • FRC, Inview Trueview, Camera System
  • Federal Q2B Siren, Grille Mount
  • 8KW Smart Power Generator
  • Hannay Electric Cord Reel, 150 (1)
  • FRC Spectra Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen 900 LED Scene Lights
