Delivery Date:
10/20/2019
Department Name:
Utica Fire Department
Department City / State:
Utica, NY

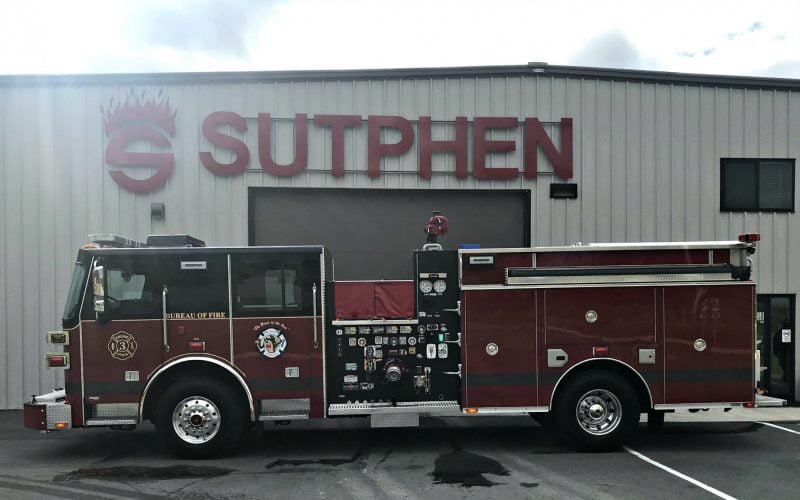

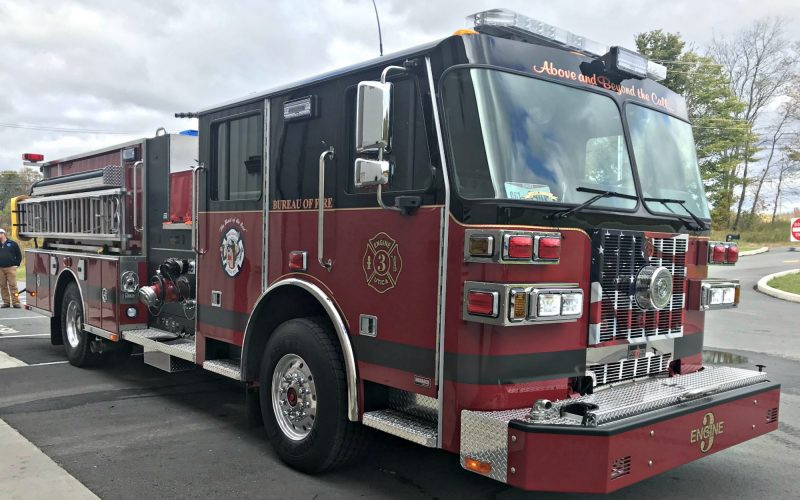

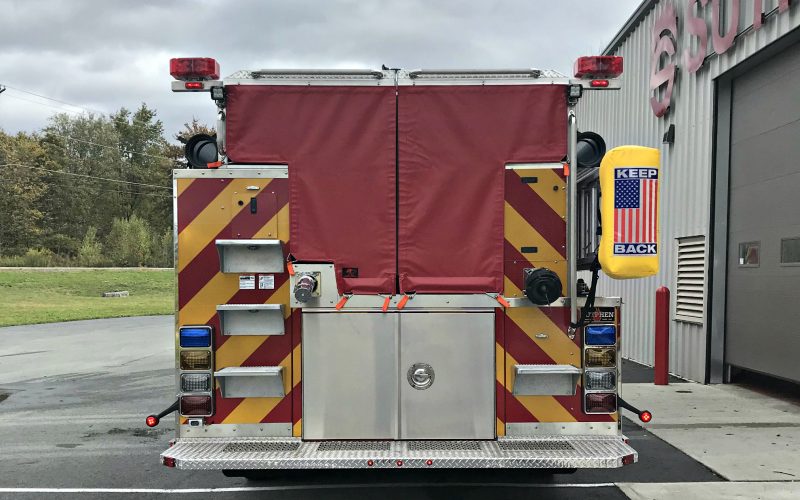

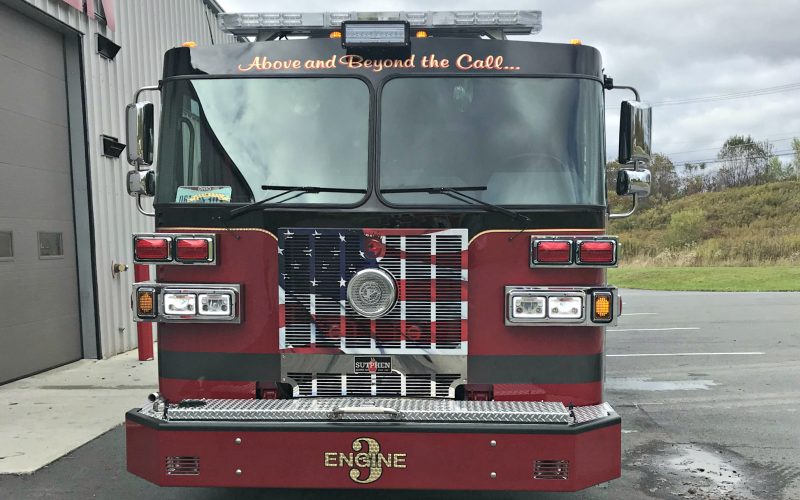

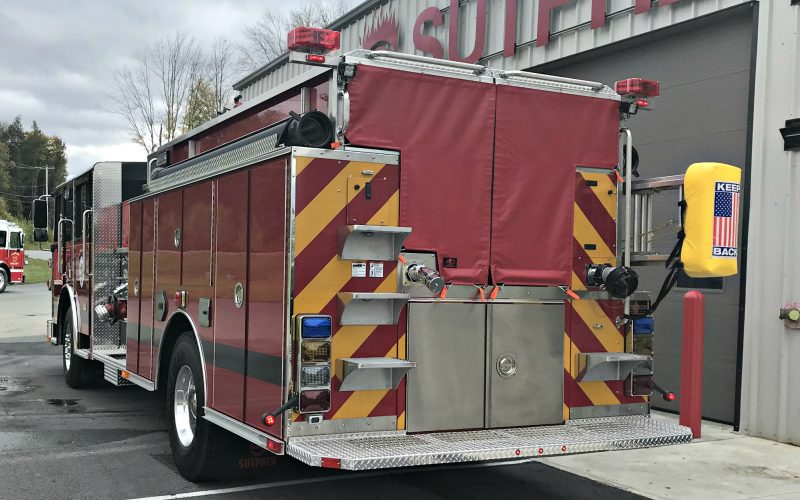

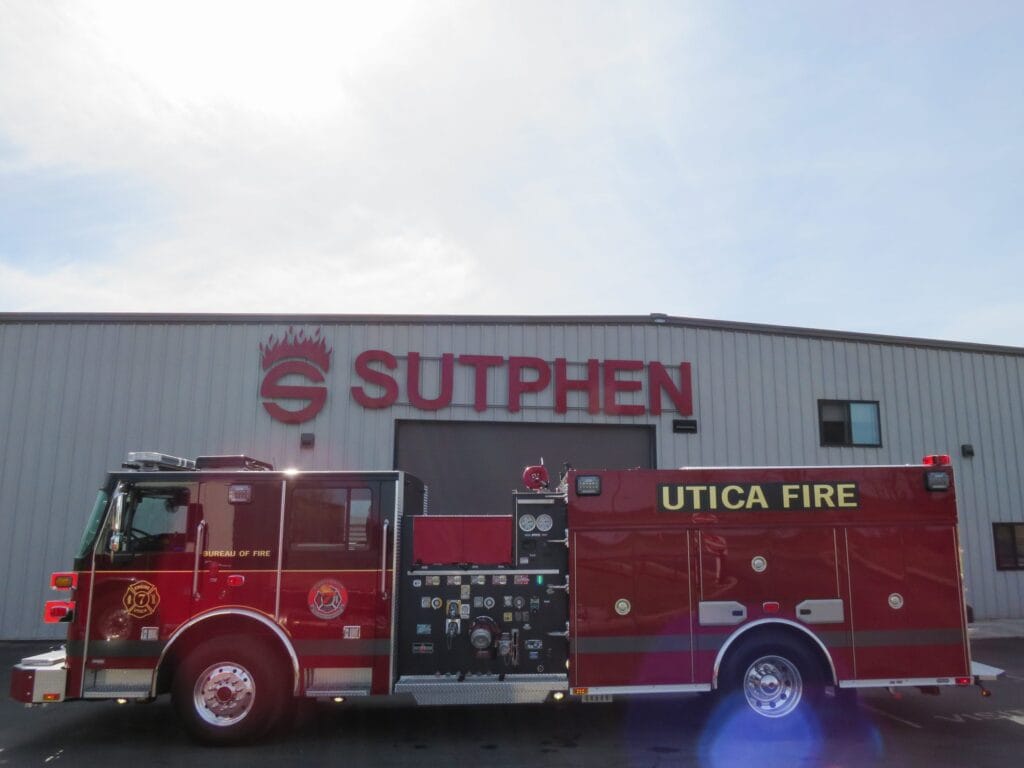

Sutphen Corporation – HS #6437

Dealer – Vander Molen Fire Apparatus Sales and Service

WHEEL BASE: 200”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 32’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Waterous

  • CSU-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (4) 2 ½” Crosslays, 2 ½” Swivel
  • Monitor: TFT Hurricane, Manual 1250 GPM
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Hinged Compartment Doors
  • Over 154 cu. ft. Total Compartment Space
  • Duo-Safety Ladders (900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding)
  • Body: PS-11 Res. 40/47 Low Right

OPTIONAL EQUIPMENT:

  • Federal Q2B Siren, Grille Mount
  • 18” Formed Steel Channel, Bumper Extension
  • Intec, Single Camera, Camera System
  • Hannay Electric Cord Reel, 100’ (1)
  • Pike Pole Storage Compartments (3)
  • Whelen FN72QLED Lightbar
  • FRC Spectra Scene Light (12V)
  • FRC Spectra Brow Light
