Delivery Date:
09/16/2021
Department Name:

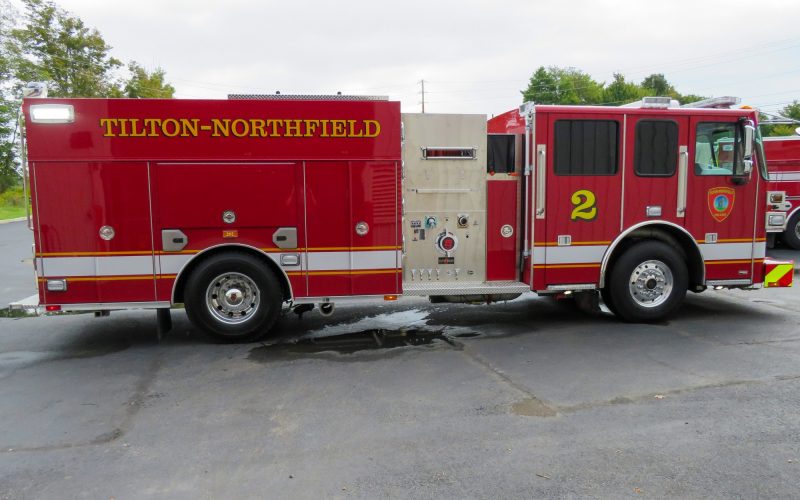

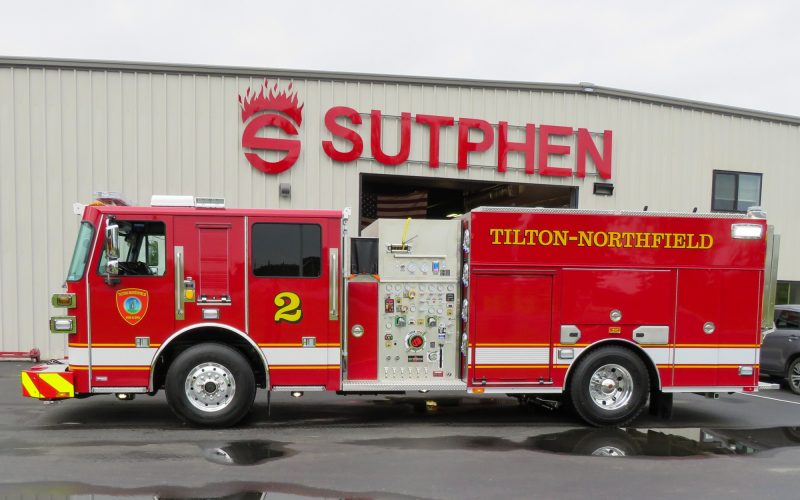

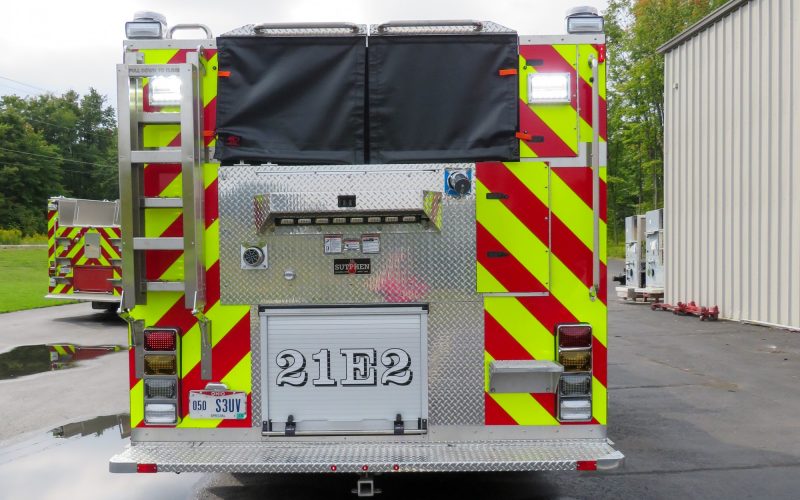

Tilton Fire Department
Department City / State:
Tilton, NH
Truck Type:
Sutphen Corporation – HS #6892
Dealer – Dingee Machine
WHEELBASE: 199”
TRAVEL HEIGHT: 9’ – 4”
TRAVEL LENGTH: 32’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a Flat Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X 12, 500 HP
- Alternator: Delco-Remy 420 AMP
- Transmission: Allison Gen 5, EVS 4000
PUMP: Hale
- CSU-1750 GPM, Single Stage
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe Right Rear, (2) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 3” Deck Gun
- Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
- 1,000-Gallon Water Tank
BODY: Sutphen
- #304 Huckbolted Stainless Steel
- Amdor Roll-Up Compartment Doors
- Over 245 cu. ft. Total Compartment Space
- Alco-Light Ladder Compliment (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Body: PS-06 Res 45/47 Ladder Chute and Hatch Compartment
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel, Bumper Extension
- Federal Q2B, Flush Bumper Mount
- Hannay Electric Cord Reel, 150’ (1)
- Generator: Harrison 6KW
- Camera: FRC, Inview Trueview
- Whelen PFH2 Brow Lights (2)
- Whelen 72” Freedom Lightbar with Opticom
- Whelen Tele Lights
