Delivery Date:
06/17/2022
Department Name:
Springville Fire & Rescue
Department City / State:
Springville, AL

Sutphen Corporation – HS #7055

Dealer – Williams Fire Apparatus

WHEELBASE: 199”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 32’ – 6”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

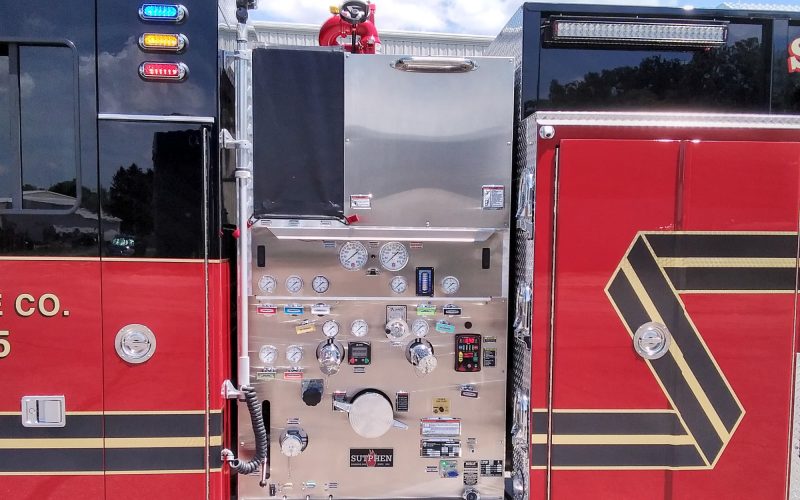

PUMP:                  Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • Crosslays: (2) 1 ½” & (1) 2 ½” w/ Swivels
  • 750-Gallon Water Tank

BODY:                   Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Doors, Painted
  • Over 245 cu ft. Total Compartment Space
  • Alco-Lite Pel-24 Ladder Package: 24’ 2-section & PRL-14, 14’ Roof & 10’ Folding
  • Body: G9 – Alum 40/51 Ladders Thru Tank

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Whelen Freedom LED Lightbar
  • HIVIZ 72” Brow Light
  • Whelen M9 Scene Light
  • FRC Spectra Tele Lights
  • Whelen 600 LED Quad Tail Lights
