Delivery Date:
09/19/2019
Department Name:
Southington Fire Department
Department City / State:
Southington, CT

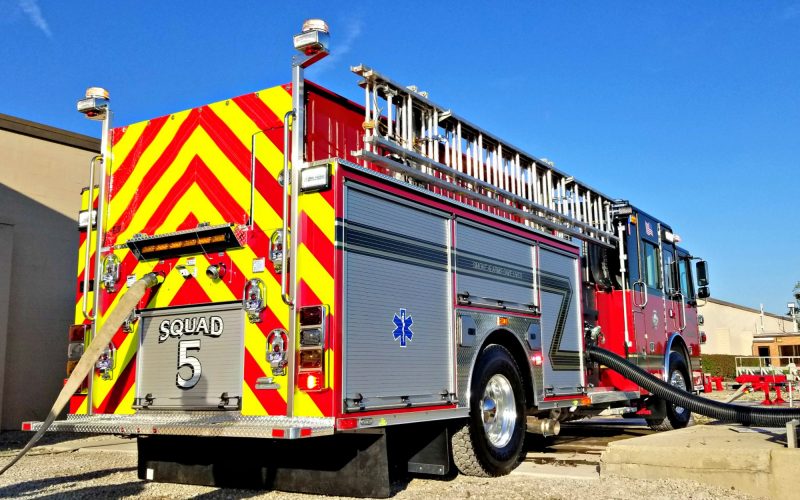

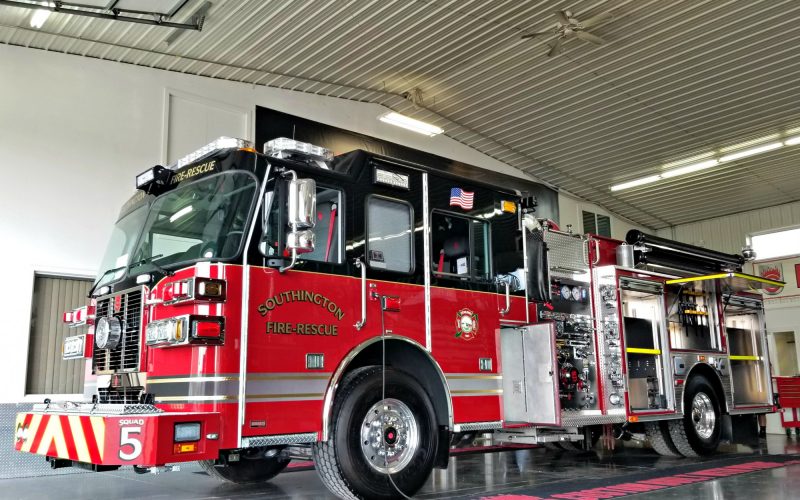

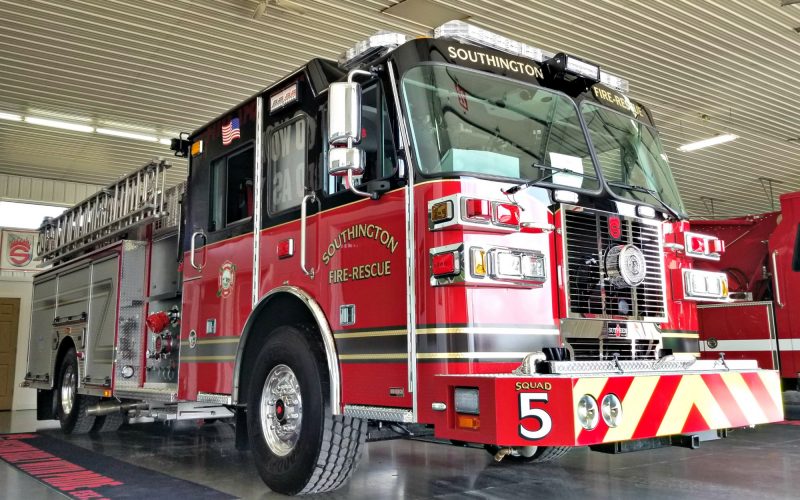

Sutphen Corporation – HS #6333

WHEEL BASE: 214”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 33’ – 8”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

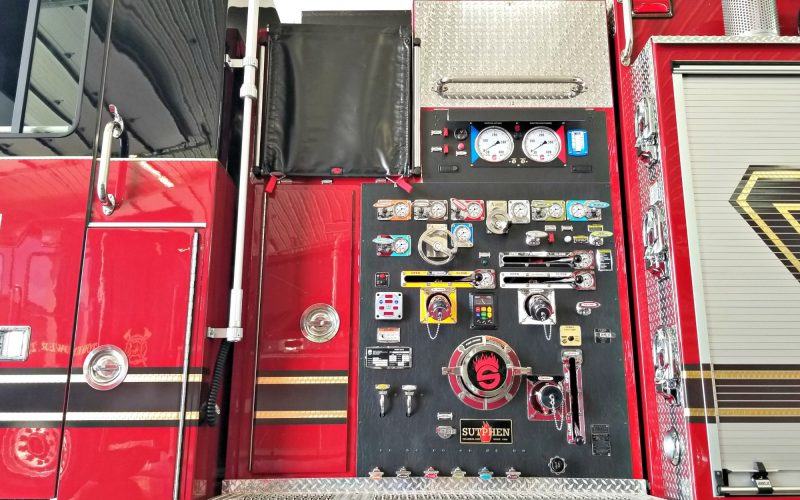

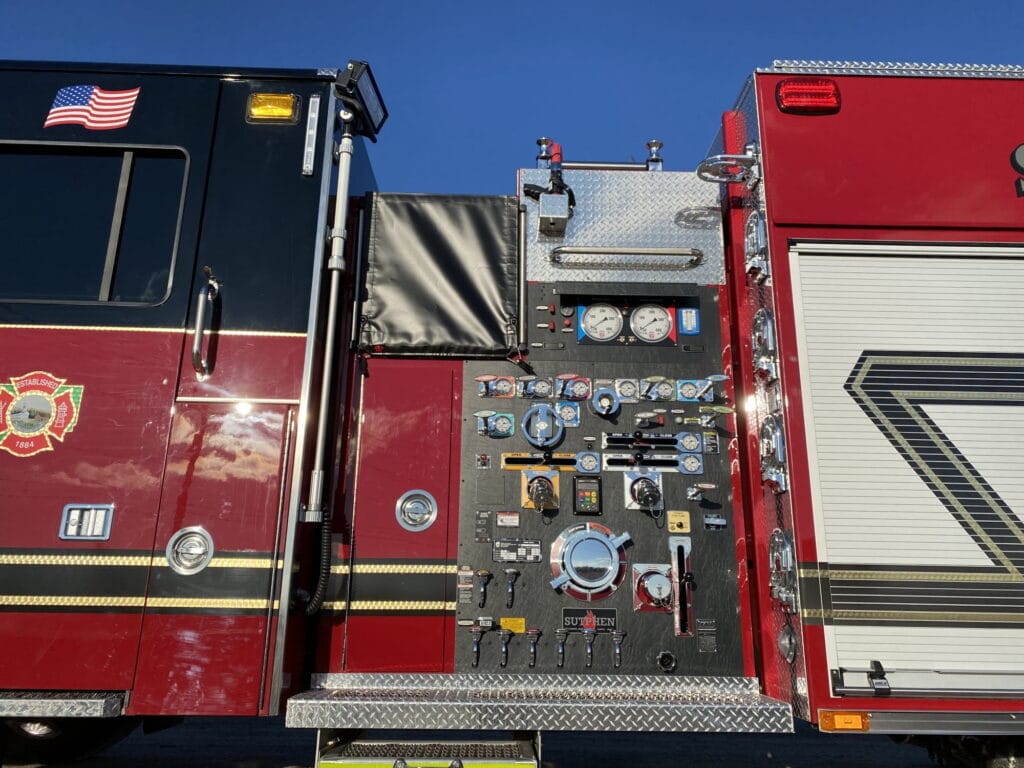

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 750-Gallon Water Tank
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel

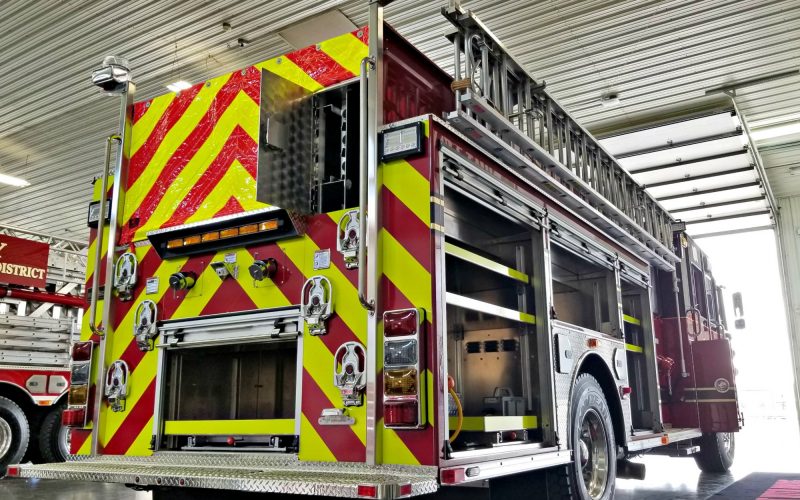

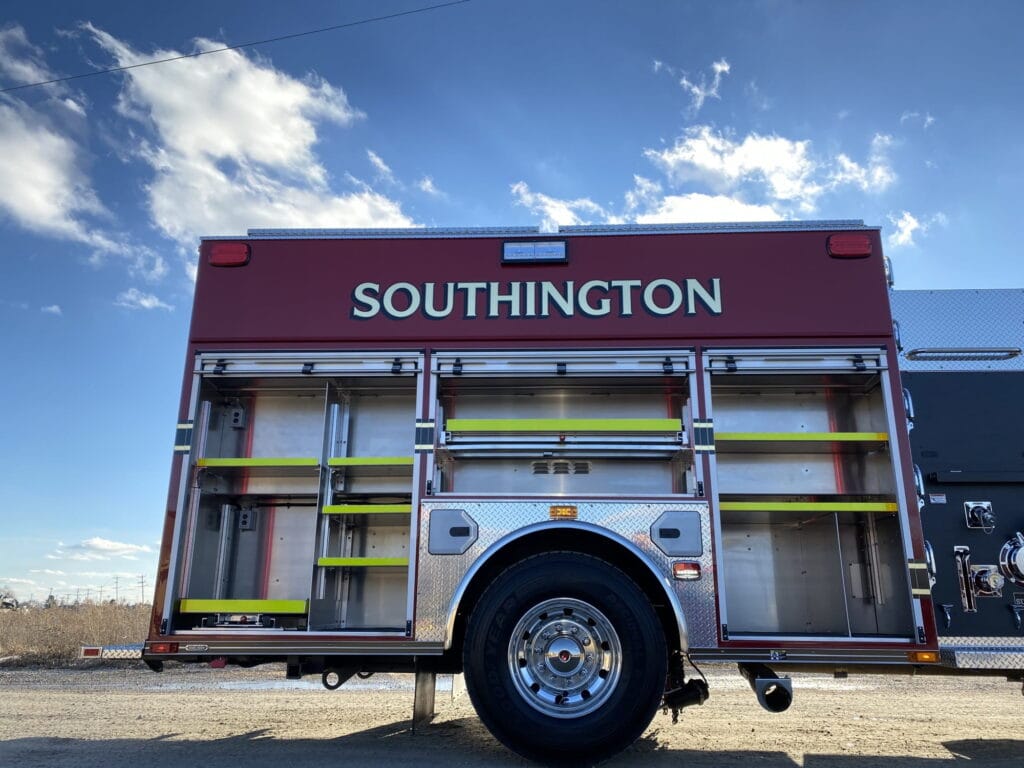

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors

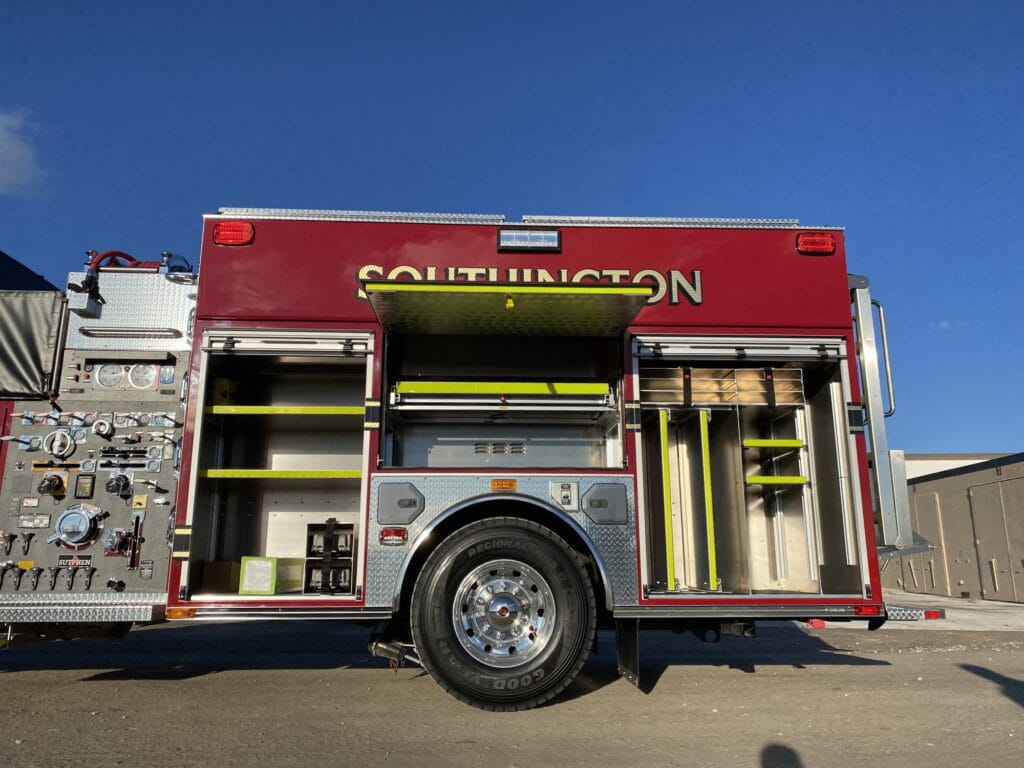

  • Over 237 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (1200A 28’ 2-Section & 875A 16’ Double Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 18” Extreme-Duty Steel Bumper Extension
  • Ziamatic Quic-Lift Electric Ladder Rack
  • (3) Pike Pole Storage Compt.
  • Voyager 3, Camera System
  • Federal Q2B, Grille Mount
  • Hannay Electric Cord Reel, 200’ (1)
  • 6KW Smart Power Generator
  • Whelen Freedom IV (14) LED Lightbar
  • Whelen LED Brow
  • Whelen LED Freedom Minis
  • Whelen LED Scene Lights
  • Whelen LED Tele Lights
