Delivery Date:
05/16/2020
Department Name:
Shafton Volunteer Fire Department
Department City / State:
Irwin, PA

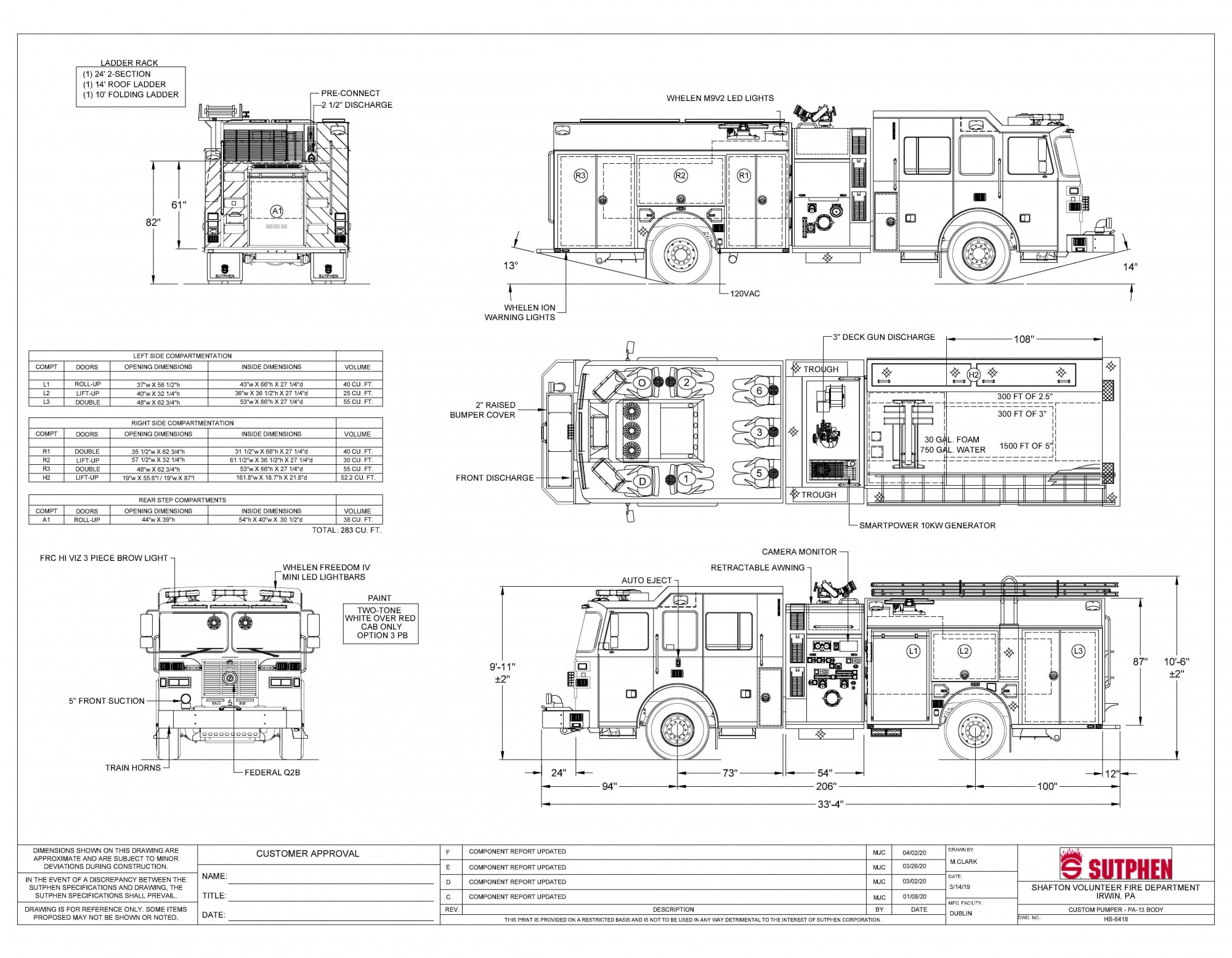

WHEELBASE: 206”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 33’ – 4”

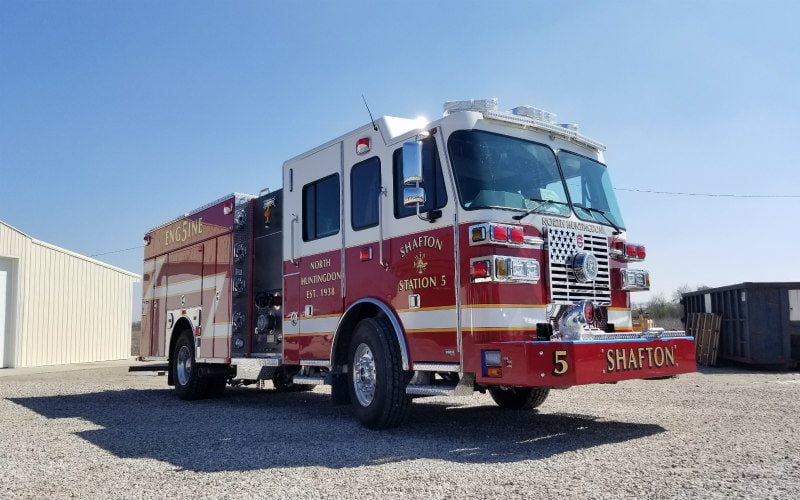

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 13” tall Double Domex Frame Rails
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Right, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½” Crosslay
  • Speedlay: (2) 1 ½” w/ Lift-out Tray
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: FoamPro 2002

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • 283 cu. ft. Total Compartment Space

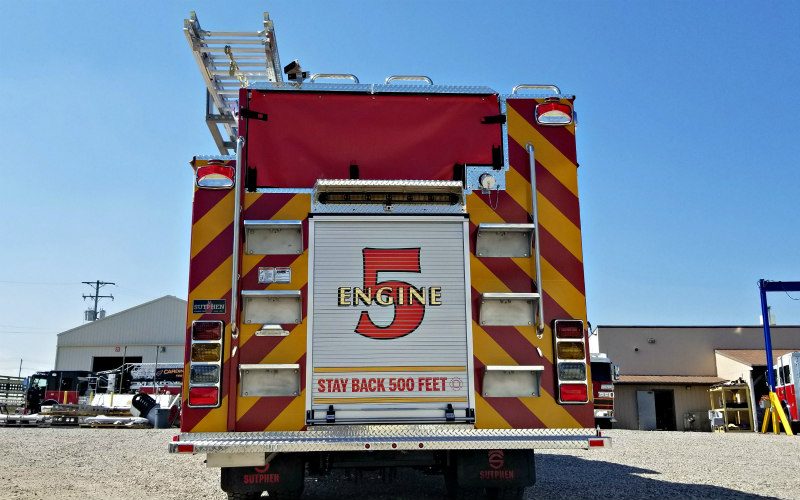

  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & 14’ Roof & 10’ Folding)
  • Body: PA-13, Lad Rack

ADDITIONAL EQUIPMENT:

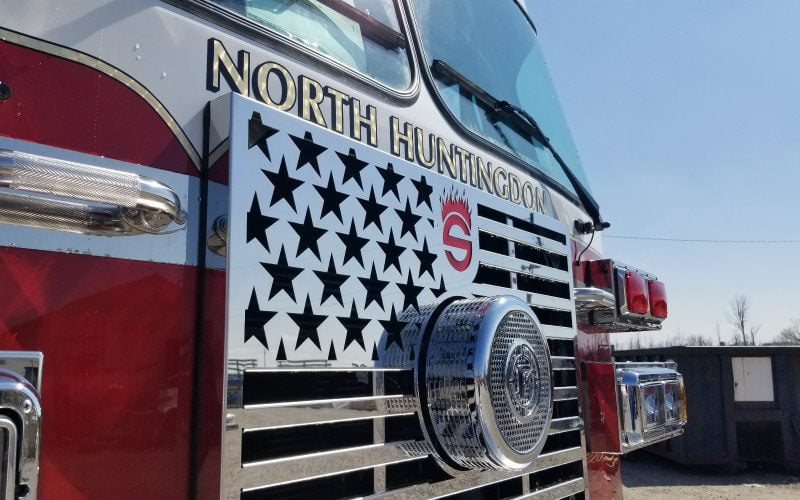

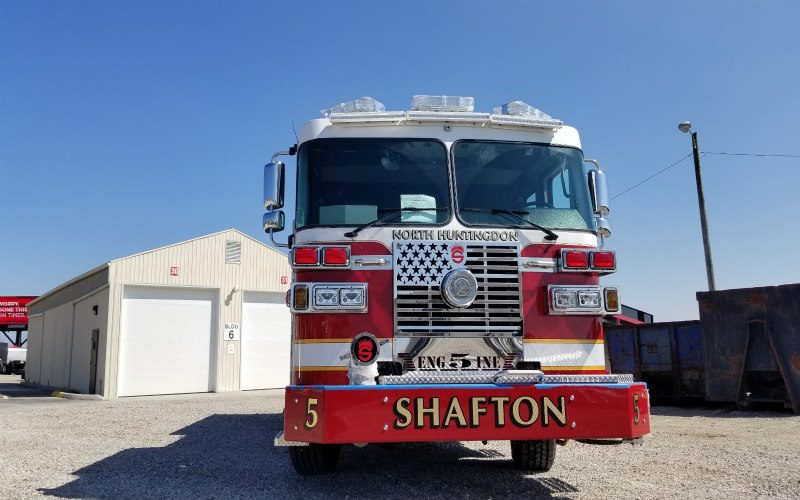

  • 24” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Brigade Backeye 360 Camera System
  • Smart Power 10KW Generator
  • 4 Bottle Compartments
  • FRC HiViz Brow Light
  • Whelen M9V2 LED Scene Lights
  • Whelen Freedom IV Lightbar
  • Whelen Ion Warning Lights
