Delivery Date:
11/17/2021
Department Name:
Seven Hills Fire Department
Department City / State:
Seven Hills, Ohio

Sutphen Corporation – HS #6960

Dealer – Herb Fire Equipment

WHEELBASE: 203”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 33’ – 4”

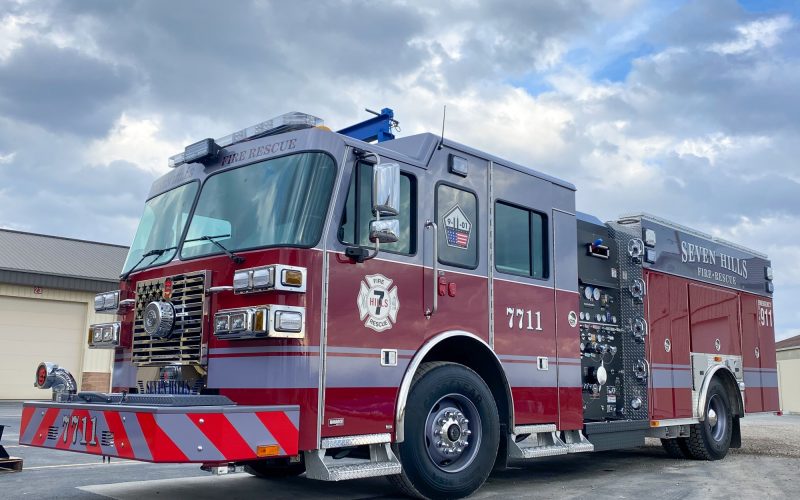

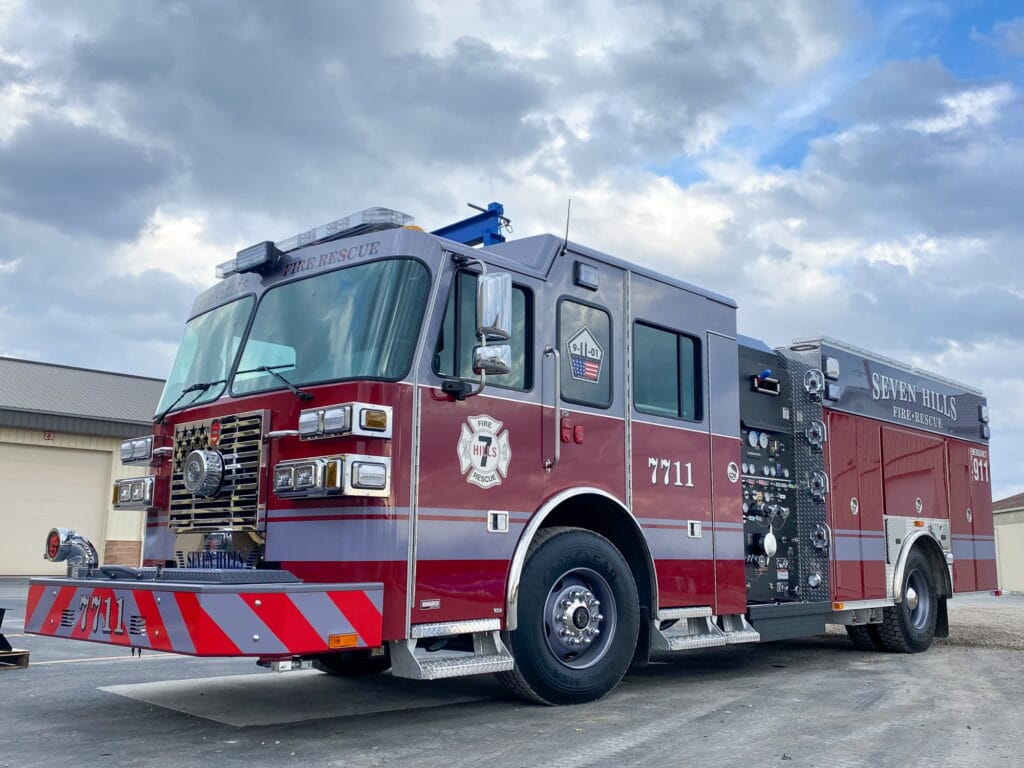

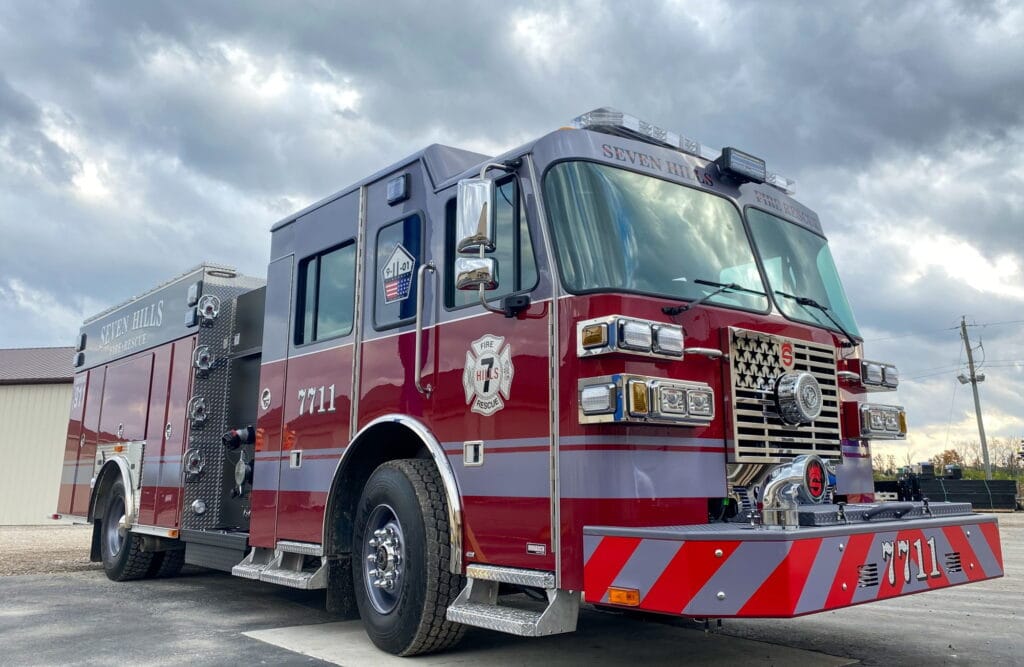

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS 3000

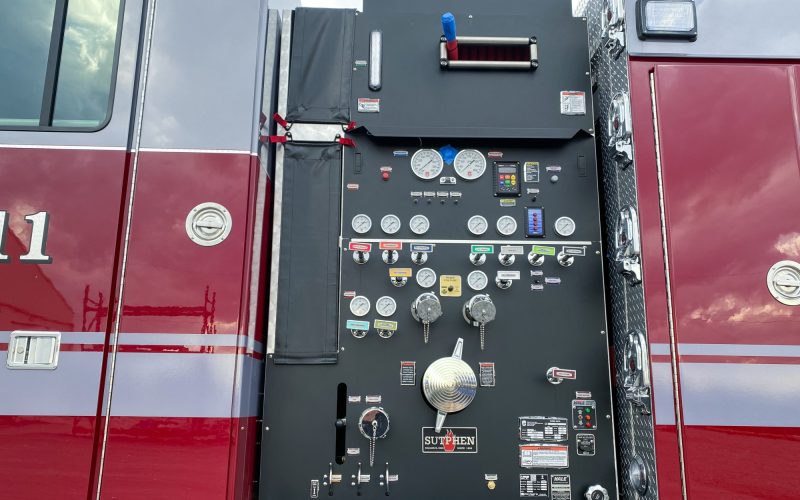

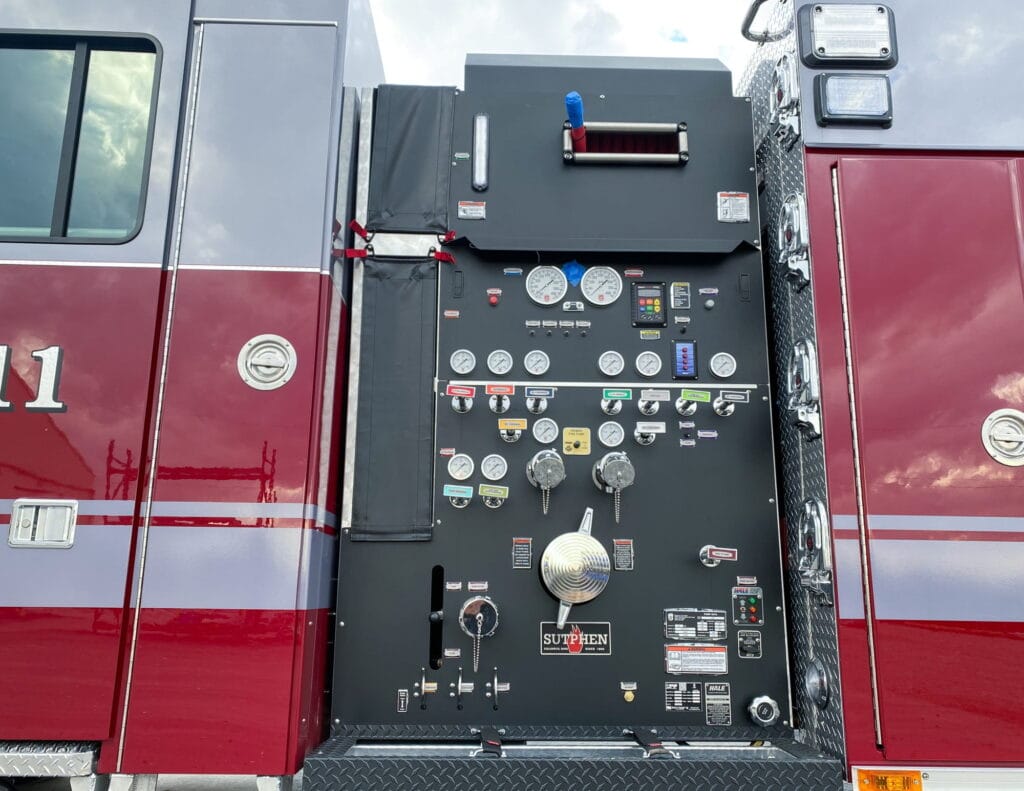

PUMP:                 Hale

  • XS QMAX 1500 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½”
  • Speedlays: (2) 2” w/ Swivels and Poly Lift-Out Trays
  • 750-Gallon Water Tank

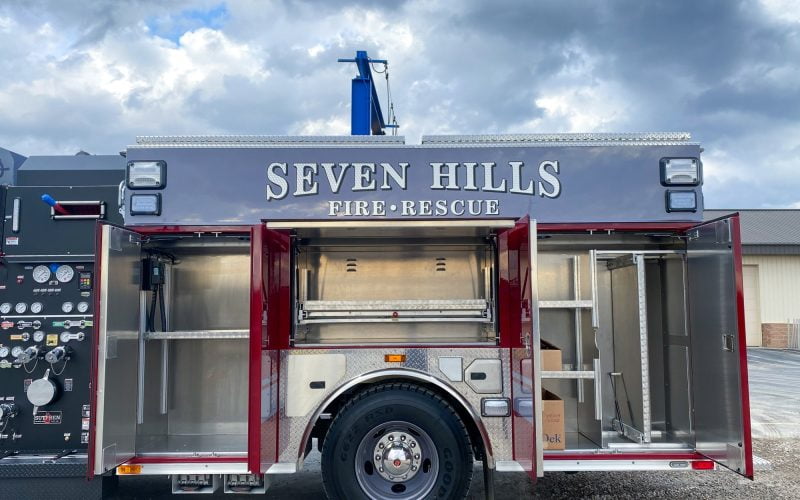

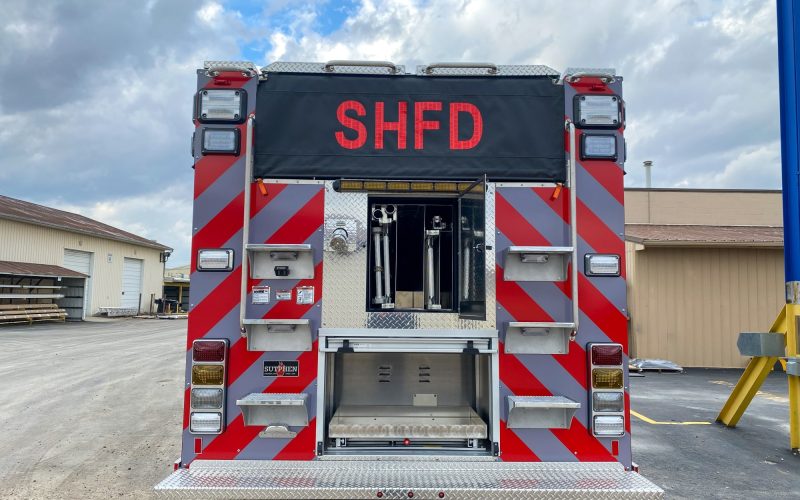

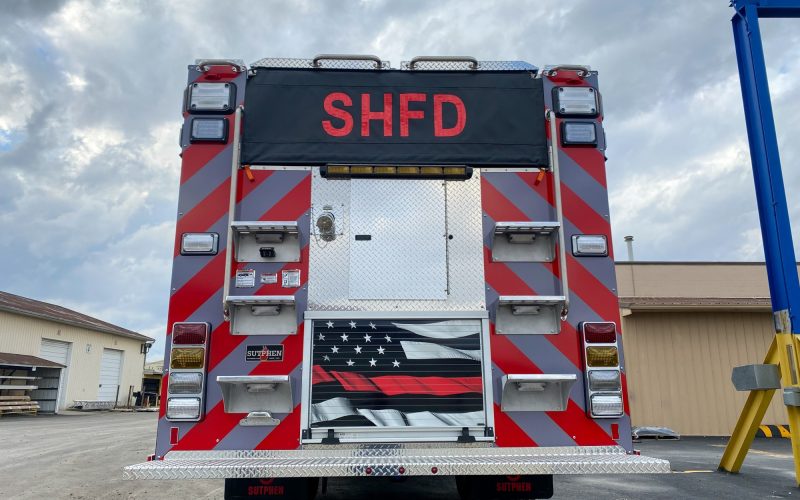

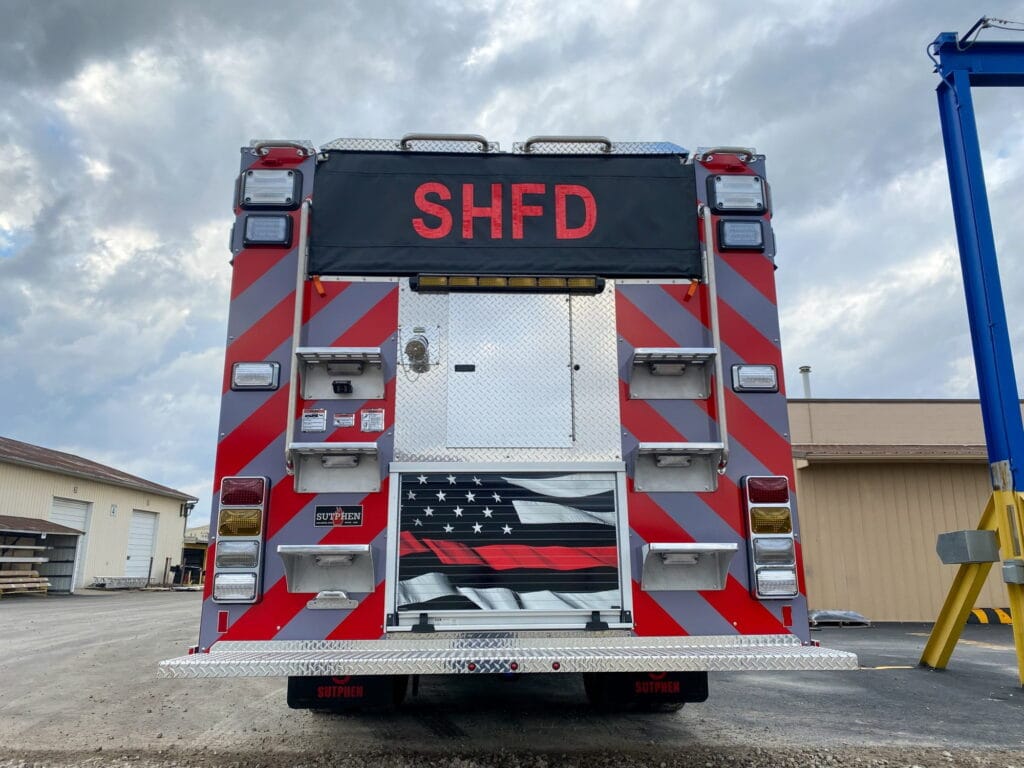

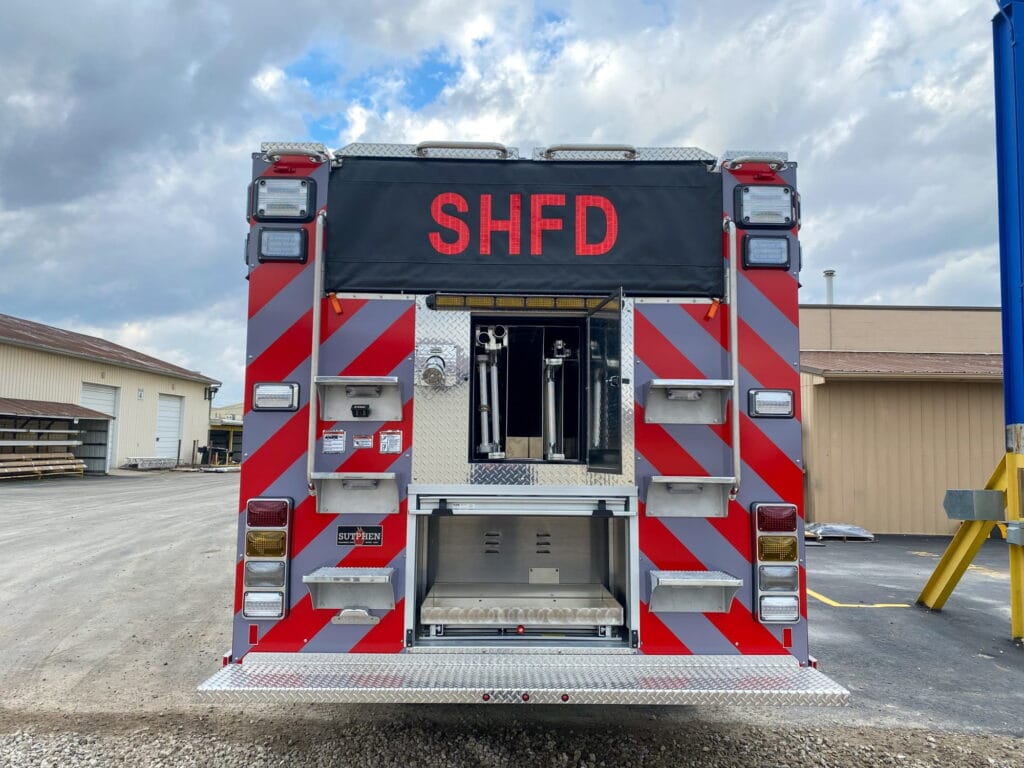

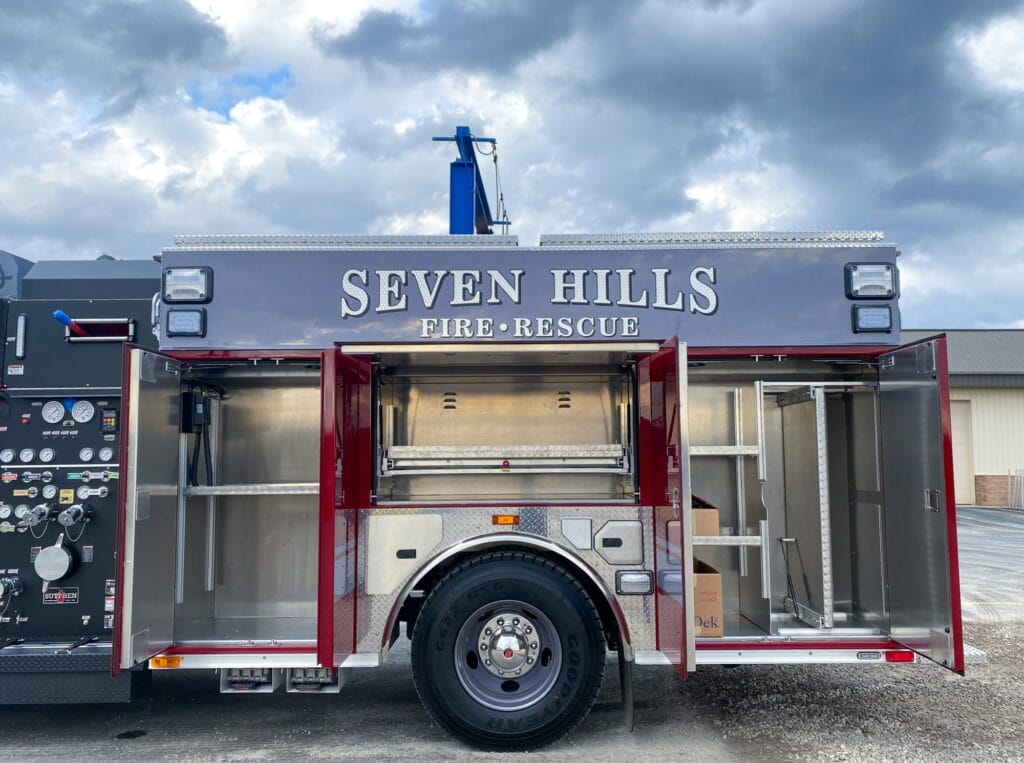

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: PEL-24 24’ 2-sec & PRL-14 14’ Roof & 10’ Folding
  • Ladder Chute w/ Suction Hose Storage
  • Body: G9 – Aluminum 40/51 Ladders Thru Tank

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • (2) Triple Air Bottle Compartments
  • FRC Spectra Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen 900 Red LED
  • Whelen LED Traffic Advisor
  • Command Light KL415
