Delivery Date:
08/20/2020
Department Name:
Palm Beach County Fire Rescue
Department City / State:
West Palm Beach, FL

Sutphen Corporation – HS #6576

Dealer – South Florida Emergency Vehicles

WHEELBASE: 208”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 34’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

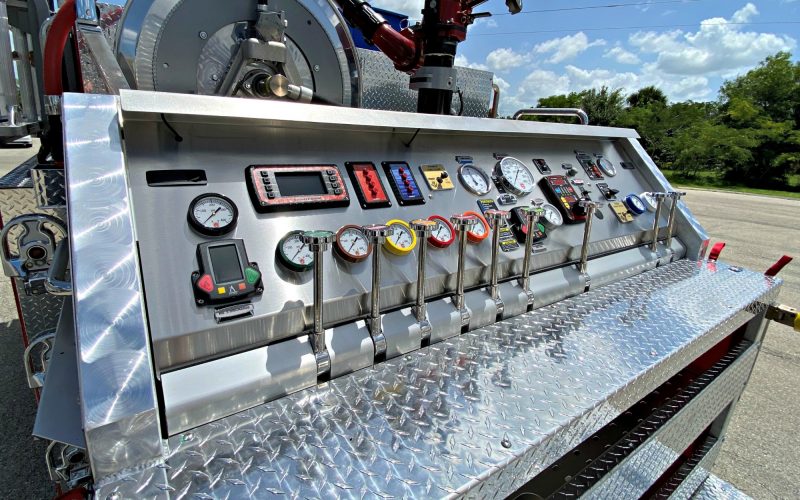

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper Discharge, (1) 3” Deck Gun
  • Speedlay: (2) 2” w/ 1 ½” Swivel
  • 750 -Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: Hale Smartfoam 5.0

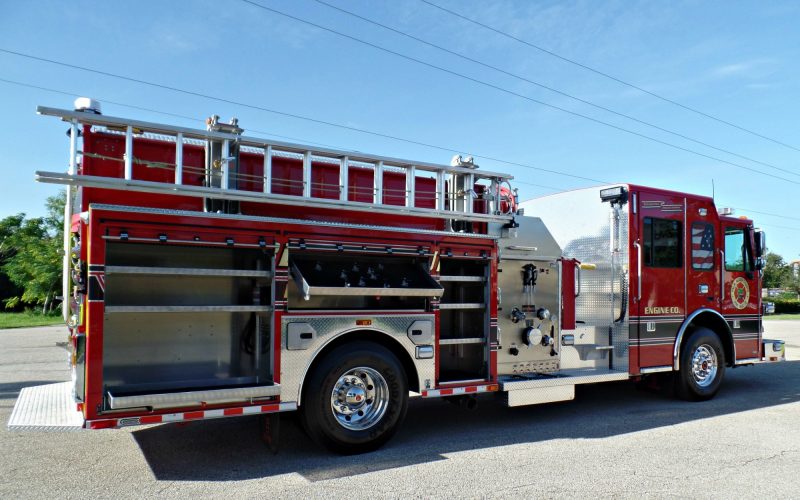

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors

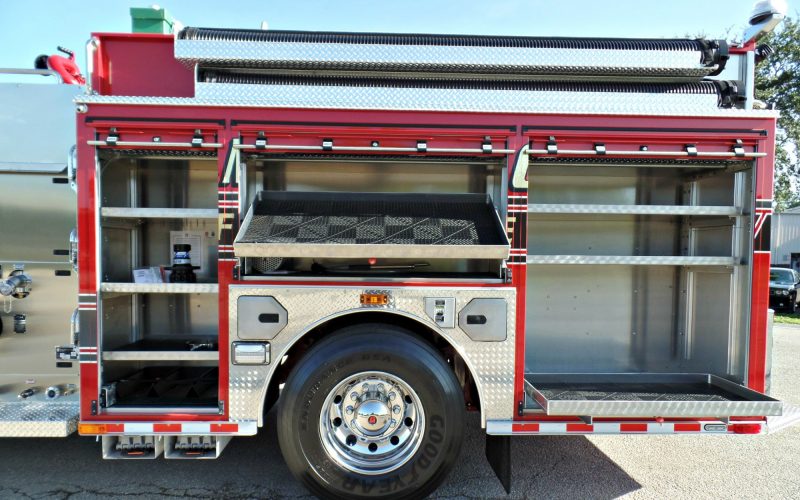

  • Over 240 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: S4-Alum 61/53 Elec. Ladder Rack

ADDITIONAL EQUIPMENT:

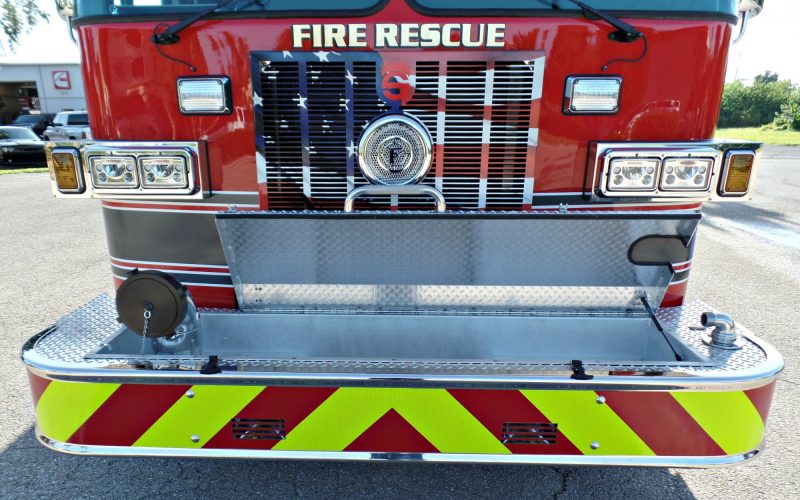

  • 24” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Fusion 1500 Watt Power Invertor
  • Hale EZ Fill System
  • Folding Ladder/3 Pike Pole Storage Compartments
  • Whelen Freedom IV (12) LED Lightbar
  • Whelen PFH2 12V LED Brow
  • Whelen PFH2 12V LED Teles
