Delivery Date:
10/14/2021
Department Name:
Oneonta Fire Department
Department City / State:
Oneonta, AL
Truck Type:

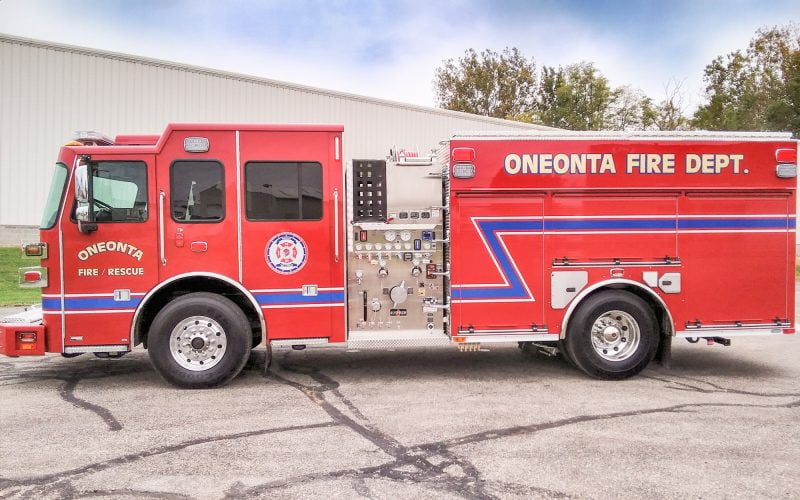

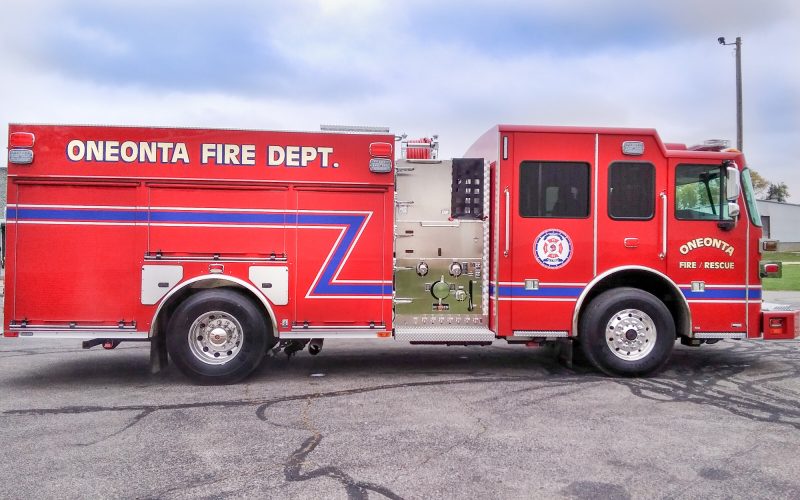

Sutphen Corporation – HS #6917
Dealer – Williams Fire
WHEELBASE: 185”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 31’ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Left, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” Crosslay with 1 ½” Swivel
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System, FoamPro 2001, 2.6 GPM
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Painted Roll-Up Compartment Doors
- Over 290 cu. ft. Total Compartment Space
- Alco-Lite PEL-24 24’ 2 Sections & PRL-14 14’ Roof & 10’ Folding
- Body: G2 – Aluminum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Intview Trueview, Two Cameras
- Whelen Freedom IV 72” LED Light Bar
- Whelen PFH2 Tele Lights
- Whelen M9 Rear Beacon
- Whelen PFH2 12V Scene Lights
- Whelen PRH2 LED Brow Light
