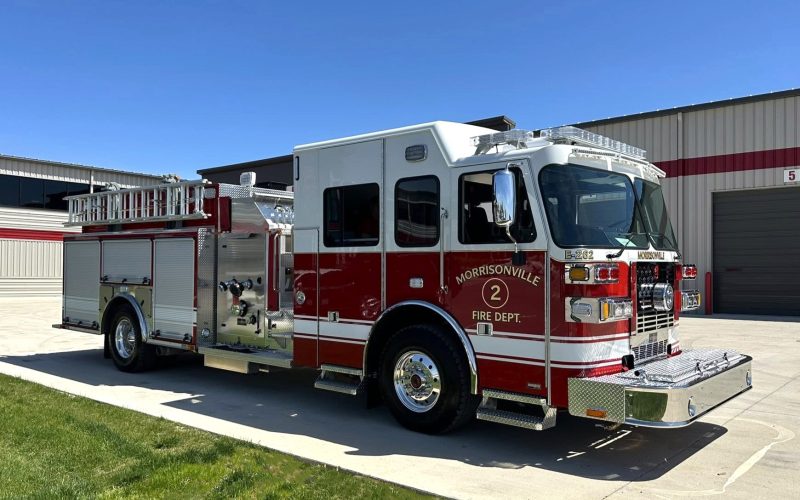

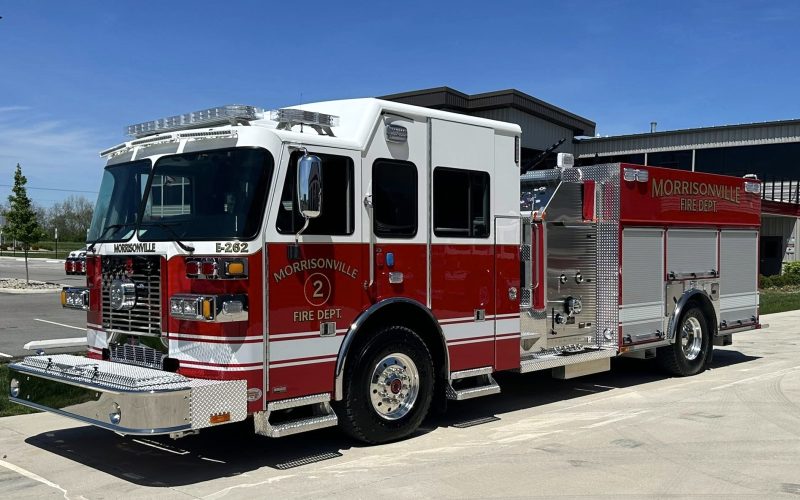

Custom Pumper – Morrisonville Fire Department, NY

Dealer – Vander Molen Fire Apparatus

WHEELBASE: 227”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 35’ – 4”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 15” Raised Roof

• Four-Door, Six-Person Cab
• 10” Double Domex Frame Rails (110K PSI)
• Front Axle and Suspension 20,000 lbs w/ (4) 56” Leafs
• Rear Axle and Suspension 31,000 lbs
• Engine: Cummins L 9, 450 HP
• Alternator: Leece Neville, 420 AMP
• Transmission: Allison Gen 5, EVS3000

PUMP:                 Waterous

• CSU-2000 GPM, Single Stage Pump
• Discharges: (1) 2 ½” Left, (1) 3” Left, (2) 3” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/ Left of Main Hosebed, (1) 1 ½” Front Bumper, 2” Plumbing. (1) 3” Deck Gun
• Crosslay: (1) 2 ½” w/ 2 ½” Swivel (Top Mount)
• Speedlays: (2) 2” w/ 1 ½” Swivel
• 1250-Gallon Water Tank

BODY:                 Sutphen

• 3/16” Extruded Aluminum
• AMDOR Roll-Up Compartment Doors
• Nearly 200 cu ft. Total Compartment Space
• Body: G7 – Alum 40/51 Elec Lad Rack

ADDITIONAL EQUIPMENT:

• 24” Polished Stainless Steel Bumper
• Federal Q2B Siren, Grille Mount
• Camera System: FRC, Inview Trueview, Single Cameras (Wired)
• FireTech 3-Piece 72” LED Brow Light
• Whelen Freedom LED Lightbar
• FireTech SL-GESM 12V Tele Lights
• Whelen M9 Warning Lights

MONITOR:

• TFT XFC-42 Crossfire w/ Safety Flow w/ Quad Stack Tips & Stream Shaper
