Delivery Date:
03/29/2023
Department Name:
Midland Fire Department
Department City / State:
Midland, MI

Dealer – Apollo Fire Apparatus Sales and Service

WHEELBASE: 198”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 32′ – 5”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

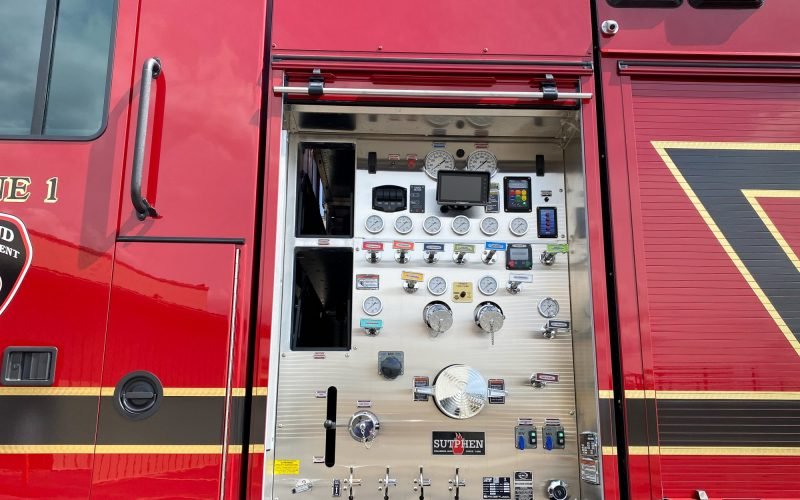

PUMP:                  Hale

  • QMAX XS 1500 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 2” w/ 1 ½” Swivels & Poly Lift-Out Trays
  • 750-Gallon Water Tank
  • 20-Gallon Foam Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: 24’ 2-Section & 14’ Roof & 10’ Folding
  • Body: G2 – Alum 40/51 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Backeye 360
  • Intercom: Wireless, Firecom 5100D, Single Radio
  • Inverter: Kussmaul 1500
  • Roto-Ray Warning Light
  • Whelen PFH2 LED Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen 900 Scene Light
  • Whelen LED Traffic Advisor
