Delivery Date:
04/05/2023
Department Name:
Jackson Township Fire Department
Department City / State:
Massillon, OH
Sutphen Corporation – HS #7088
Dealer – Herb Fire
WHEELBASE: 215 ½”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 34′ – 7 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 18,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Delco Remy 320 AMP
- Transmission: Allison Gen 5, EVS3000

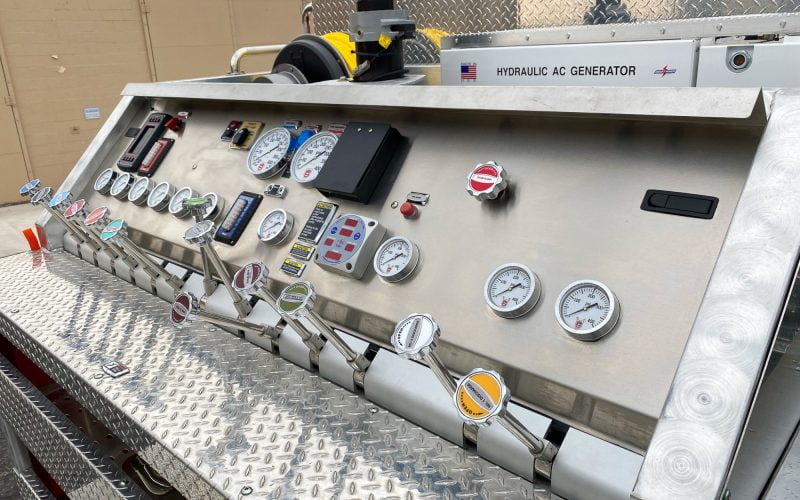

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank
- 50-Gallon Foam Tank
- Foam System: Hale Smartfoam 2.1A
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Over 230 cu. ft. Total Compartment Space
- Body: S2 – Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Hannay Electric Cord Reel, 100’ (1)
- Generator: 10KW Smart Power
- Whelen Freedom IV (12) LED Lightbar
- Whelen Freedom Mini 21” LED Lightbar
- FR Spectra Brow Light 12V
- FRC Spectra 12V LED Scene
