Delivery Date:
10/22/2020
Department Name:

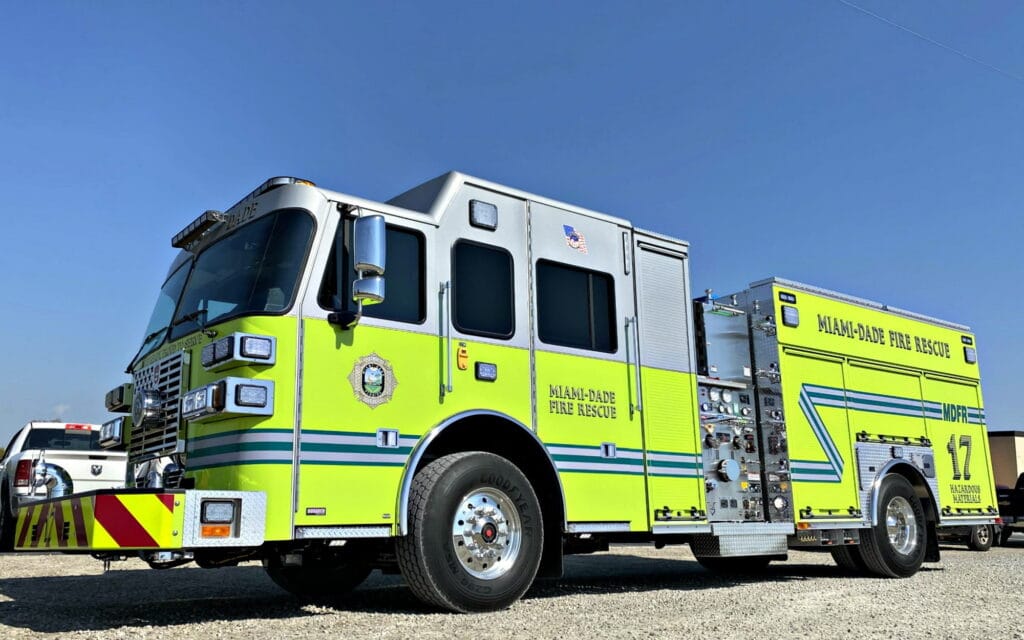

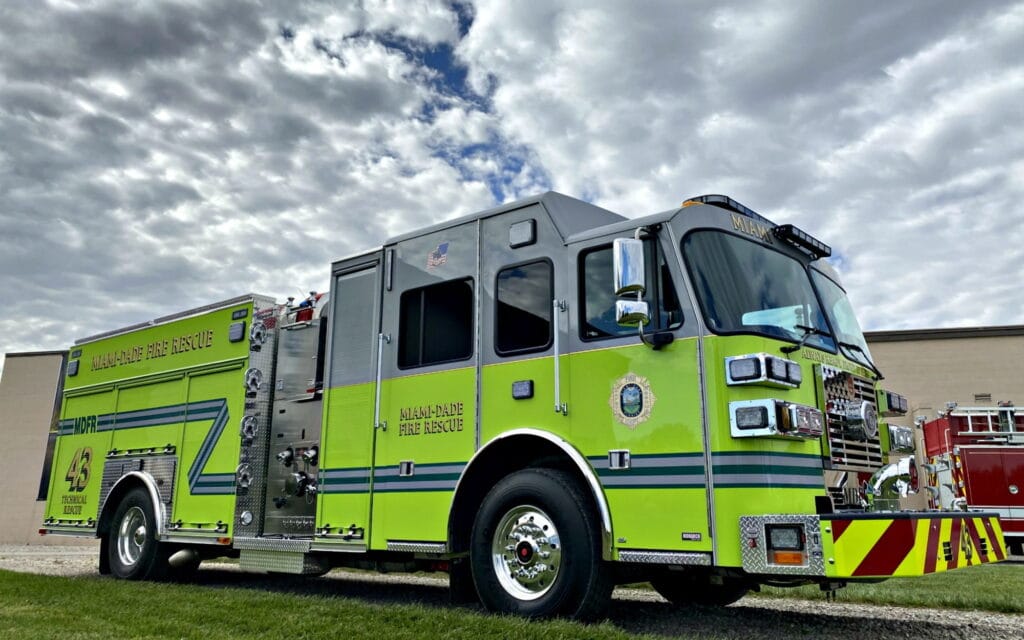

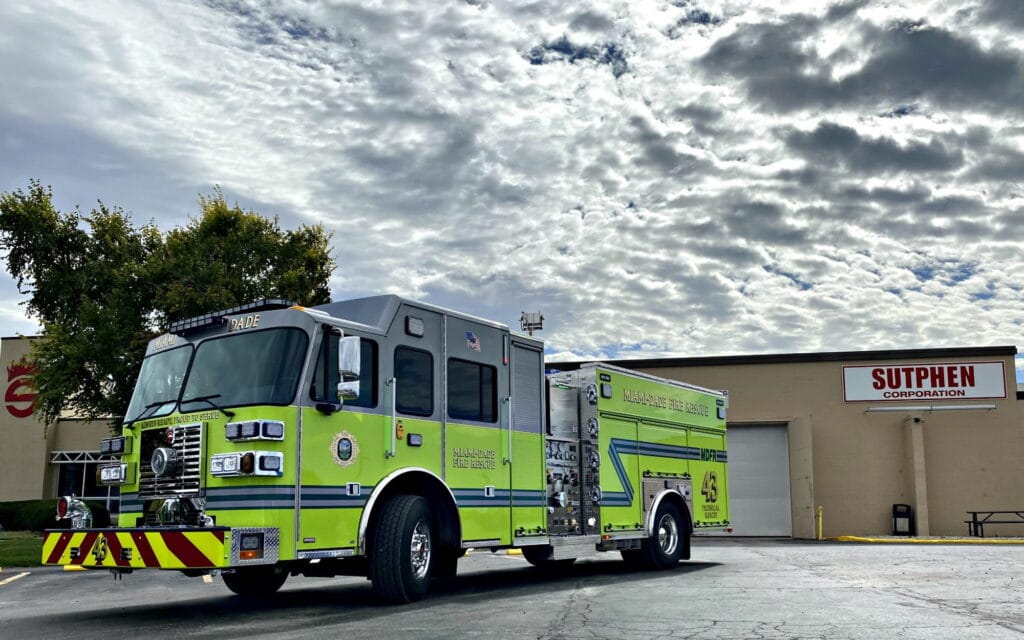

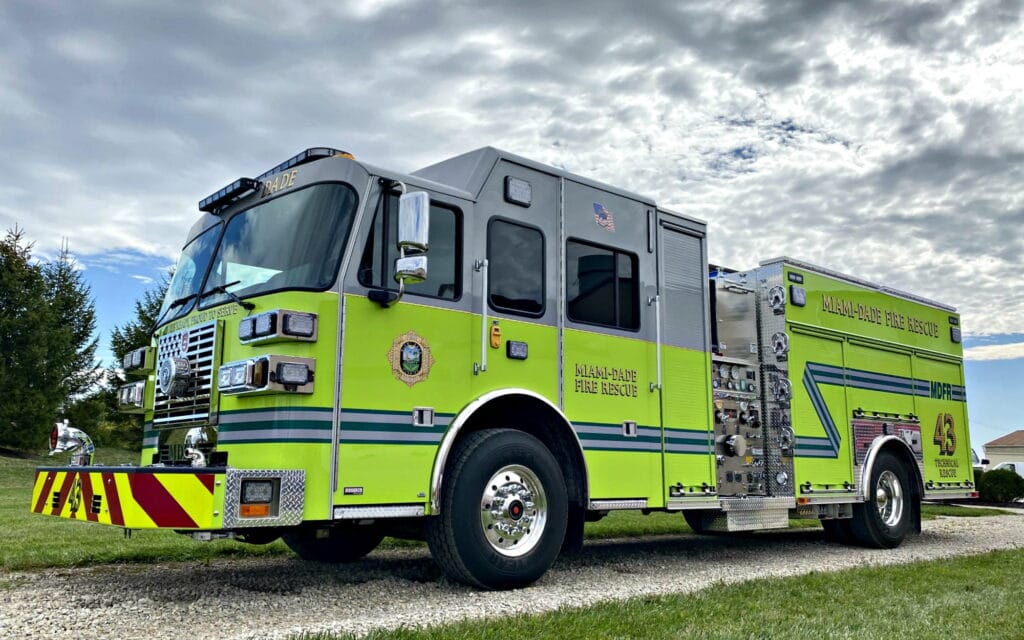

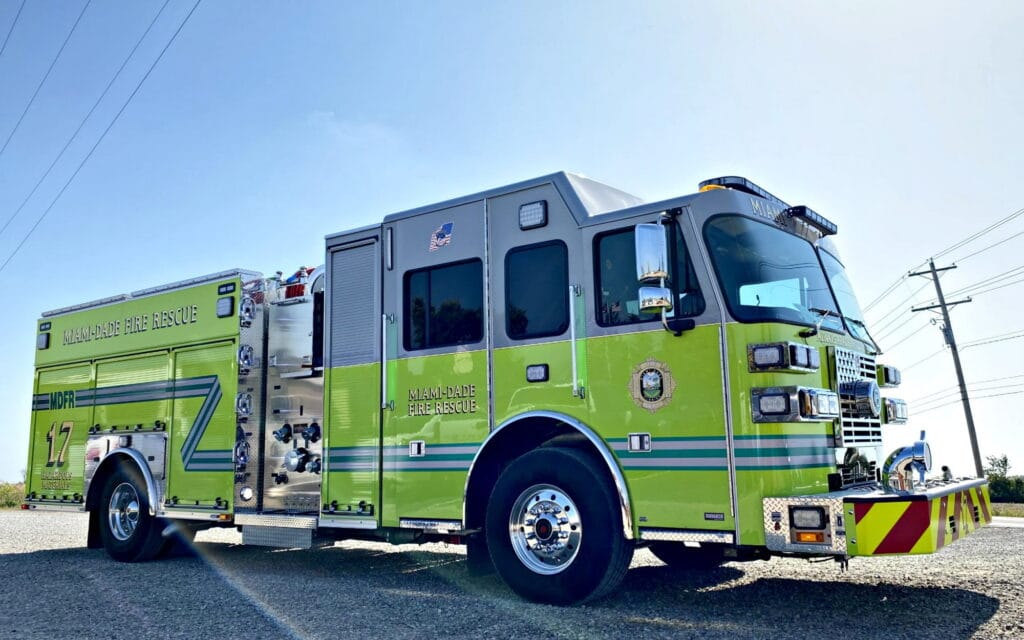

Miami-Dade Fire Rescue
Department City / State:
Miami-Dade, FL

Sutphen Corporation – HS #6629-30

Dealer – South Florida Emergency Vehicles

WHEELBASE: 215”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 34’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 15” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage
  • Discharges: (2) 2 ½” Left, (2) 3” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • 1000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: FoamPro 1600, 1.7 GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 270 cu. ft. Total Compartment Space
  • Duo-Safety (900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding)
  • Body: G9 – Alum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel Bumper Extension
  • Camera System, Brigade Backeye 360
  • Federal Q2B Siren, Grille Mount
  • Generator: Honda EU2200I Portable Generator
  • Tomar 30” Brow Light
  • Tomar 72” Scorpion Light Bar
  • Tomar 7×9 Scene Lights
  • Tomar R46 Red LED
  • Tomar TRX 10” Scene Light
  • Federal VPX Traffic Advisor
  • Triple Air Bottle Compartments (3)
