Delivery Date:
05/10/2019
Department Name:
Leipsic Fire Department
Department City / State:
Leipsic, OH

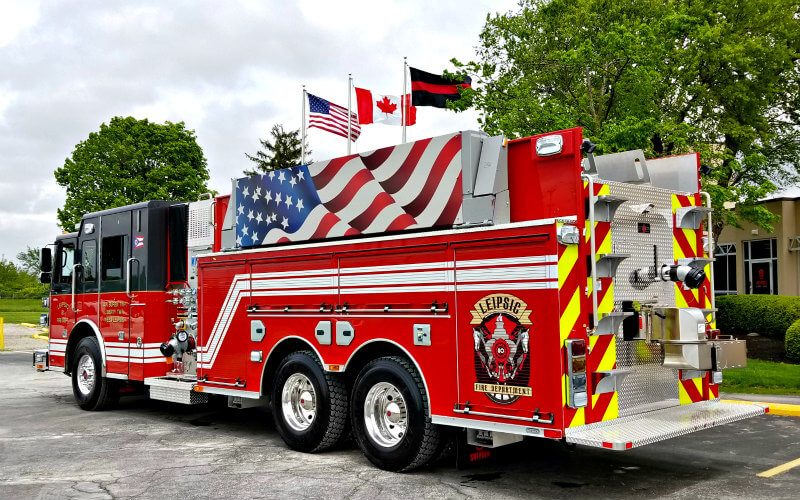

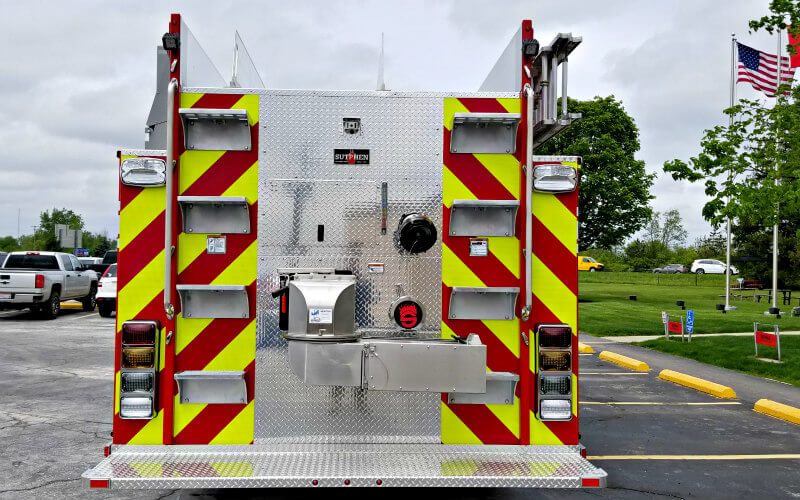

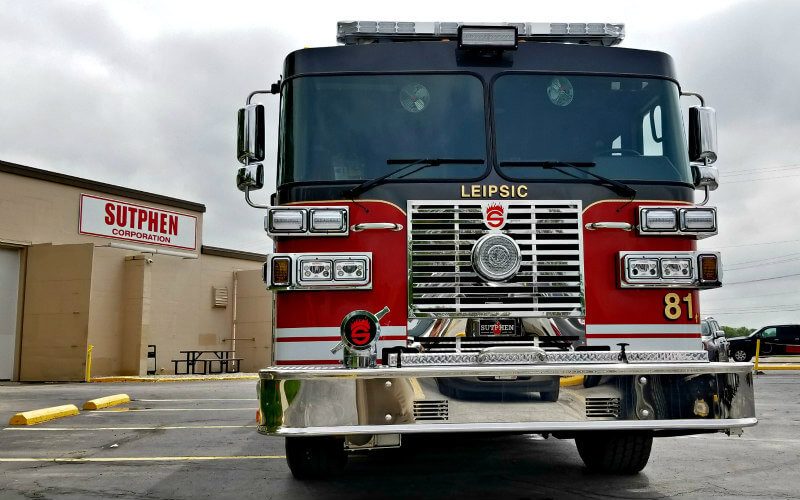

Sutphen Corporation – HS #6240

Dealer – Herb Fire Equipment

WHEEL BASE: 230”

TRAVEL HEIGHT: 11” – 5”

TRAVEL LENGTH: 37’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 48,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

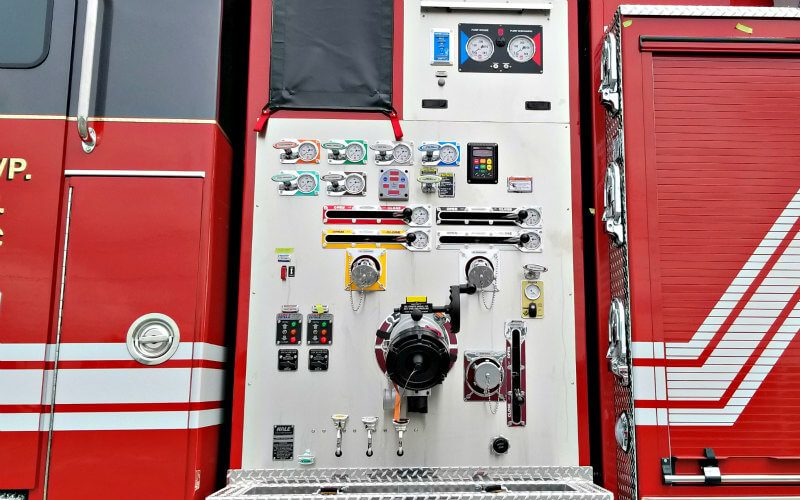

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2” Front/left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½”, 2 ½” Swivel & (2) 2” Crosslay w/ 1 ½” Swivel
  • 2500-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 163 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • 10KW Smart Power Generator
  • Hannay Electric Cord Reel, 175’
  • Federal Q2B Siren, Flush Grille Mount
  • Whelen Freedom (IV) LED Lightbar
  • Whelen M9V2R Scene Lights
  • FRC Spectra LED Brow Light
  • KL415-FS Command Light
  • Newton Swivel Dump, STS, Rear
  • Voyager 3, Camera System
