Delivery Date:
11/16/2018
Department Name:

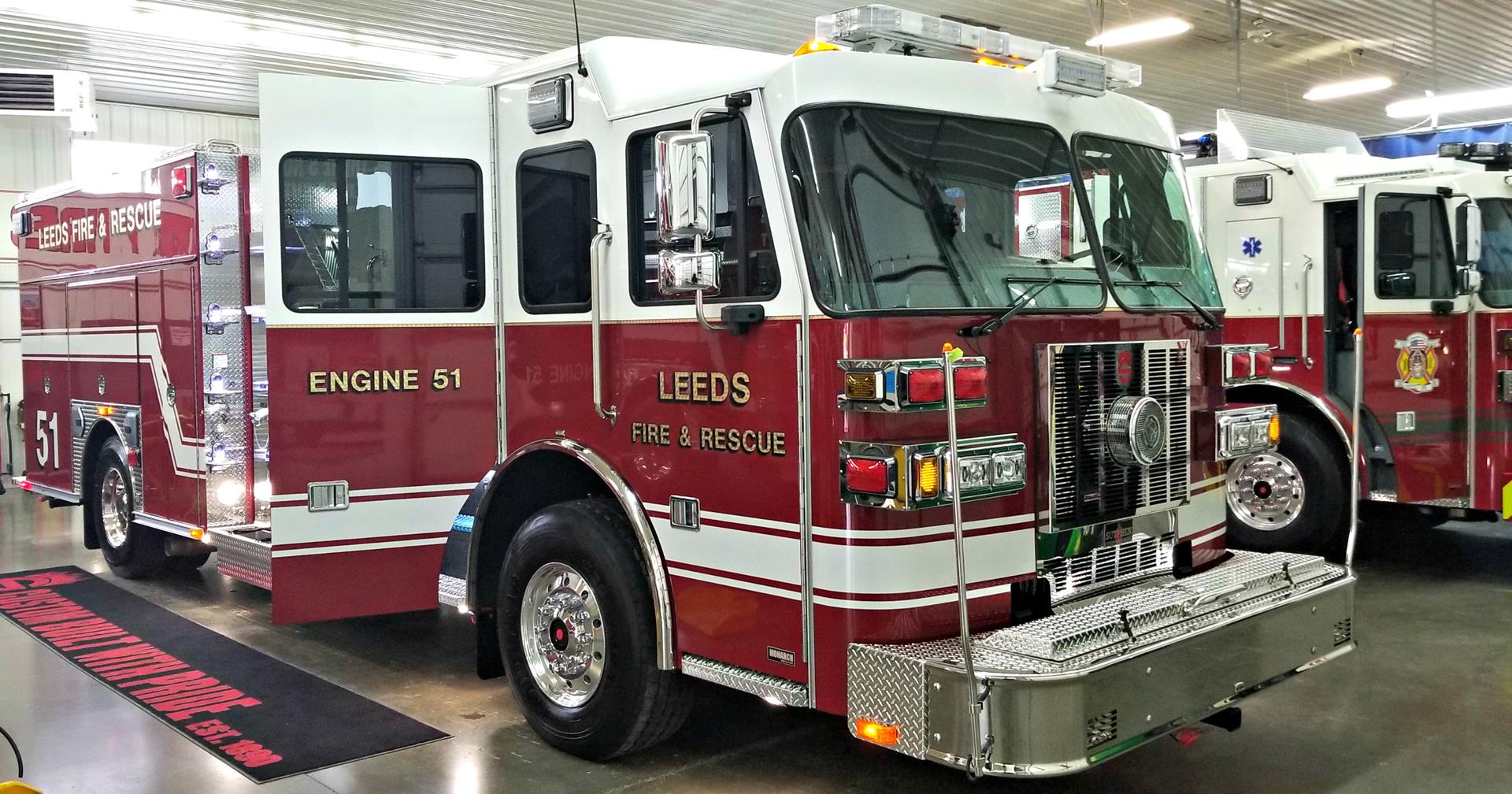

Leeds Fire Department
Department City / State:
Leeds, AL



Sutphen Corporation

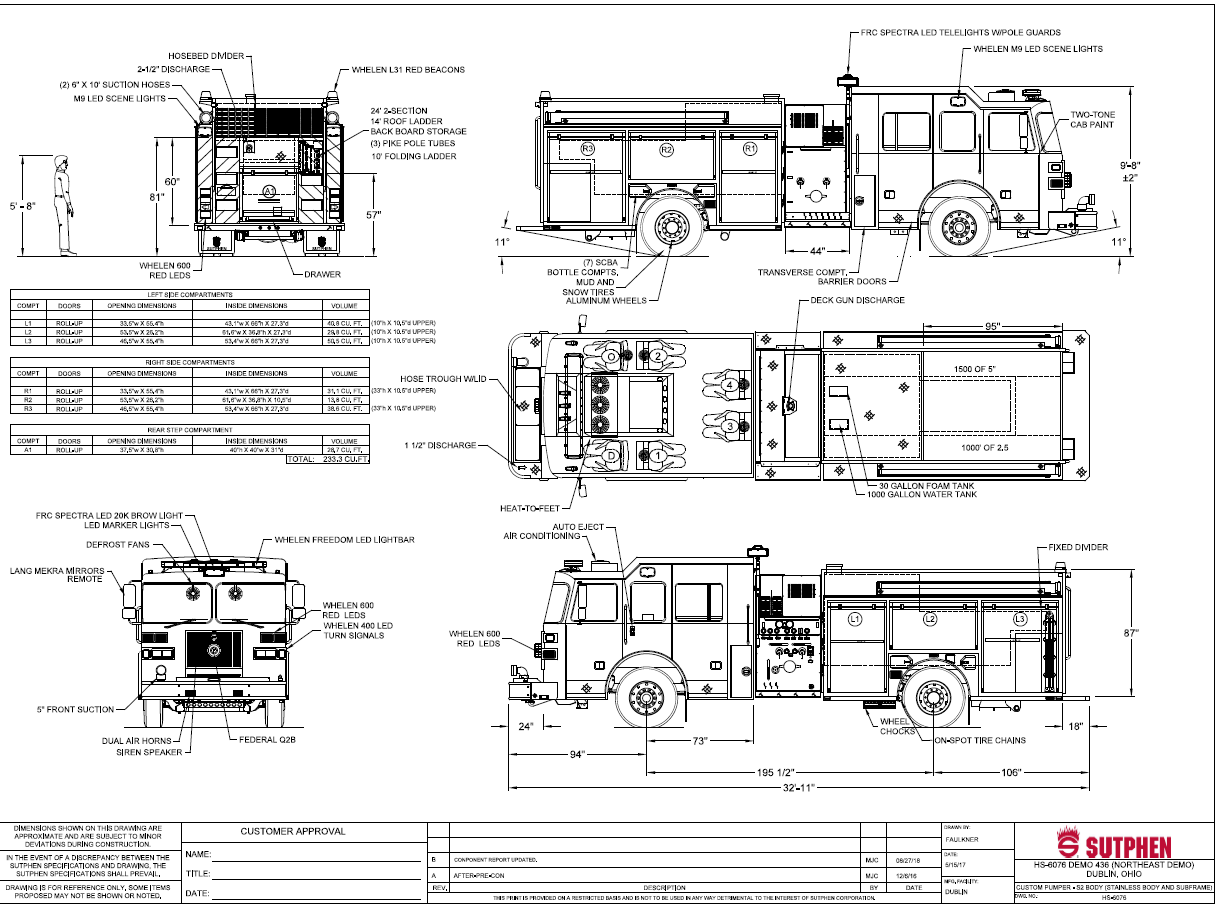

WHEEL BASE: 226”

TRAVEL HEIGHT: 10’-2”

TRAVEL LENGTH: 35’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

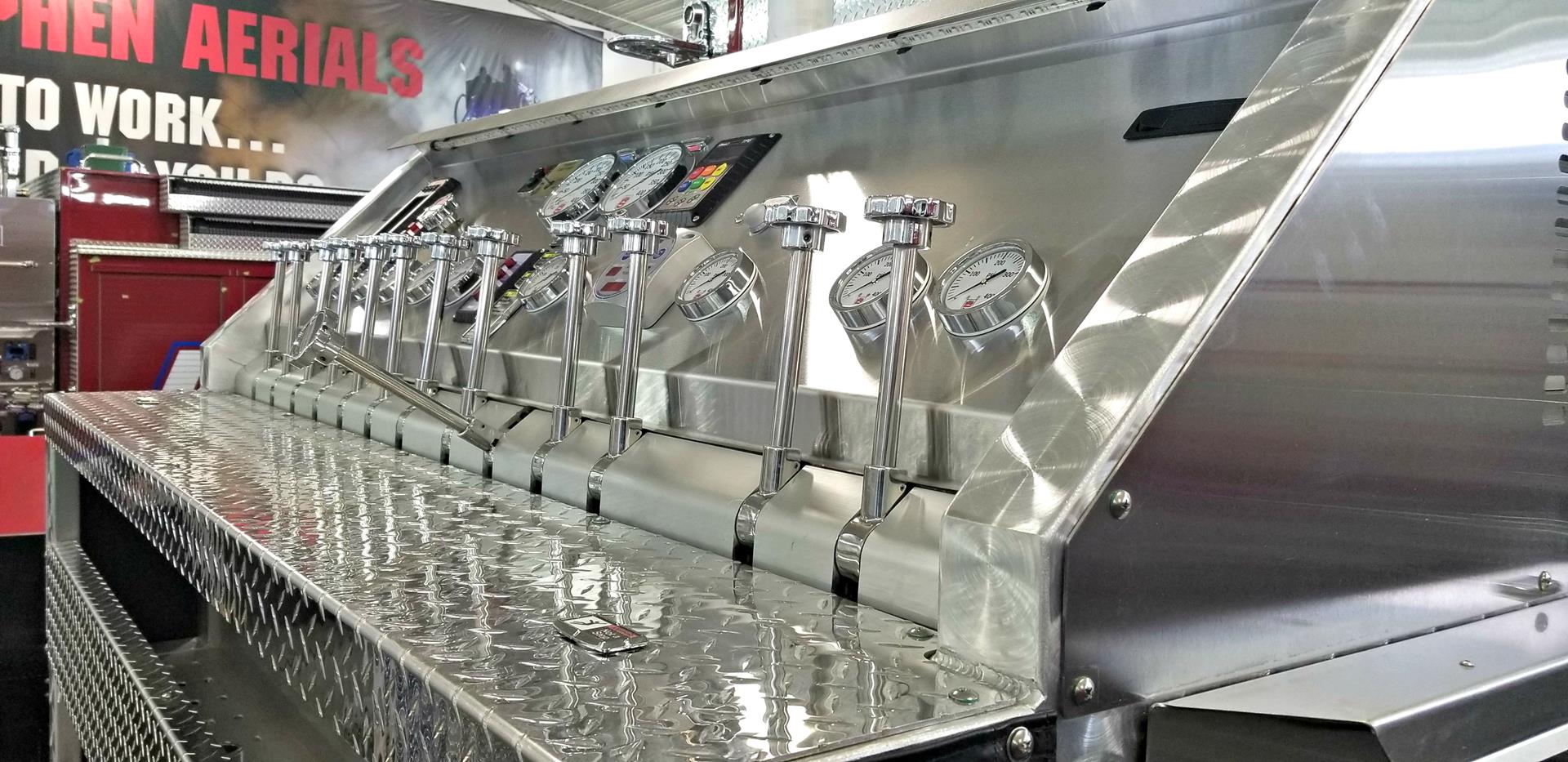

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 2” with 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale Foamlogix 2.1

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Doors
  • 9 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section and PRL-14 14’ Roof and 10’ Folding)

OPTIONAL EQUIPMENT:

  • 18” Bumper Extension
  • Camera System, Safety Vision SV-CLCD0-70
  • 8KW Smart Power Generator
  • Hannay Electric Cord Reel, 150’ (1)
  • M9V2 Warning/Scene Pair
  • Whelen Freedom LED Light Bar
