Department Name:
Lakeville Fire Company
Department City / State:
Lakeville, PA









Sutphen Corporation

WHEEL BASE: 199”

TRAVEL HEIGHT: 10’-9”

TRAVEL LENGTH: 32’-3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS 3000

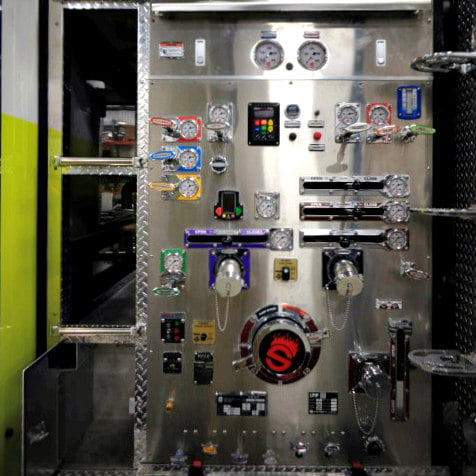

PUMP:                 Hale

  • QMAX-2000 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Right Rear, (1) 2” Front/Left of Main Hosebed, (1) 2 ½” Front Bumper, Deck Gun (1) 3”
  • 1,000-Gallon Water Tank
  • Monitor: TFT Hurricane, Manual 1250 GPM
  • Crosslays: (2) 1 ½” Speedlays with Liftout Poly Tray and (1) 2 ½” crosslay with (2) Additional trays for a total of four poly trays.

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 240 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute

OPTIONAL EQUIPMENT:

  • 24” Bumper Extension
  • FRC Inview 360 Camera System
  • Federal Q2B Siren
  • 10KW Smart Power Generator
  • Hannay Electric Cord Reel, 350’ (1)
  • Pike Pole Storage Tubes (3)
  • Whelen FN72QLED Lightbar
  • Fire Tech Brow Light 72”
