Delivery Date:
11/16/2018
Department Name:
West Palm Beach Fire Rescue
Department City / State:
West Palm Beach, FL

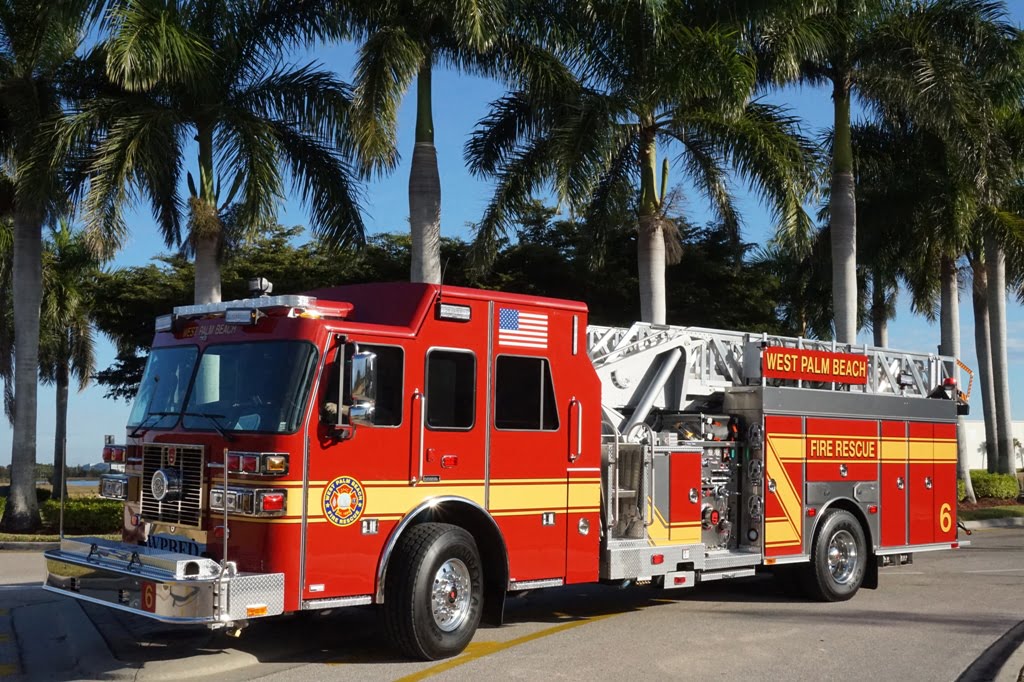

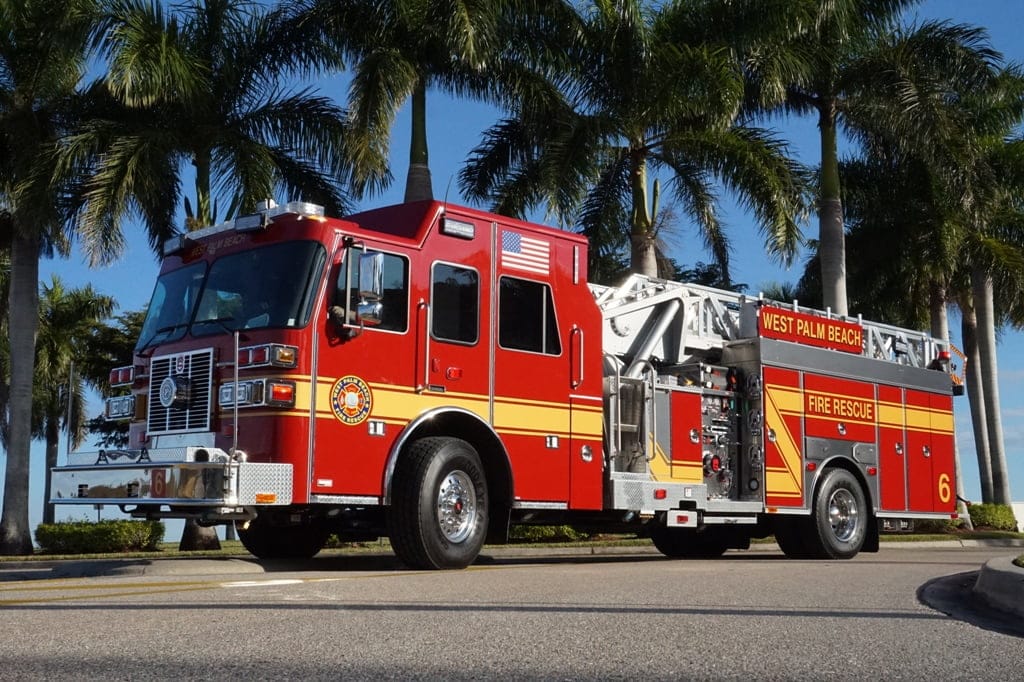

Sutphen Corporation

WHEEL BASE: 232”

TRAVEL HEIGHT: 10’-0 ½”

TRAVEL LENGTH: 41’-11 ¼”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins ISX 12, 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2” Upper Left Side Body, (1) 1 ½” Front Bumper
  • Monitor: Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
  • Crosslays: (1) 2 ½” Crosslay with 2 ½” Swivel
  • 30-Gallon Foam Tank
  • Elkhart Foam Supply System
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Left Hight/ Right Intermed/ Trans/ Stainless Top
  • Hinged Compartment Doors
  • 75 cu. ft. of Compartment Space
  • Duo-Safety Quint Ladder Compliment (85’, 16R’, 24’ 2-Section, 35’ 3-Section and 10’ Folding)

OPTIONAL EQUIPMENT:

  • 24” Bumper Extension
  • Zico Electric Ladder Rack
  • Ladder Chute in Body
  • Traffic Advisor, Whelen LED, TAL65, 36”
  • Hannay Electric Cord Reel, 100’ (1)
  • 6KW Harrison Generator
  • Intercom System, FRC ACT 2-Station
